Appendix A List of Acronyms

AAL

Application Allowlisting

BAD

Behavioral Anomaly Detection

CRS

Collaborative Robotic System

CRADA

Cooperative Research and Development Agreement

CSF

NIST Cybersecurity Framework

CSMS

Cybersecurity for Smart Manufacturing Systems

DMZ

Demilitarized Zone

EL

Engineering Laboratory

FOIA

Freedom of Information Act

ICS

Industrial Control System

IoT

Internet of Things

IT

Information Technology

LAN

Local Area Network

NCCoE

National Cybersecurity Center of Excellence

NFS

Network File Share

NIST

National Institute of Standards and Technology

NISTIR

NIST Interagency or Internal Report

OT

Operational Technology

PCS

Process Control System

PLC

Programmable Logic Controller

SCADA

Supervisory Control and Data Acquisition

SMB

Server Message Block

SP

Special Publication

SPAN

Switched Port Analyzer

SRP

Software Restriction Policies

SSH

Secure Shell

TE

Tennessee-Eastman

VDI

Virtual Desktop Interface

VLAN

Virtual Local Area Network

VPN

Virtual Private Network

Appendix B Glossary

Access Control

The process of granting or denying specific requests to: 1) obtain and use information and related information processing services; and 2) enter specific physical facilities (e.g., federal buildings, military establishments, border crossing entrances).

SOURCE: Federal Information Processing Standard (FIPS) 201; CNSSI-4009

Architecture

A highly structured specification of an acceptable approach within a framework for solving a specific problem. An architecture contains descriptions of all the components of a selected, acceptable solution while allowing certain details of specific components to be variable to satisfy related constraints (e.g., costs, local environment, user acceptability).

SOURCE: FIPS 201-2

Authentication

Verifying the identity of a user, process, or device, often as a prerequisite to allowing access to resources in an information system.

SOURCE:  FIPS 200

Authorization

The right or a permission that is granted to a system entity to access a system resource.

SOURCE:  NIST SP 800-82 Rev. 2

Backup

A copy of files and programs made to facilitate recovery if necessary.

SOURCE: NIST SP 800-34 Rev. 1

Continuous Monitoring

Maintaining ongoing awareness to support organizational risk decisions.

SOURCE: NIST SP 800-137

CRADA

Collaborative Research and Development Agreement

SOURCE: NIST SP 1800-5b, NIST SP 1800-5c

Cybersecurity

Prevention of damage to, protection of, and restoration of computers, electronic communications systems, electronic communications services, wire communication, and electronic communication, including information contained therein, to ensure its availability, integrity, authentication, confidentiality, and nonrepudiation.

SOURCE: CNSSI 4009-2015 (NSPD-54/HSPD-23)

Cyber Attack

An attack, via cyberspace, targeting an enterprise’s use of cyberspace for the purpose of disrupting, disabling, destroying, or maliciously controlling a computing environment/infrastructure; or destroying the integrity of the data or stealing controlled information.

SOURCE: NIST SP 800-30 Rev. 1

Data

A subset of information in an electronic format that allows it to be retrieved or transmitted.

SOURCE: CNSSI-4009

Data Integrity

The property that data has not been changed, destroyed, or lost in an unauthorized or accidental manner.

SOURCE: CNSSI-4009

File Integrity Checking

Software that generates, stores, and compares message digests for files to detect changes made to the files.

SOURCE: NIST SP 800-115

Firmware

Computer programs and data stored in hardware – typically in read-only memory (ROM) or programmable read-only memory (PROM) – such that the programs and data cannot be dynamically written or modified during execution of the programs.

SOURCE: CNSSI 4009-2015

Industrial Control Systems

An information system used to control industrial processes such as manufacturing, product handling, production, and distribution.

SOURCE: NIST SP 800-30 Rev. 1

Information Security

The protection of information and information systems from unauthorized access, use, disclosure, disruption, modification, or destruction in order to provide confidentiality, integrity, and availability.

SOURCE: FIPS 199 (44 U.S.C., Sec. 3542)

Information System

A discrete set of information resources organized for the collection, processing, maintenance, use, sharing, dissemination, or disposition of information.

SOURCE: FIPS 200 (44 U.S.C., Sec. 3502)

Information Technology

Any equipment or interconnected system or subsystem of equipment that is used in the automatic acquisition, storage, manipulation, management, movement, control, display, switching, interchange, transmission, or reception of data or information by the executive agency.

SOURCE: FIPS 200

Log

A record of the events occurring within an organization’s systems and networks.

SOURCE: NIST SP 800-92

Malware

A program that is inserted into a system, usually covertly, with the intent of compromising the confidentiality, integrity, or availability of the victim’s data, applications, or operating system.

SOURCE: NIST SP 800-111

Network Traffic

Computer network communications that are carried over wired or wireless networks between hosts.

SOURCE: NIST SP 800-86

Operational Technology

Programmable systems or devices that interact with the physical environment (or manage devices that interact with the physical environment).

SOURCE: NIST SP 800-37 Rev. 2

Privacy

Assurance that the confidentiality of, and access to, certain information about an entity is protected.

SOURCE: NIST SP 800-130

Remote Access

Access to an organizational information system by a user (or an information system) communicating through an external, non-organization-controlled network (e.g., the Internet).

SOURCE: NIST SP 800-128 under Remote Access from NIST SP 800-53

Risk

The level of impact on organizational operations (including mission, functions, image, or reputation), organizational assets, or individuals resulting from the operation of an information system given the potential impact of a threat and the likelihood of that threat occurring.

SOURCE: FIPS 200

Risk Assessment

The process of identifying the risks to system security and determining the probability of occurrence, the resulting impact, and additional safeguards that would mitigate this impact. Part of Risk Management and synonymous with Risk Analysis.

SOURCE: NIST SP 800-63-2

Risk Management Framework

The Risk Management Framework (RMF), presented in NIST SP 800-37, provides a disciplined and structured process that integrates information security and risk management activities into the system development life cycle.

SOURCE: NIST SP 800-82 Rev. 2 (NIST SP 800-37)

Security Control

A protection measure for a system

SOURCE: NIST SP 800-123

Virtual Machine

Software that allows a single host to run one or more guest operating systems

SOURCE: NIST SP 800-115

Appendix C References

B1

C. Singleton et al., X-Force Threat Intelligence Index 2021, IBM, February 2021, https://www.ibm.com/security/data-breach/threat-intelligence

B2

A Sedgewick et al., Guide to Application Whitelisting, NIST SP 800-167, NIST, Oct. 2015.  Available: http://dx.doi.org/10.6028/NIST.SP.800-167.

B3

Department of Homeland Security, Critical Manufacturing Sector Cybersecurity Framework Implementation Guidance, 2015. Available: https://www.cisa.gov/uscert/sites/default/files/c3vp/framework_guidance/critical-manufacturing-framework-implementation-guide-2015-508.pdf.

B4

Executive Order no. 13636, Improving Critical Infrastructure Cybersecurity, DCPD201300091, Feb. 12, 2013. Available: https://obamawhitehouse.archives.gov/the-press-office/2013/02/12/executive-order-improving-critical-infrastructure-cybersecurity.

B5

NIST, Framework for Improving Critical Infrastructure Cybersecurity, V1.1 April 16, 2018. Available: https://doi.org/10.6028/NIST.CSWP.04162018.

B6

J. McCarthy et al., Securing Manufacturing Industrial Control Systems: Behavioral Anomaly Detection, NIST Interagency Report (NISTIR) 8219, NIST, Nov. 2018. Available: https://www.nccoe.nist.gov/sites/default/files/library/mf-ics-nistir-8219.pdf.

B7

K. Stouffer et al., Cybersecurity Framework Manufacturing Profile, NIST Internal Report 8183, NIST, May 2017. Available: https://nvlpubs.nist.gov/nistpubs/ir/2017/NIST.IR.8183.pdf.

B8

R. Candell et al., An Industrial Control System Cybersecurity Performance Testbed, NISTIR 8089, NIST, Nov. 2015. Available: http://nvlpubs.nist.gov/nistpubs/ir/2015/NIST.IR.8089.pdf.

B9

Security and Privacy Controls for Federal Information Systems and Organizations, NIST SP 800-53 Revision 5, NIST, Apr. 2013. Available: https://doi.org/10.6028/NIST.SP.800-53r5.

B10

W. Newhouse et al., National Initiative for Cybersecurity Education (NICE) Cybersecurity Workforce Framework, NIST SP 800-181, Aug. 2017. Available: http://nvlpubs.nist.gov/nistpubs/SpecialPublications/NIST.SP.800-181.pdf.

B11

J. Cawthra et al., Data Integrity: Identifying and Protecting Assets Against Ransomware and Other Destructive Events, NIST Special Publication 1800-25 Dec. 2020, https://doi.org/10.6028/NIST.SP.1800-25.

B12

Celia Paulsen, Robert Byers, Glossary of Key Information Security Terms NISTIR 7298, https://nvlpubs.nist.gov/nistpubs/ir/2019/NIST.IR.7298r3.pdf.

B13

U.S.-Canada Power Systems Outage Task Force, Final Report on the August 14, 2003 Blackout in the United States and Canada: Causes and Recommendations. Available: https://www.energy.gov/sites/default/files/oeprod/Docum entsandMedia/Outage_Task_Force_-_DRAFT_Report_on_Implementation.pdf

B14

K. Stouffer et al., Guide to Industrial Control Systems (ICS) Security, NIST SP 800-82 Revision 2, NIST, June 2015, Available: https://nvlpubs.nist.gov/nistpubs/SpecialPublications/NIST.SP.800-82r2.pdf

B15

J. J. Downs and E. F. Vogel, “A Plant-wide Industrial Problem Process,” Comput. Chem. Eng., vol. 17, no. 3, 1993, pp. 245–255

Appendix D Scenario Execution Results

The following section provides details regarding the execution and results from each scenario. Details such as usernames, filenames, IP addresses, etc. are specific to the NCCoE lab environment and are provided for reference only.

D.1 Executing Scenario 1: Protect Host from Malware via USB

An authorized user inserts a USB storage device containing a malware file (1.exe) into a system in the manufacturing environment (e.g., an engineering workstation). After insertion, the malware file (1.exe) attempts to execute. The expected outcome is that the application allowlisting technology blocks the execution of the file.

D.1.1 Build 1

D.1.1.1 Configuration

  • Application Allowlisting: Carbon Black

    • Agent installed on an HMI Workstation and configured to communicate to the Carbon Black Server.

D.1.1.2 Test Results

Carbon Black successfully detects and blocks the malware (1.exe) from running as shown in Figure D-1. Figure D-2 shows Carbon Black’s server log. The log provides more detail on the activity detected by Carbon Black.

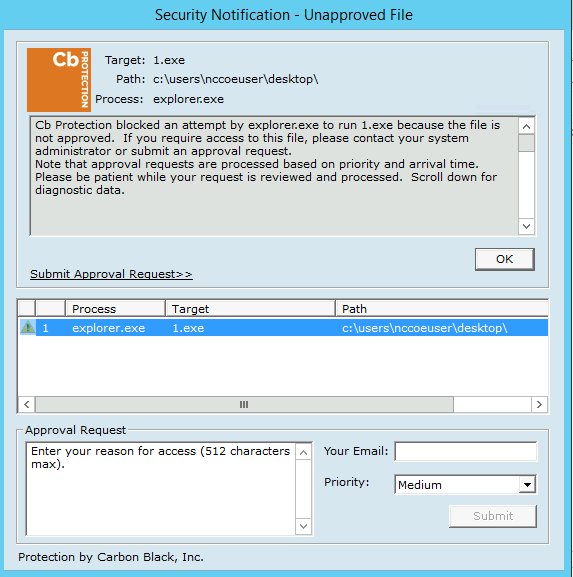

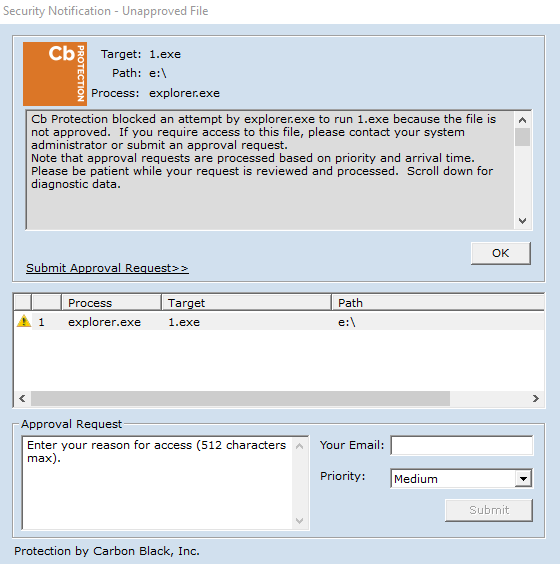

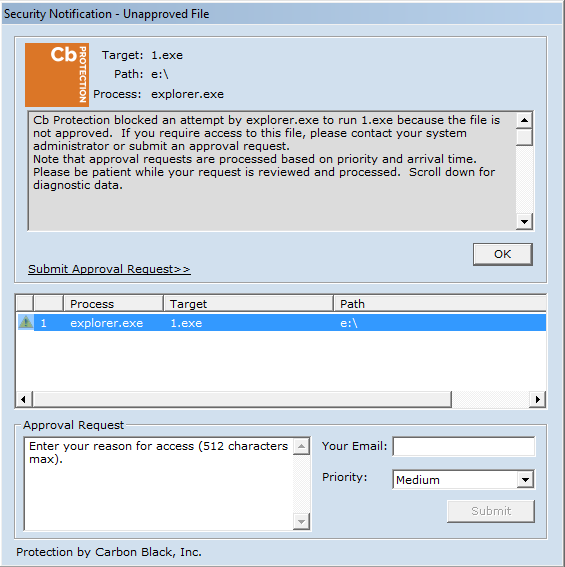

Figure D-1 An Alert from Carbon Black Showing that Malware (1.exe) was Blocked from Executing

Graphical user interface, application, Word Description automatically generated

Figure D-2: Carbon Black’s Server Provides Additional Details and Logs of the Event

Graphical user interface, text, email Description automatically generated

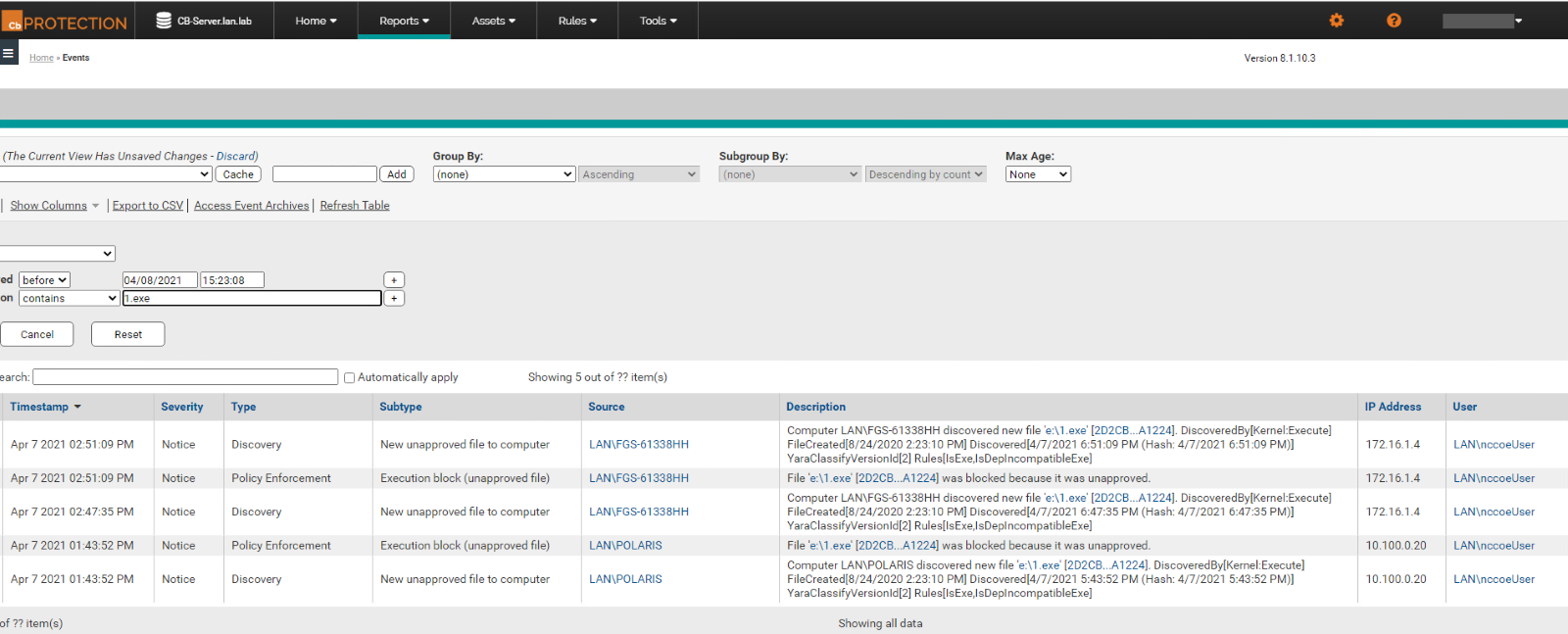

Figure D-3 Carbon Black’s Server Log of the Event

Graphical user interface, text, application Description automatically generated

D.1.2 Build 2

D.1.2.1 Configuration

  • Application Allowlisting: Windows SRP

    • Allowlisting policies are applied to HMI Workstation.

D.1.2.2 Test Results

The execution of 1.exe is blocked successfully when Windows SRP is enforced as shown in Figure D-4.

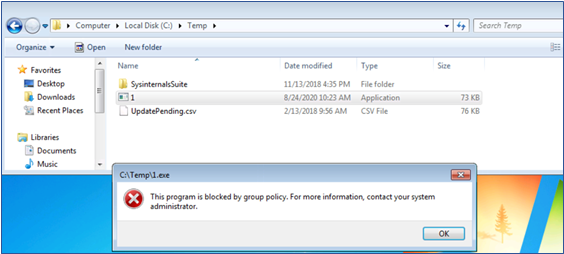

Figure D-4 Windows 7 Alert as a Result of Windows SRP Blocking the Execution of 1.exe

Graphical user interface, text, application, email Description automatically generated

D.1.3 Build 3

D.1.3.1 Configuration

  • Application Allowlisting: Windows SRP

    • Allowlisting policies are applied to Engineering Workstation.

D.1.3.2 Test Results

For Build 3, Windows SRP application allowlisting is enabled in the Collaborative Robotics environment. Figure D-5 shows that the executable is blocked on the CRS workstation.

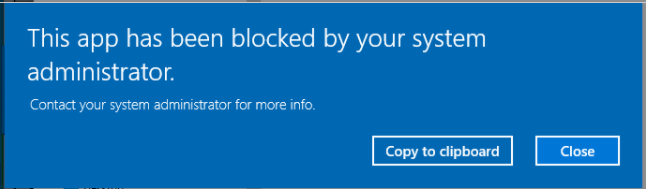

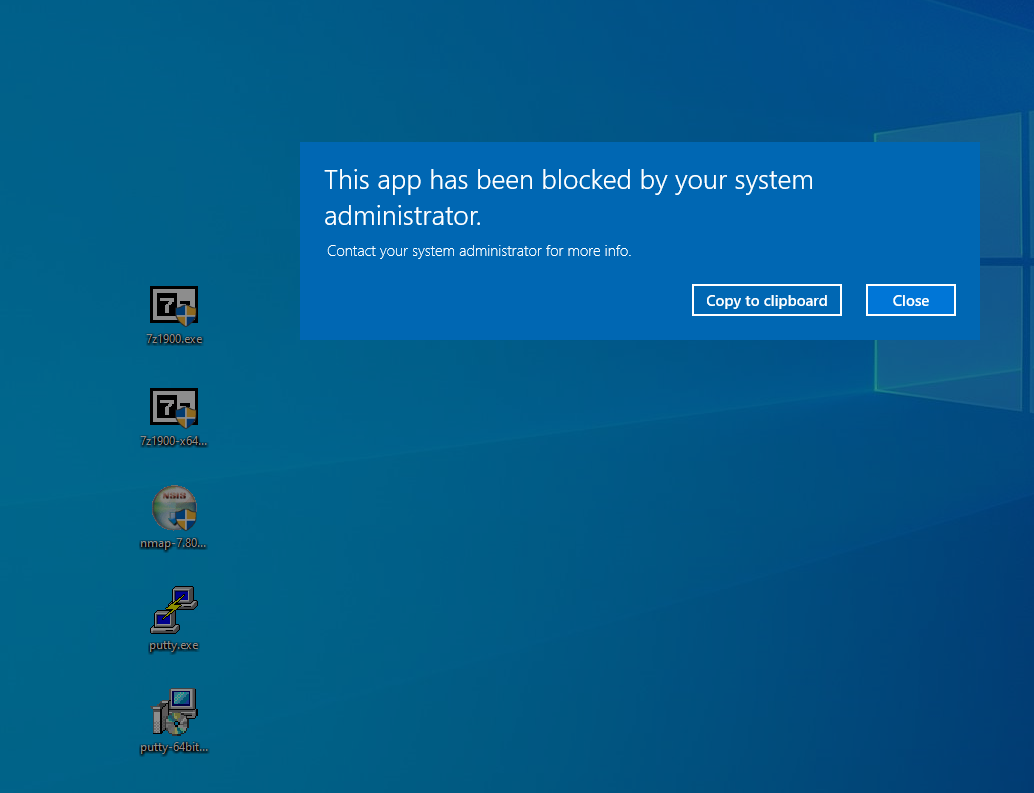

Figure D-5 Windows 10 Alert as a Result of Windows SRP Blocking the Execution of 1.exe

Graphical user interface, application Description automatically generated

D.1.4 Build 4

D.1.4.1 Configuration

  • Application Allowlisting : Carbon Black

    • Agent installed on Engineering Workstation and configured to communicate to the Carbon Black Server.

D.1.4.2 Test Results

Carbon Black successfully detects and blocks the malicious file as shown by the Carbon Black notification in Figure D-6.

Figure D-6 Carbon Black Blocks the Execution of 1.exe for Build 4

Graphical user interface, application Description automatically generated

D.2 Executing Scenario 2: Protect Host from Malware via Network Vector

An attacker who has already gained access to the corporate network attempts to pivot into the ICS environment through the DMZ. From a system in the DMZ, the attacker scans for vulnerable systems in the Testbed LAN environment to continue pivoting toward the ICS environments. In an attempt to establish a persistent connection into the ICS environment, the malicious file (1.exe) is copied to a system in the Testbed LAN environment and executed. The expected outcome is that the malicious file is blocked by the application allowlisting tool, and the RDP and scanning network activity is observed by the behavioral anomaly detection tool.

D.2.1 Build 1

D.2.1.1 Configuration

  • Application Allowlisting: Carbon Black

    • Agent installed on systems in the DMZ, Testbed LAN, and PCS VLAN 1 and 2 and configured to communicate to the Carbon Black Server.

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.2.1.2 Test Results

Abnormal network traffic is detected by Tenable.ot as shown in Figure D-7. Figure D-8 shows the initial RDP connection between an external system and the DMZ system, and Figure D-9 provides more detail of the session activity. Figure D-10 shows that Tenable.ot detected the VNC connection between the DMZ and the Testbed LAN. Figure D-11 shows a detected ports scan performed by the DMZ system target at a system in the Testbed LAN. Tenable.ot detected the RDP scan from the DMZ to the NESSUS VM in the Testbed LAN, as shown in Figure D-12, and Figure D-13 provides more details on that detected event. The execution of the malware (1.exe) is blocked by Carbon Black agent as shown in Figure D-14.

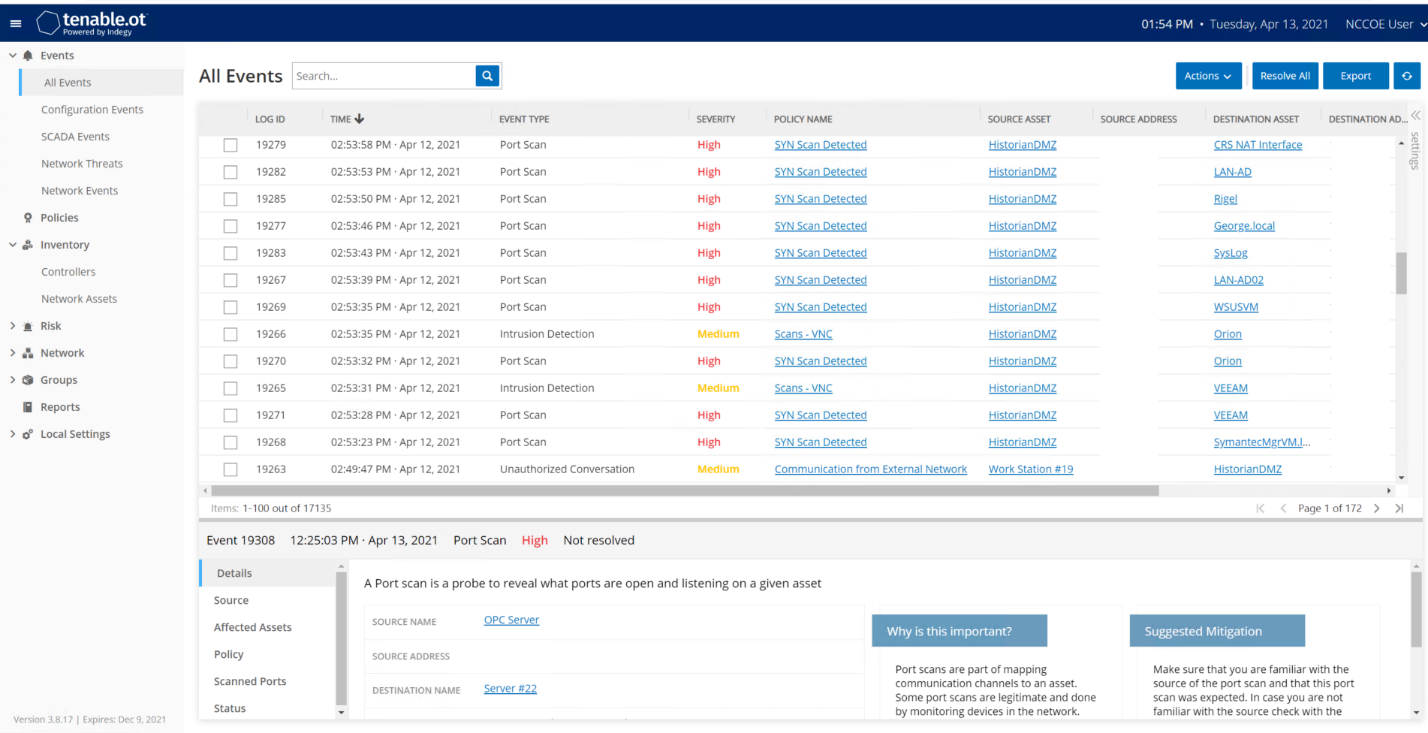

Figure D-7 Tenable.ot Dashboard Showing the Events that were Detected

../_images/volB-image18.png

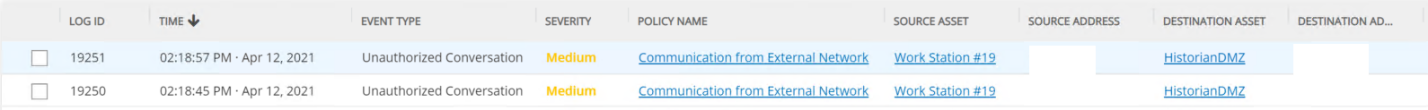

Figure D-8 Detected RDP Session Activity from External System to DMZ System

../_images/volB-image19.png

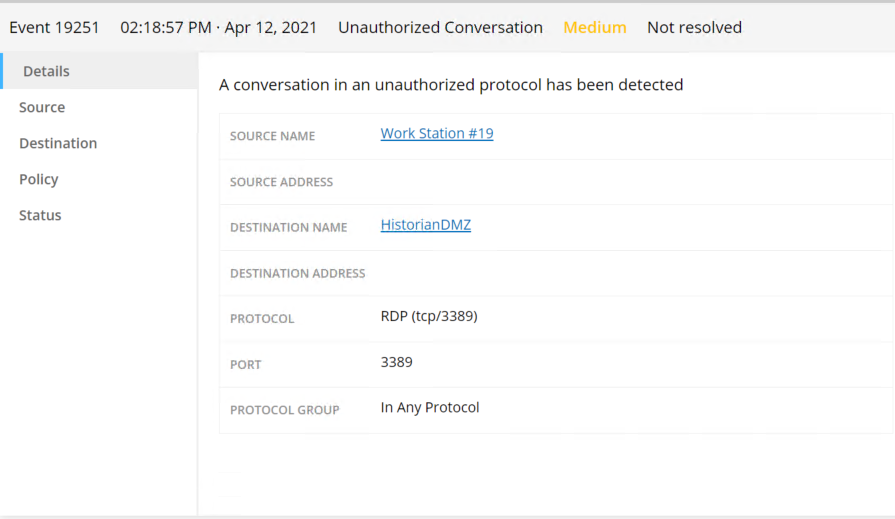

Figure D-9 Event Detection Detail for the RDP Connection from the External System to the Historian in the DMZ

Graphical user interface, text, application, email Description automatically generated

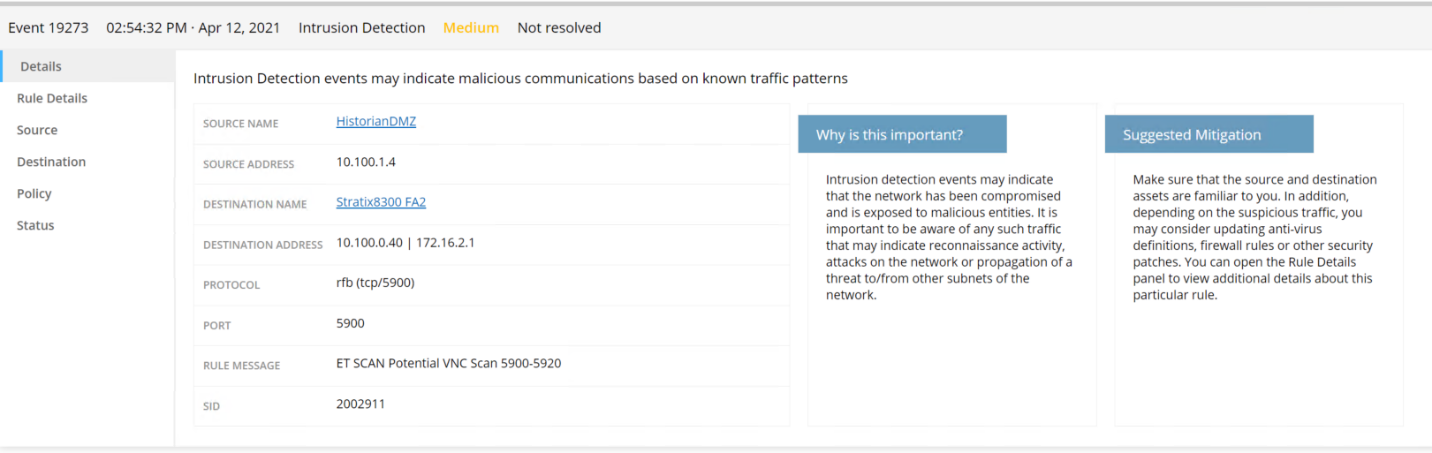

Figure D-10 Tenable.ot Detected VNC Connection Between the DMZ and the Testbed LAN

Graphical user interface, text, application Description automatically generated

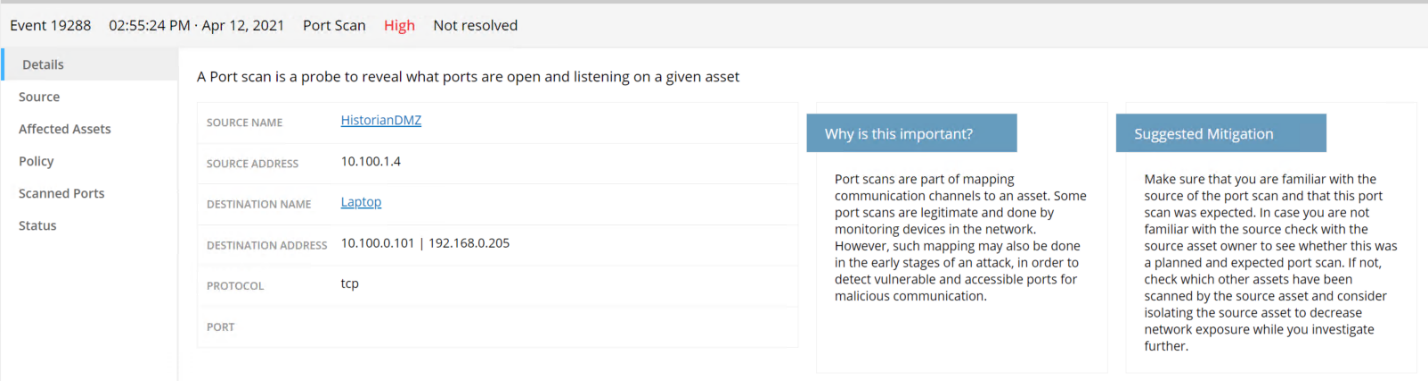

Figure D-11 Tenable.ot Event Detail for a Detected Port Scan from a DMZ System Targeting a System in the Testbed LAN

Graphical user interface, text, application Description automatically generated

Figure D-12 Detected RDP from a DMZ system to a Testbed LAN system

../_images/volB-image23.png

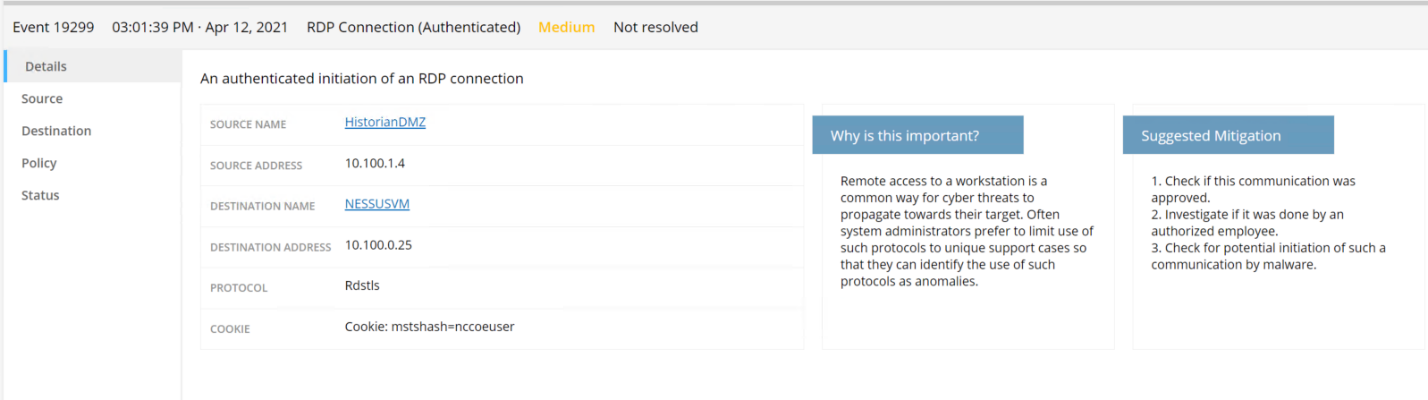

Figure D-13 Tenable.ot Event Detail Showing the RDP Connection Between the Historian in the DMZ to a Workstation in the Testbed LAN

Graphical user interface, text, email Description automatically generated

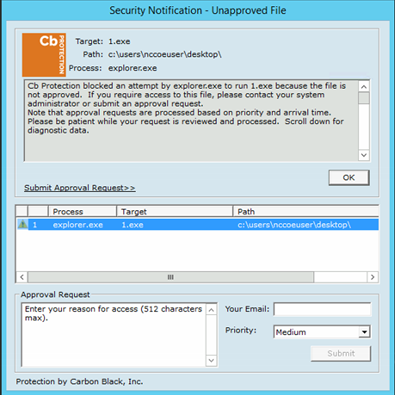

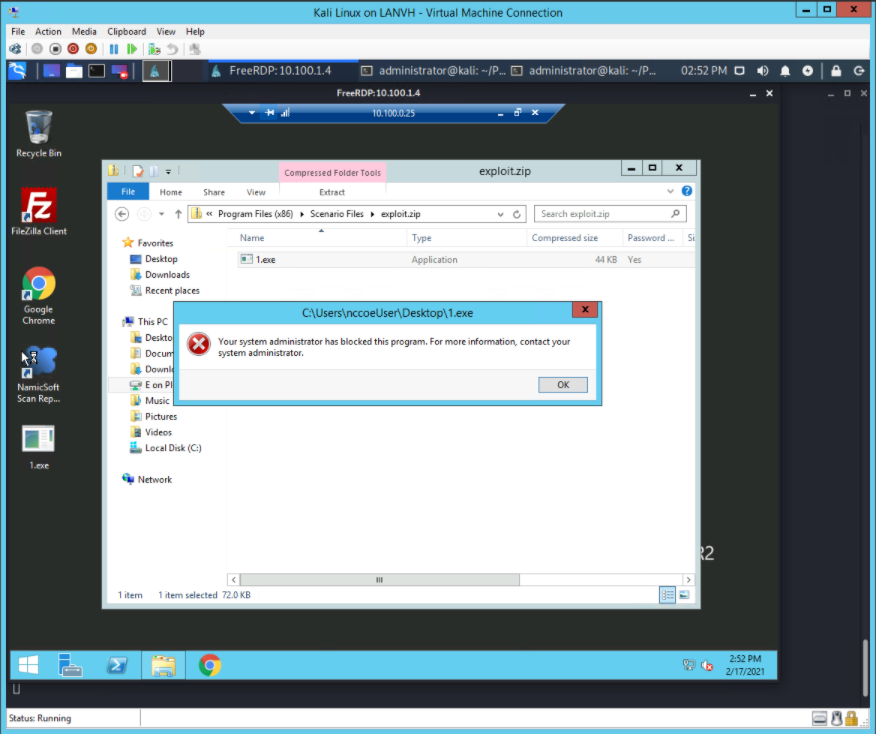

Figure D-14 Attempt to Execute 1.exe Failed

Graphical user interface, text, application, Word Description automatically generated

D.2.2 Build 2

D.2.2.1 Configuration

  • Application Allowlisting: Windows SRP

    • Allowlisting policies are applied to systems in the DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.2.2.2 Test Results

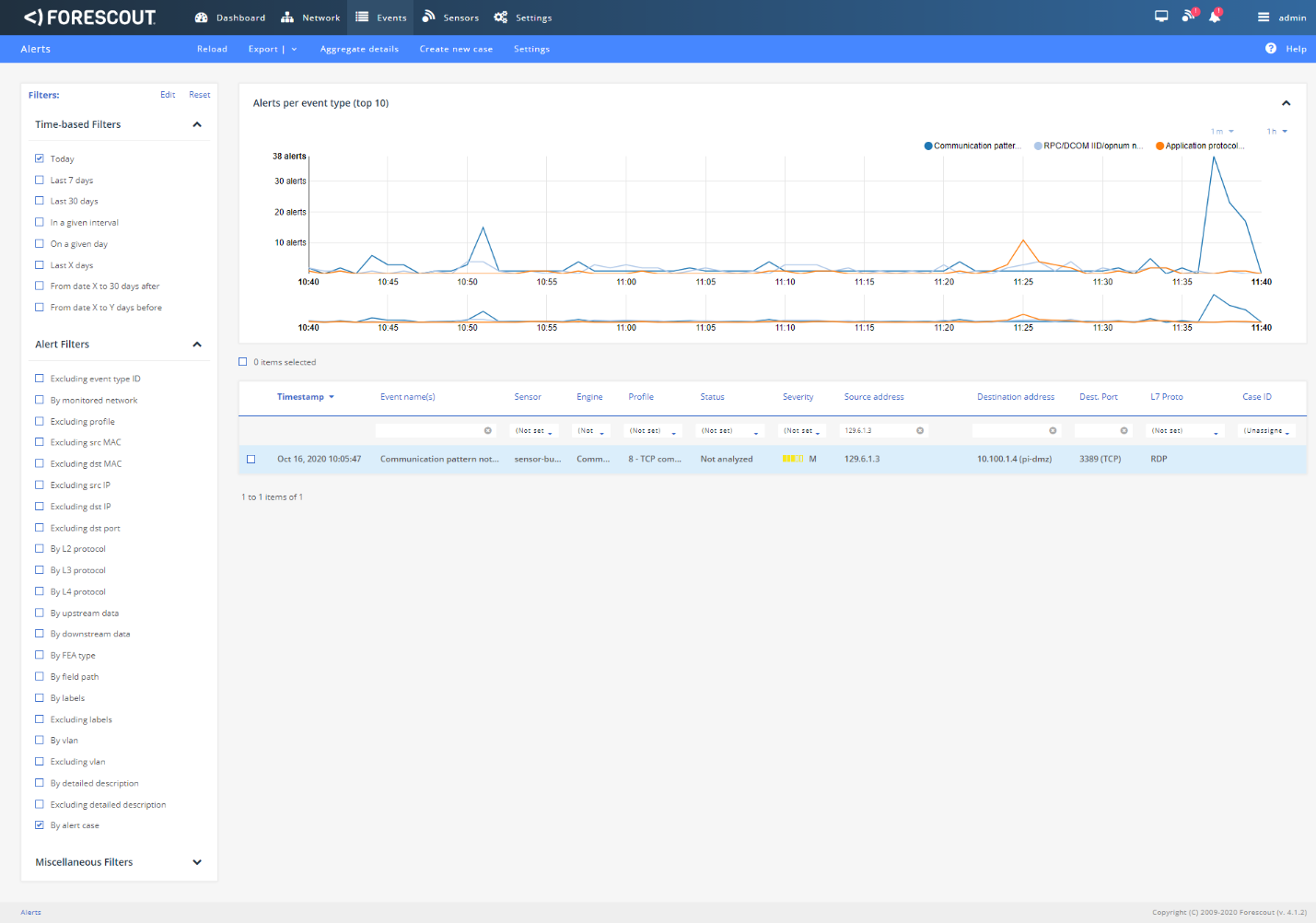

Figure D-15 shows the RDP alert for connection into the DMZ, while Figure D-16 shows the details of the alert. Figure D-17 shows a collection of suspicious activity detected by Forescout eyeInspect when scanning and an RDP connection is executed. Figure D-18 and Figure D-19 show details of a port scanning alert and the second RDP connection into the manufacturing environment, respectively. The attempt to execute malware (1.exe) is blocked by Windows SRP as shown in Figure D-20.

Figure D-15 Alert Dashboard Showing Detection of an RDP Session

Graphical user interface, application Description automatically generated

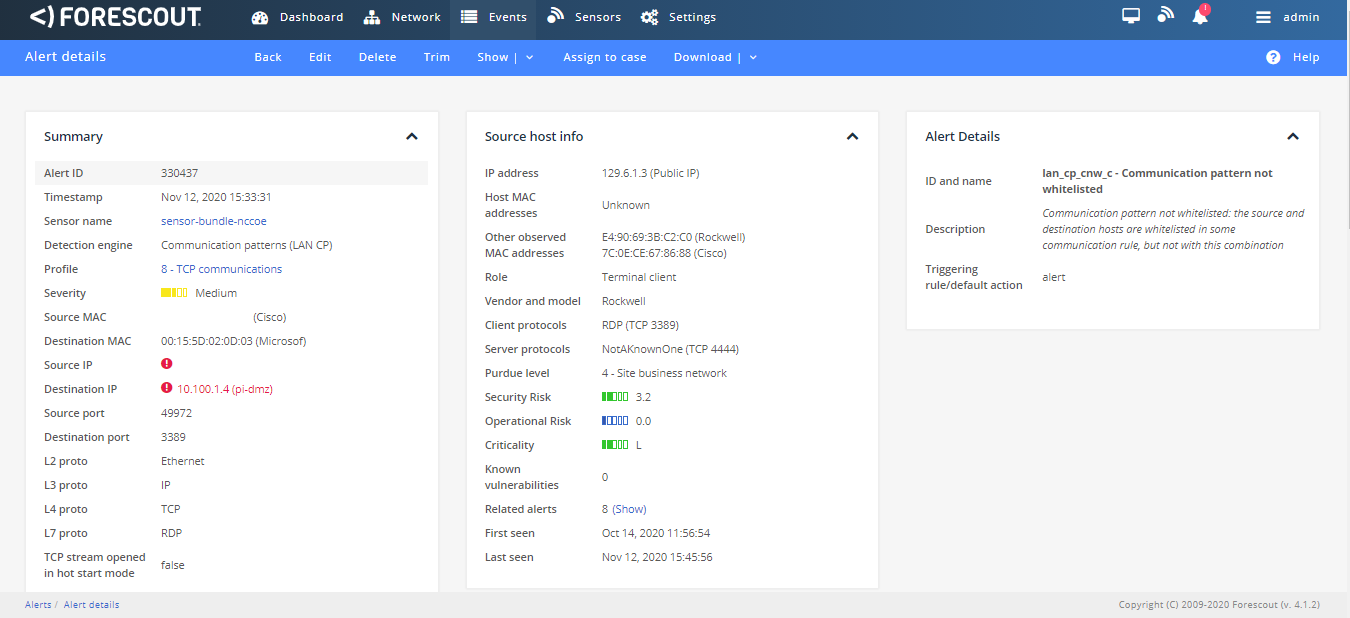

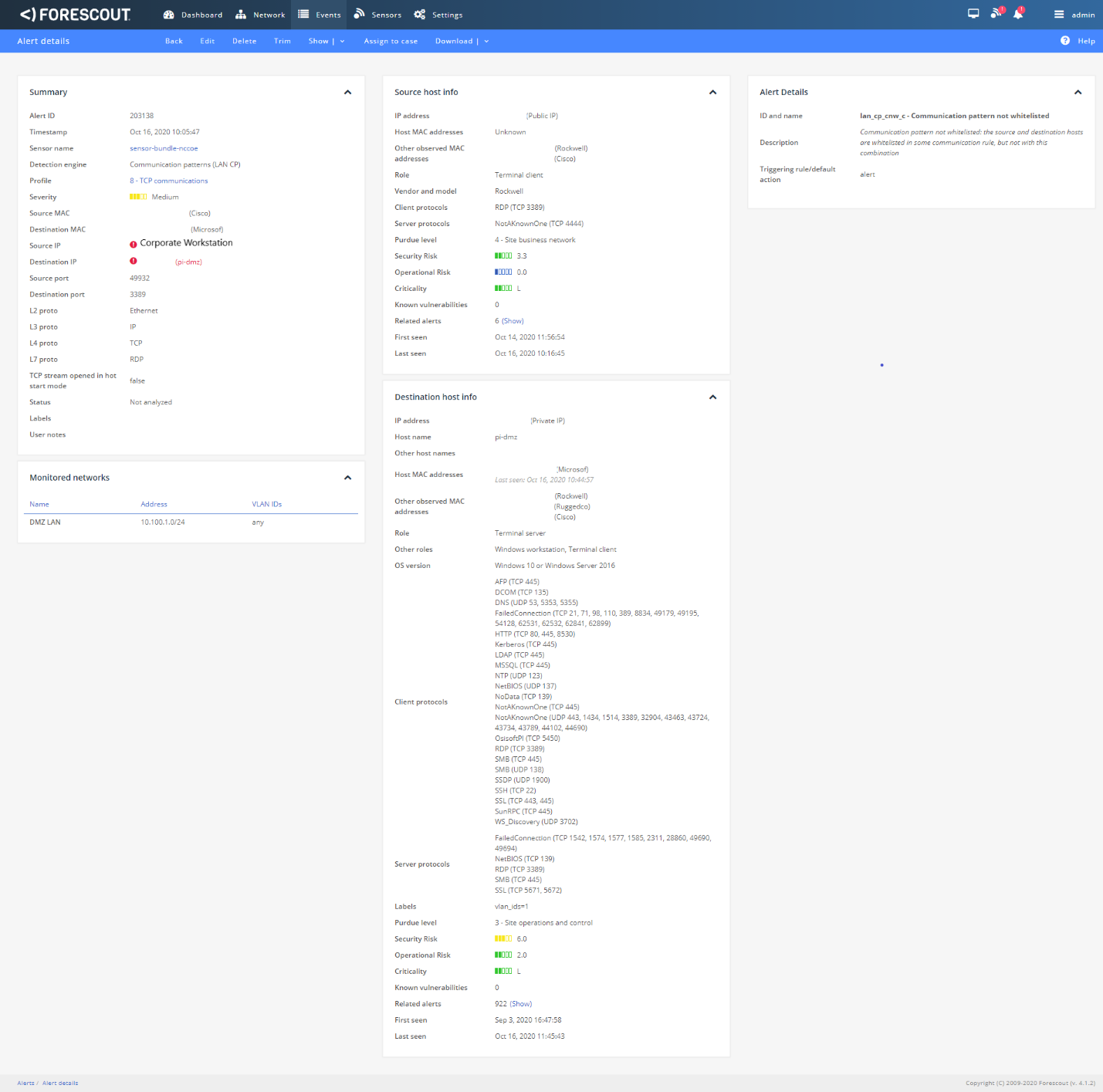

Figure D-16 Details of the Detected RDP Session Activity from an External System to DMZ System

Graphical user interface, application Description automatically generated

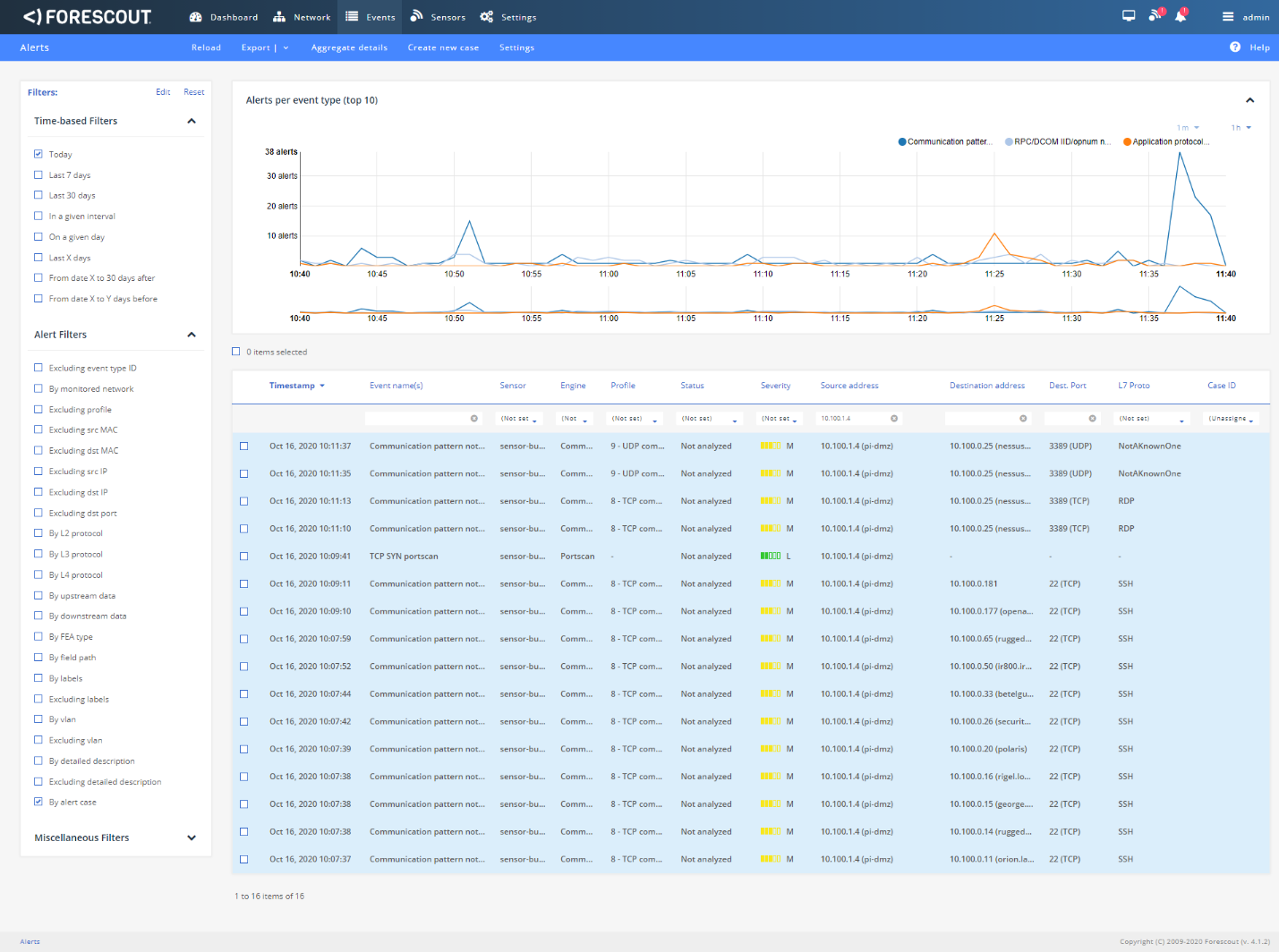

Figure D-17 Detection of Scanning Traffic and RDP Connection into Manufacturing Environment

A screenshot of a computer Description automatically generated with medium confidence

Figure D-18 Details of One of the Port Scan Alerts

Graphical user interface, application, Word Description automatically generated

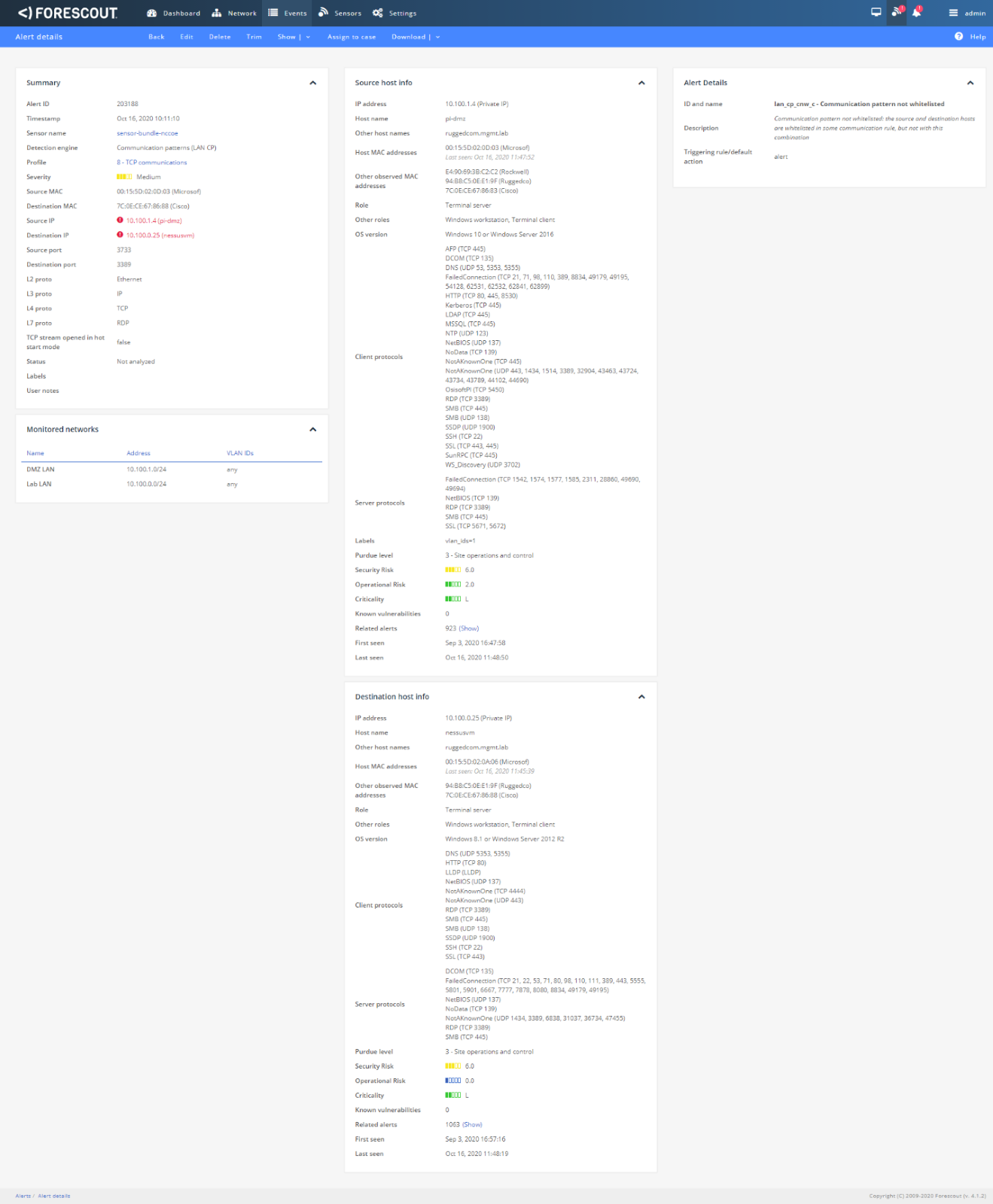

Figure D-19 Details of Alert for RDP Connection into Manufacturing Environment

Graphical user interface, application, Word Description automatically generated

Figure D-20 Dialog Message Showing 1.exe was Blocked from Executing

A picture containing text, monitor, screenshot Description automatically generated

D.2.3 Build 3

D.2.3.1 Configuration

  • Application Allowlisting: Windows SRP

    • Allowlisting policies are applied to systems in the DMZ, Testbed LAN, and Supervisory LAN

  • Behavior Anomaly Detection: Dragos

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.2.3.2 Test Results

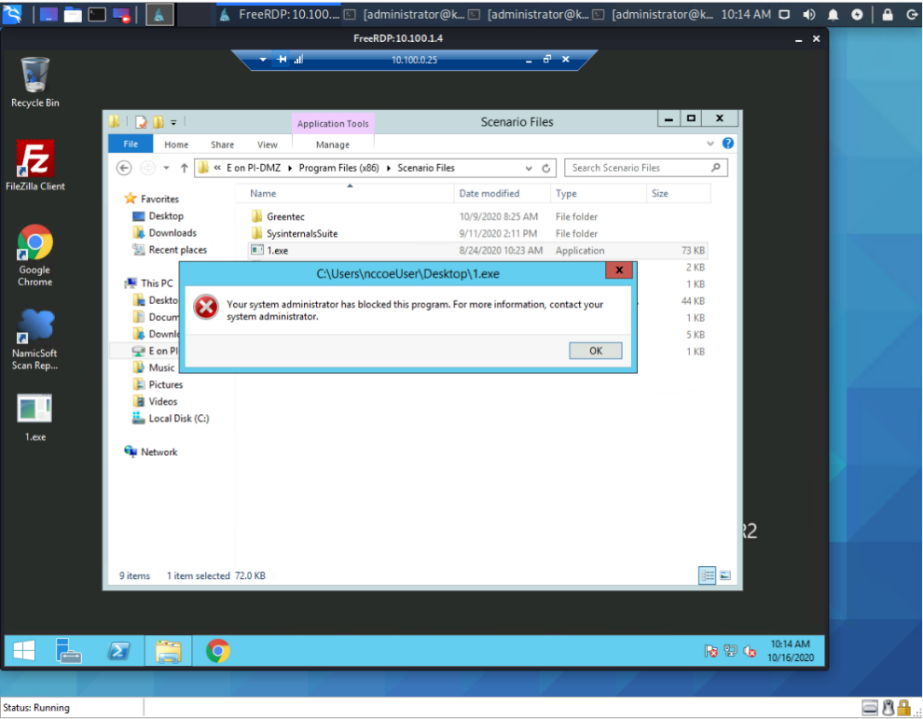

Windows SRP blocks the attempted execution of 1.exe (Figure D-21). Figure D-22 shows the alerts generated by Dragos when it detected the remote connection to the target. Figure D-23 depicts the detected RDP session from an external system to the DMZ system. Figure D-24 depicts network scanning alert details. Figure D-25 depicts the RDP session from a DMZ system to the Testbed LAN system.

Figure D-21 Windows SRP blocked 1.exe From Executing

A picture containing text, monitor, screenshot, computer Description automatically generated

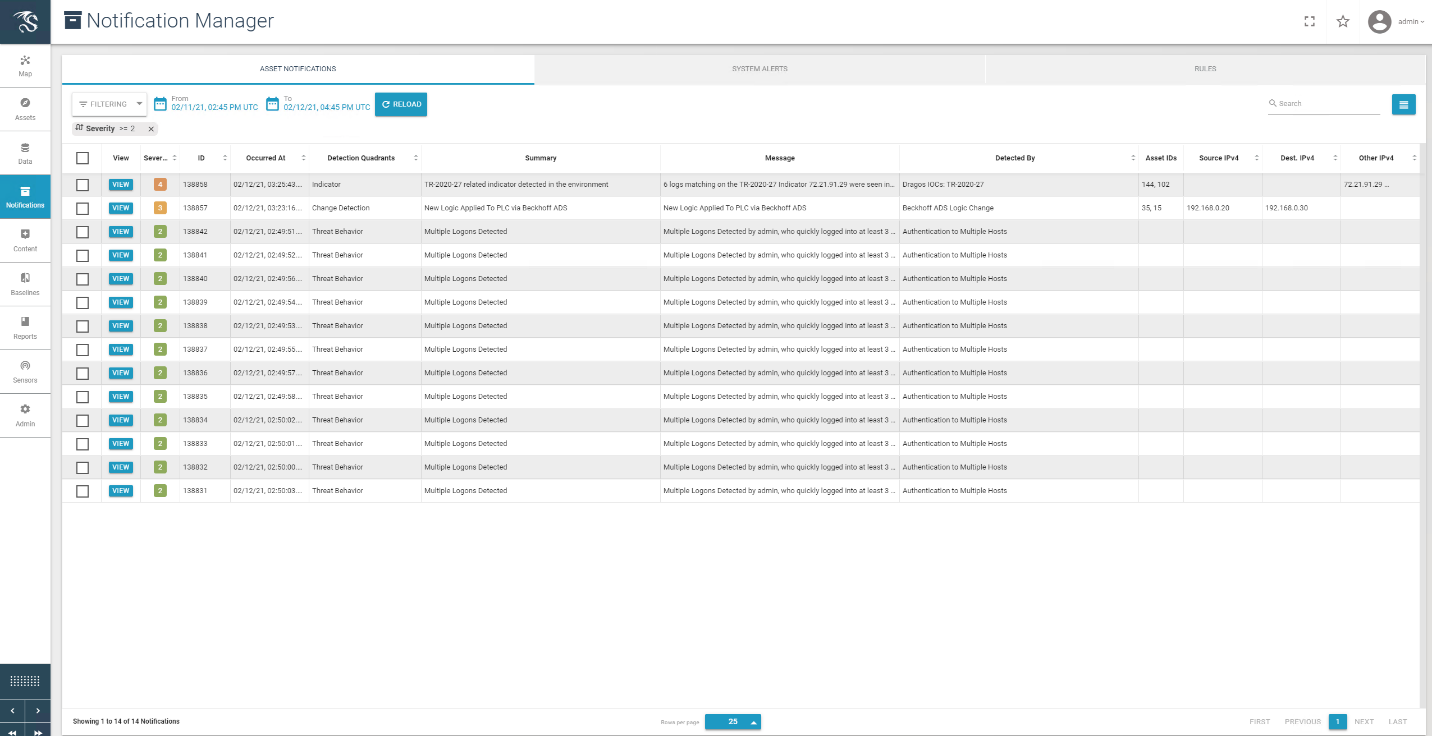

Figure D-22 Log of Alerts Detected by Dragos

Graphical user interface, application, email Description automatically generated

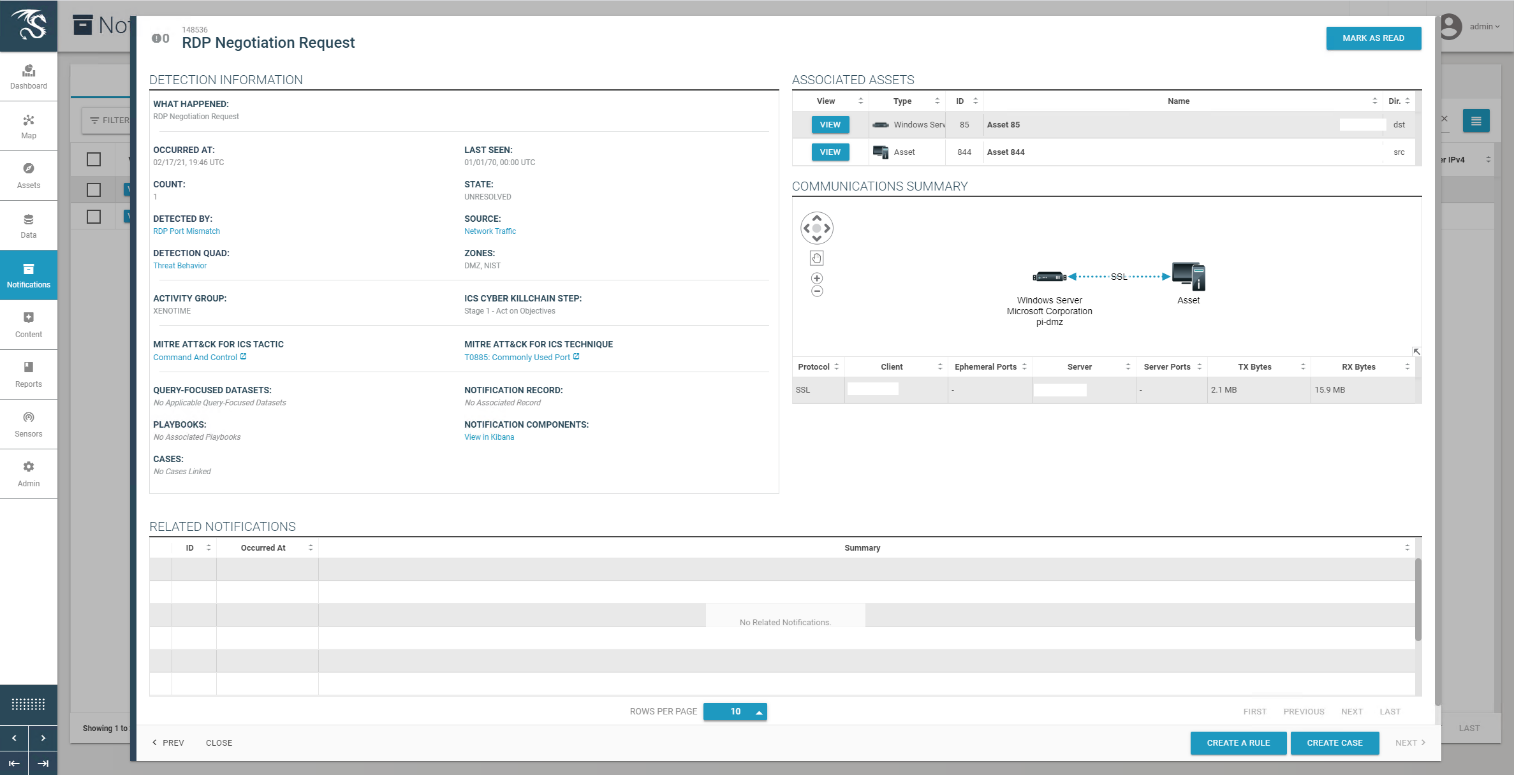

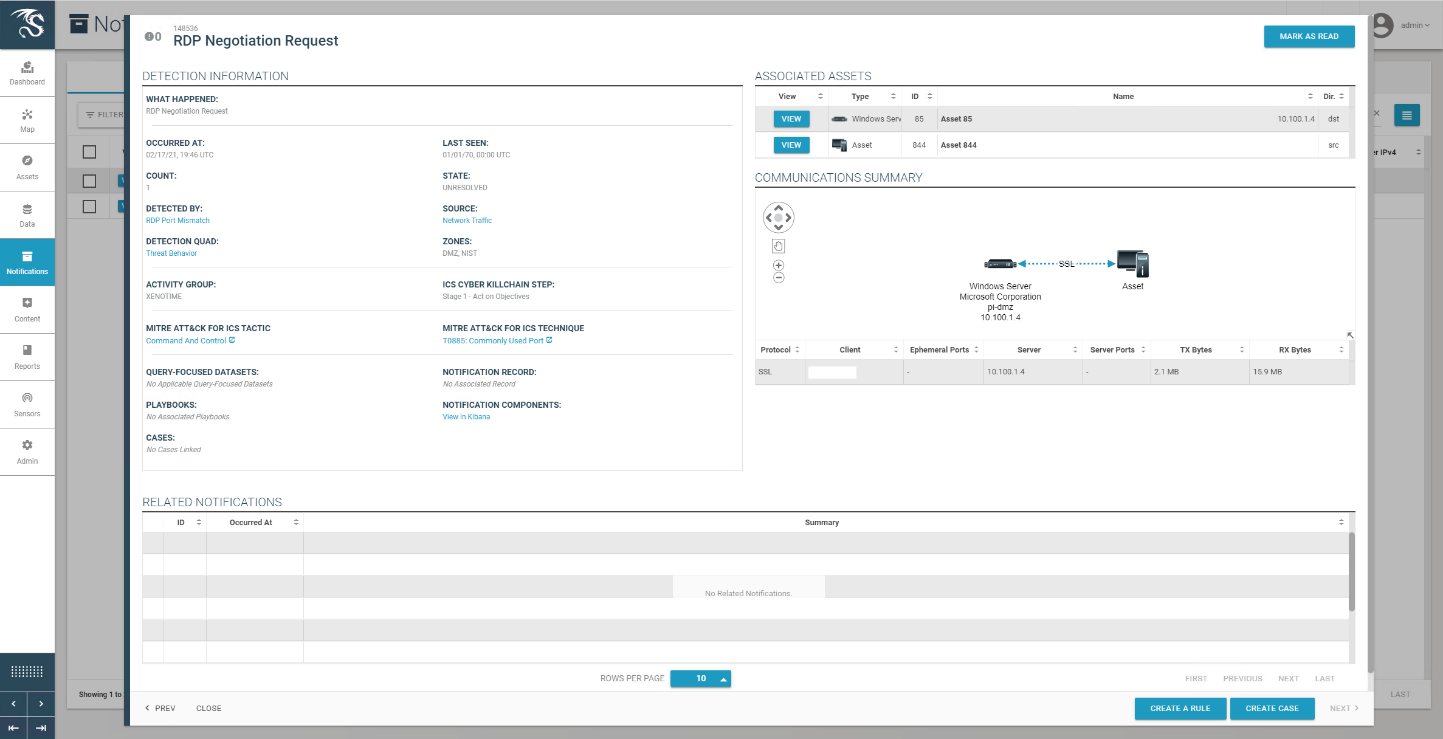

Figure D-23 Detail of RDP Session Activity Between an External System and a DMZ System

Graphical user interface, application, email Description automatically generated

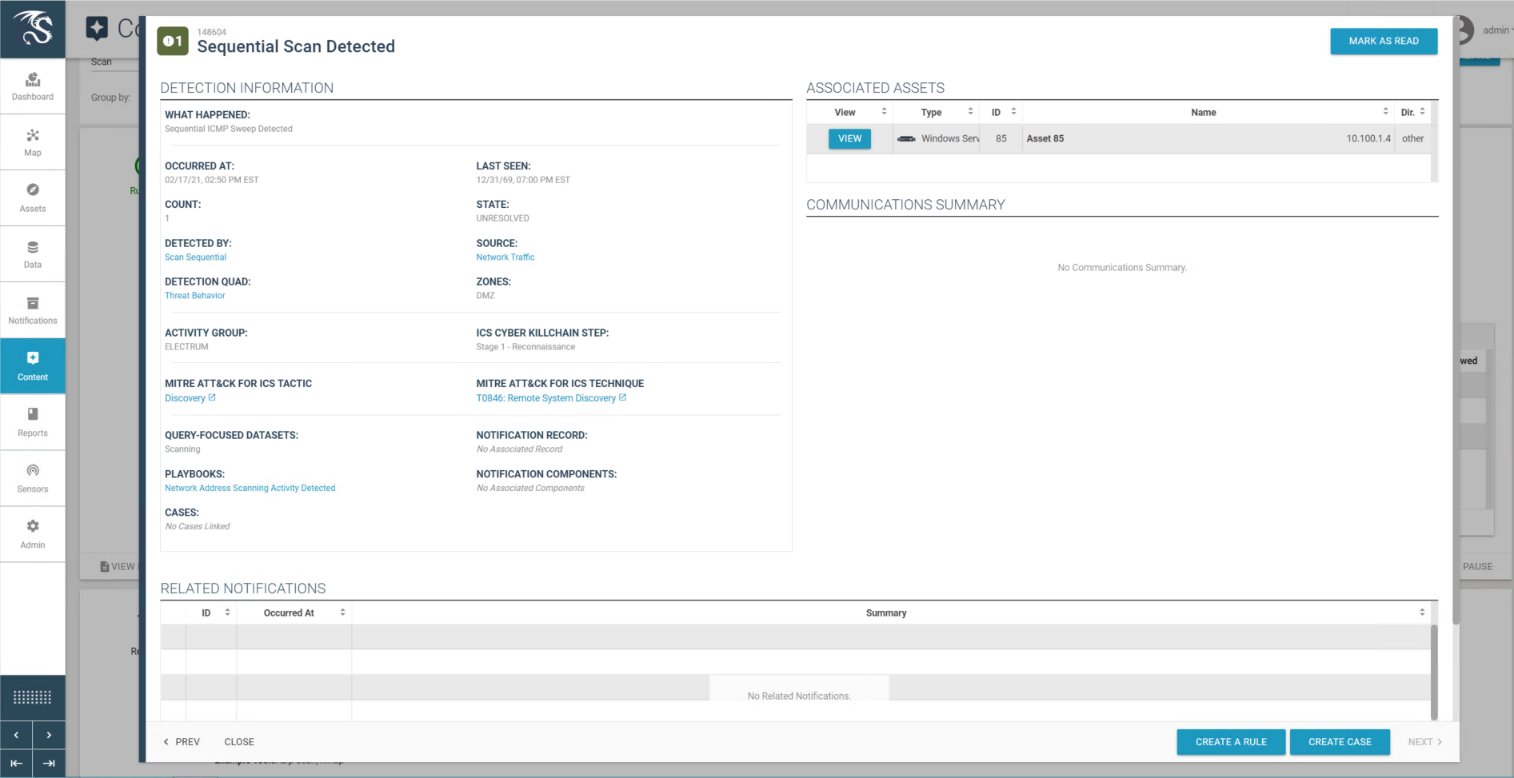

Figure D-24 Detail for Network Scanning Alert

Graphical user interface, text, application Description automatically generated

Figure D-25 Detail of RDP Session Activity Between a DMZ System and a Testbed LAN System

Graphical user interface, application, email Description automatically generated

D.2.4 Build 4

D.2.4.1 Configuration

  • Application Allowlisting: Carbon Black

    • Agent installed on systems in the DMZ, Testbed LAN, and Supervisory LAN and configured to communicate to the Carbon Black Server.

  • Behavior Anomaly Detection: Azure Defender for IoT

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.2.4.2 Test Results

Azure Defender for IoT is able to detect the remote access connection to the DMZ as seen in Figure D-26. Figure D-27 shows detection of scanning activity, while Figure D-28 shows details of the scan. The RDP connection into the manufacturing environment is seen in Figure D-29. Carbon Black blocks 1.exe from executing as shown in Figure D-30.

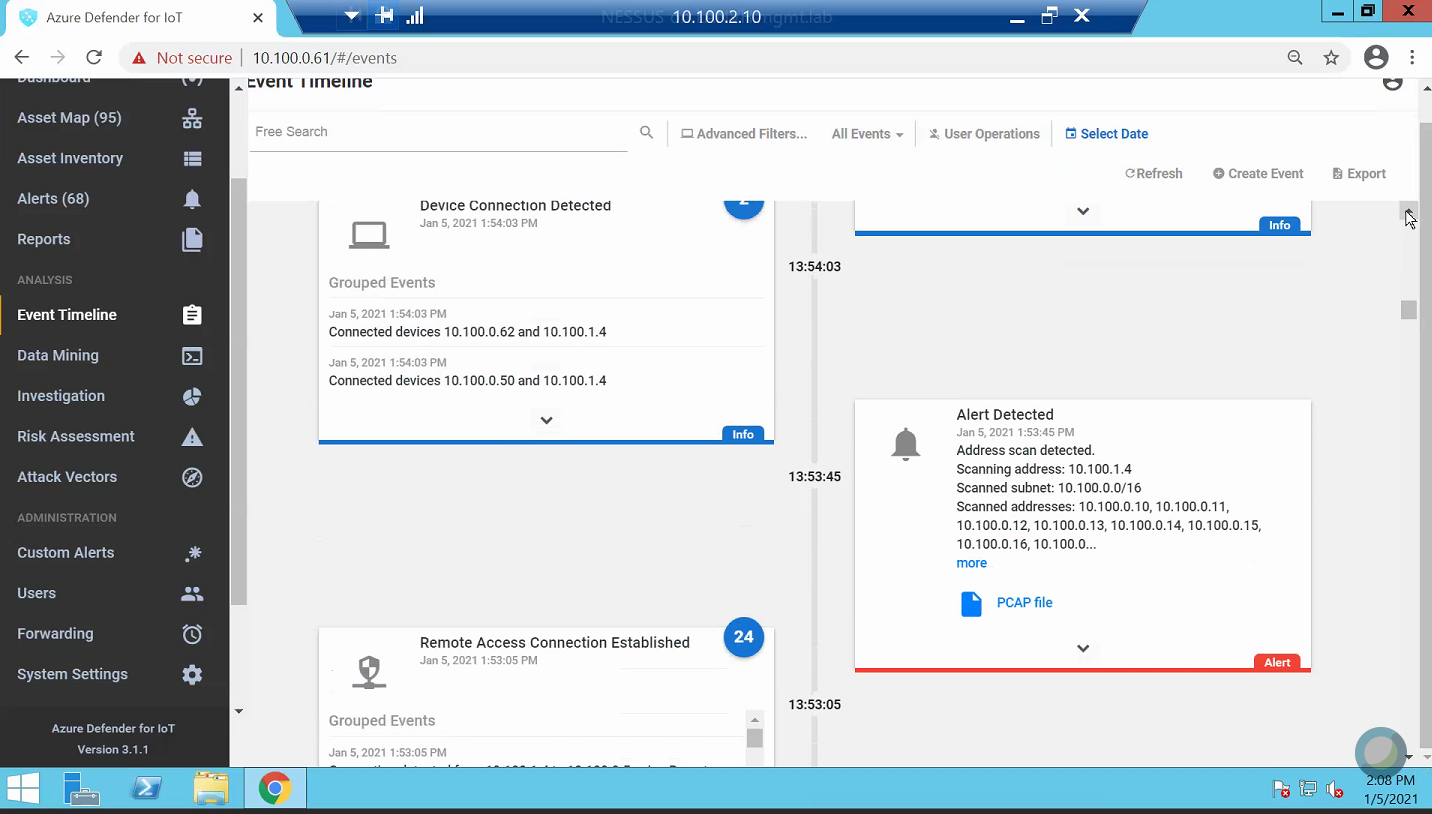

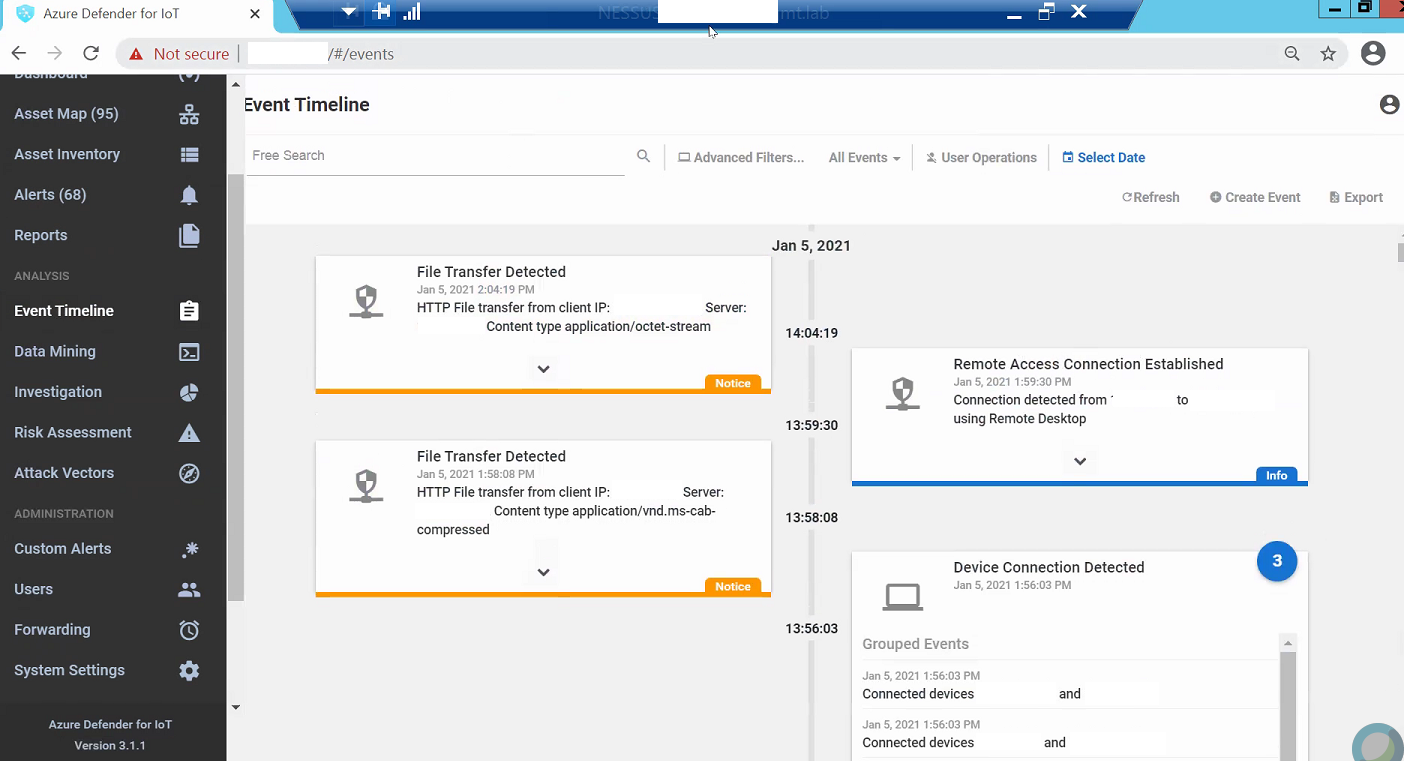

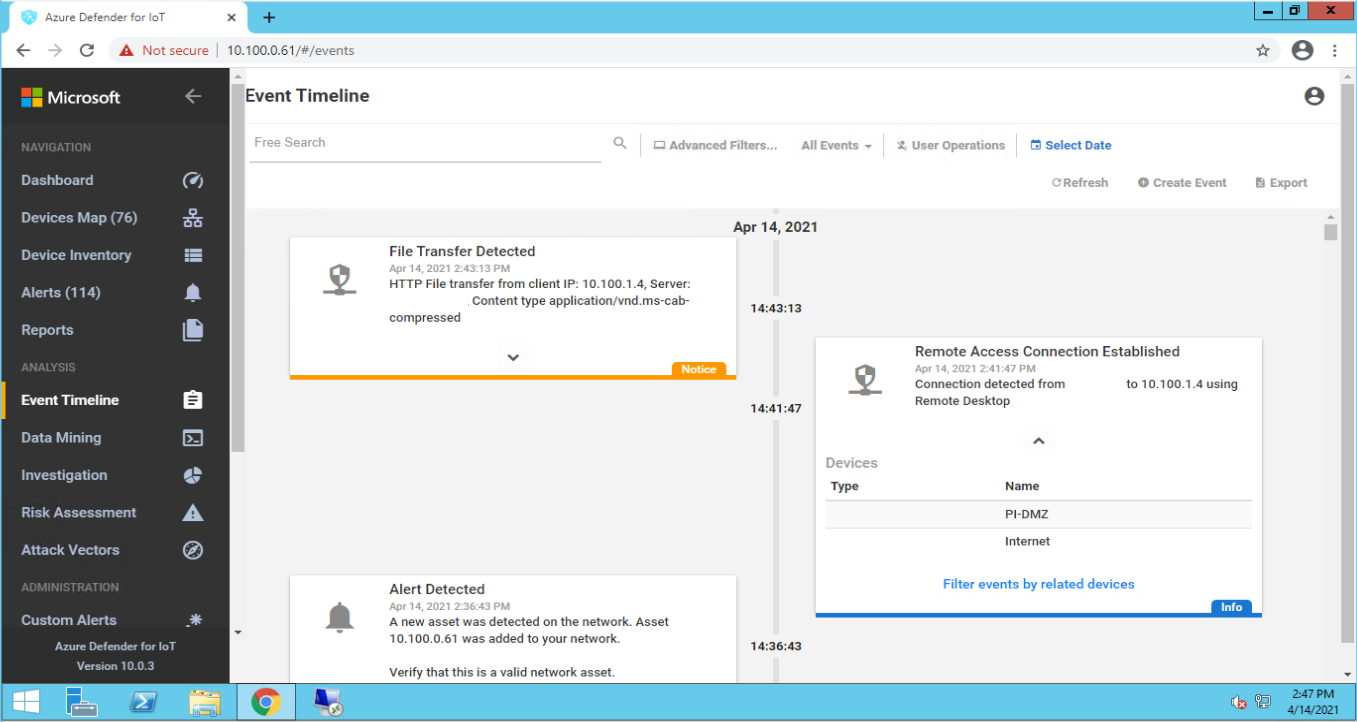

Figure D-26 Azure Defender for IoT “info” Event Identified Remote Access Connection to the DMZ

Graphical user interface, application, Teams Description automatically generated

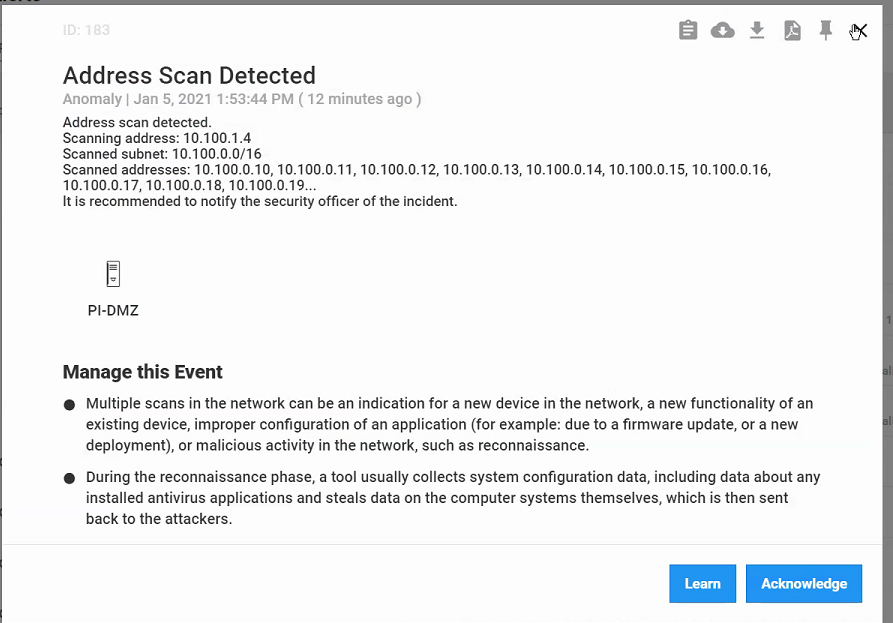

Figure D-27 Alert for Scanning Activity

Graphical user interface, application, Teams Description automatically generated

Figure D-28 Details for the Scanning Alert

Graphical user interface, text, application, email Description automatically generated

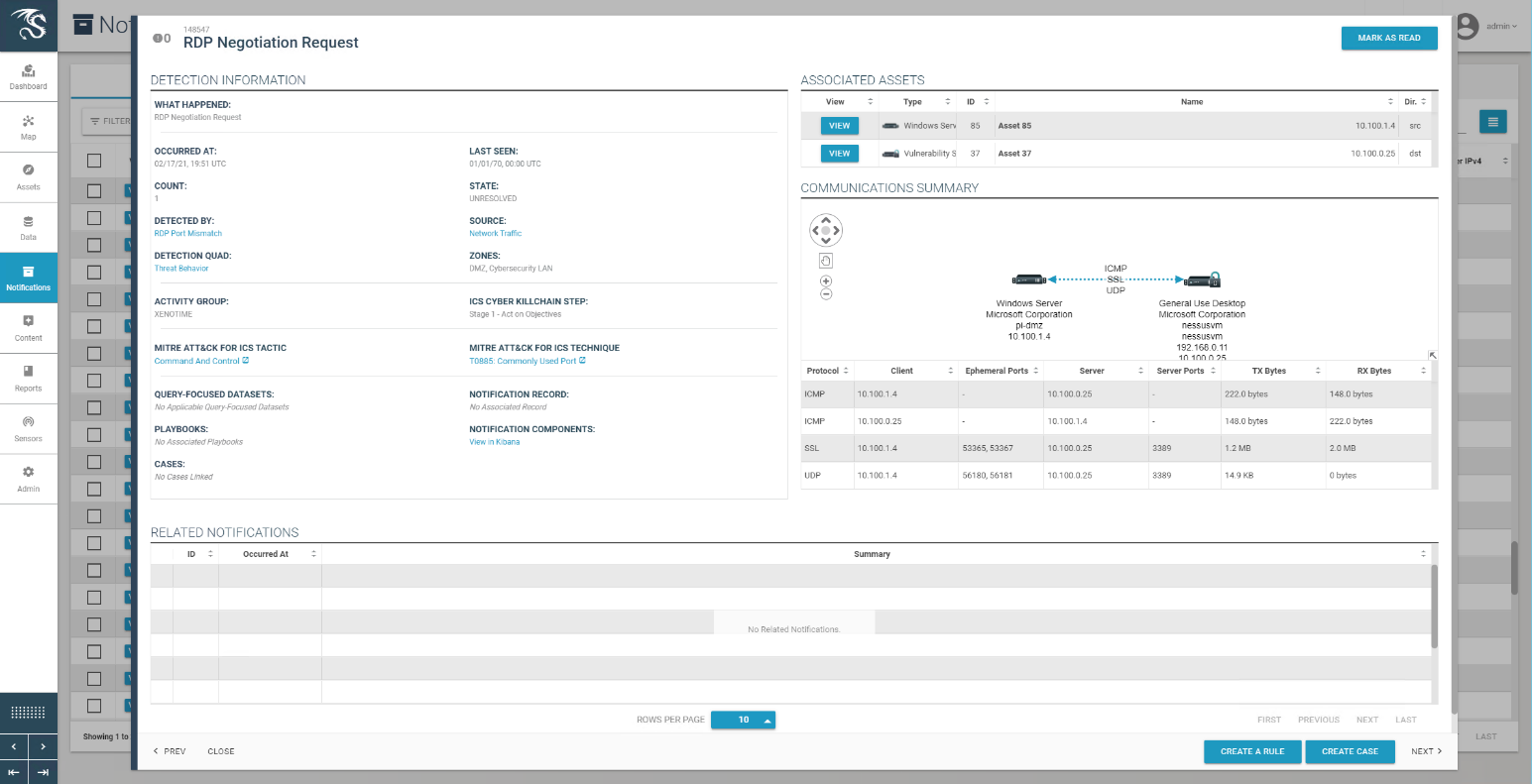

Figure D-29 Detection of RDP Connection into the Manufacturing Environment

Graphical user interface, application, Teams Description automatically generated

Figure D-30 Carbon Black Shows an Alert for Blocking File 1.exe

Graphical user interface, text, application Description automatically generated

D.3 Executing Scenario 3: Protect Host from Malware via Remote Access Connections

An authorized user with an authorized remote workstation, infected with a worm-type malware, connects via remote access capabilities to the manufacturing environments. The malware on the remote host attempts to scan the manufacturing environment to identify vulnerable hosts. The expected result is that the remote access tools effectively stop the worm-type malicious code from propagating to the manufacturing environment from the infected remote workstation.

D.3.1 Build 1

D.3.1.1 Configuration

  • Remote Access: Cisco VPN

    • Configured to allow authorized VPN users to access to ConsoleWorks web interface.

  • User Authentication/User Authorization: ConsoleWorks

    • Configured for access PCS environment.

D.3.1.2 Test Results

Figure D-31 shows the remote connection being established through the Cisco AnyConnect VPN application through which a browser is used to access the ConsoleWorks web interface (Figure D-32). Once a connection to ConsoleWorks was established, the simulated worm attack was executed on the remote PC to scan the target network. The scan was successfully blocked by the VPN configuration.

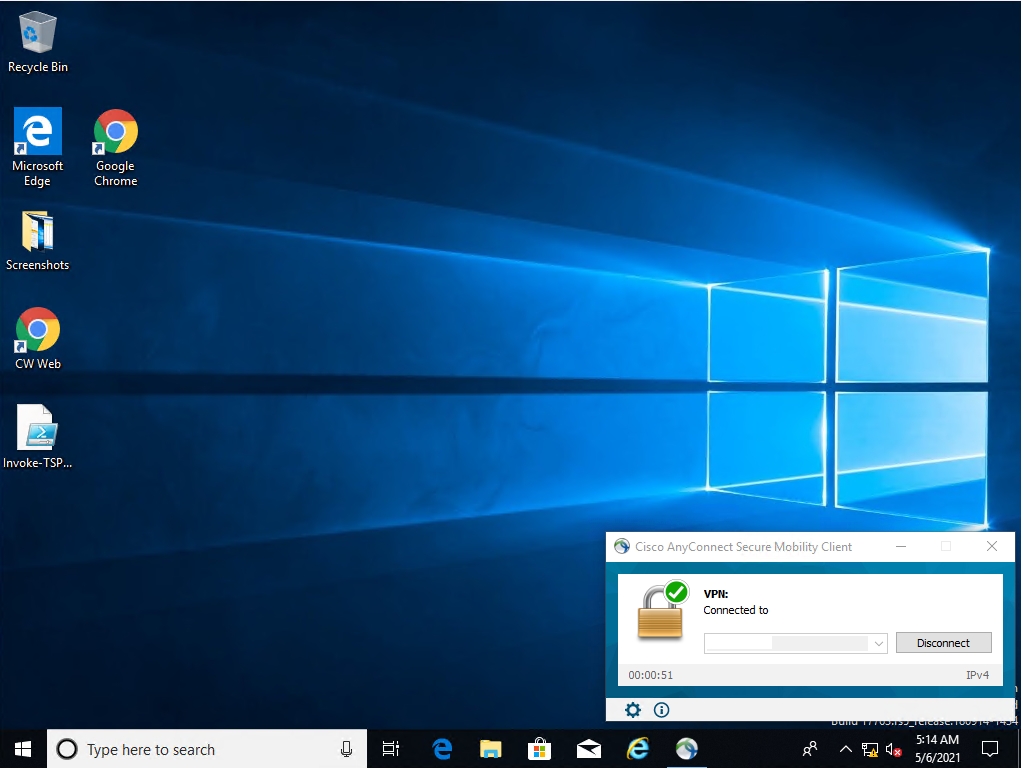

Figure D-31 Secured VPN Connection to Environment with Cisco AnyConnect

Graphical user interface, application Description automatically generated

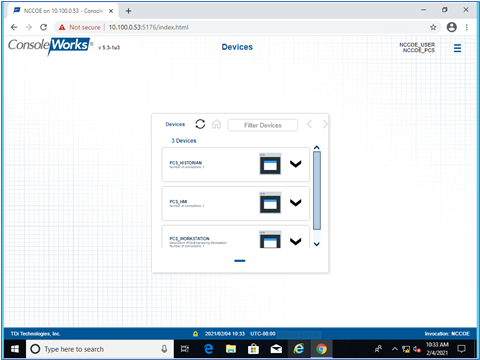

Figure D-32 Remote Access is Being Established Through ConsoleWorks

A screenshot of a computer Description automatically generated

D.3.2 Build 2

D.3.2.1 Configuration

  • Remote Access, User Authentication/User Authorization: Dispel

    • Dispel VDI is configured to allow authorized users to access PCS environment through the Dispel Enclave to the Dispel Wicket.

D.3.2.2 Test Results

The user connects to the Dispel VDI as shown in Figure D-33 and then connects to the PCS workstation as shown in Figure D-34. Once a connection to the NCCOE environment was established, the simulated worm attack was executed on the remote PC to scan the target network. The scan was successfully blocked by the Dispel VDI configuration.

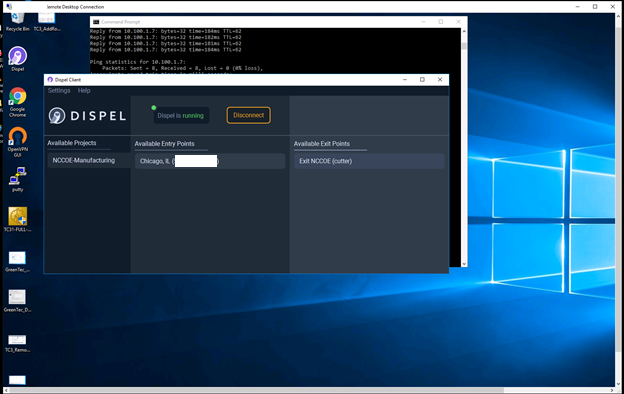

Figure D-33 Dispel VDI with Interface for Connecting Through Dispel Enclave to Dispel Wicket ESI

Graphical user interface Description automatically generated

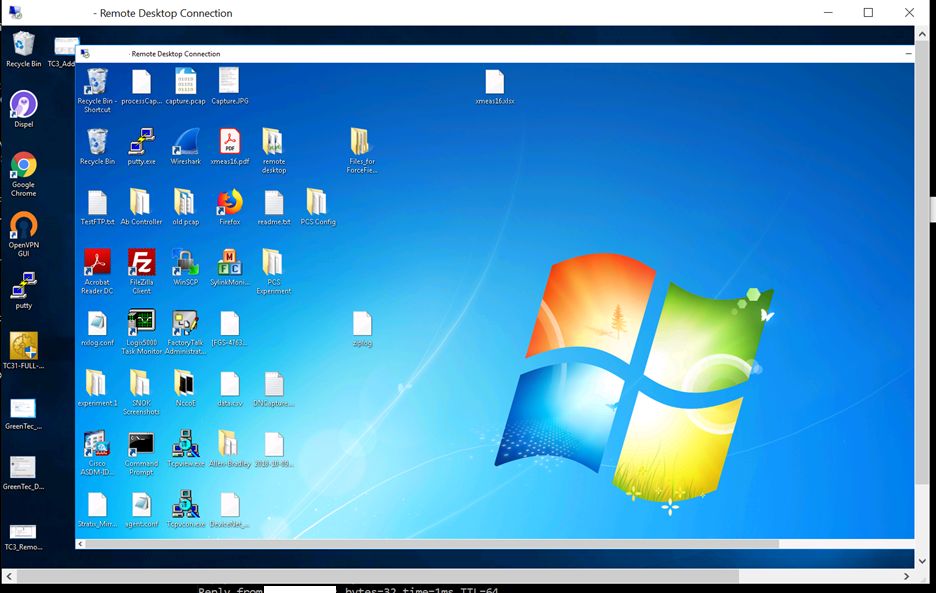

Figure D-34 Nested RDP Session Showing Dispel Connection into the PCS Workstation

A screenshot of a computer Description automatically generated

D.3.3 Build 3

D.3.3.1 Configuration

  • Remote Access: Cisco VPN

    • Configured to allow authorized VPN users to access to ConsoleWorks web interface.

  • User Authentication/User Authorization: ConsoleWorks

    • Configured for access CRS environment.

D.3.3.2 Test Results

Figure D-35 shows the remote connection being established through the Cisco AnyConnect VPN application, where a browser is used to access the ConsoleWorks web interface (Figure D-36). Once a connection to ConsoleWorks was established, the simulated worm attack was executed on the remote PC to scan the target network. The scan was successfully blocked by the VPN configuration.

Figure D-35 VPN Connection to Manufacturing Environment

Graphical user interface, application Description automatically generated

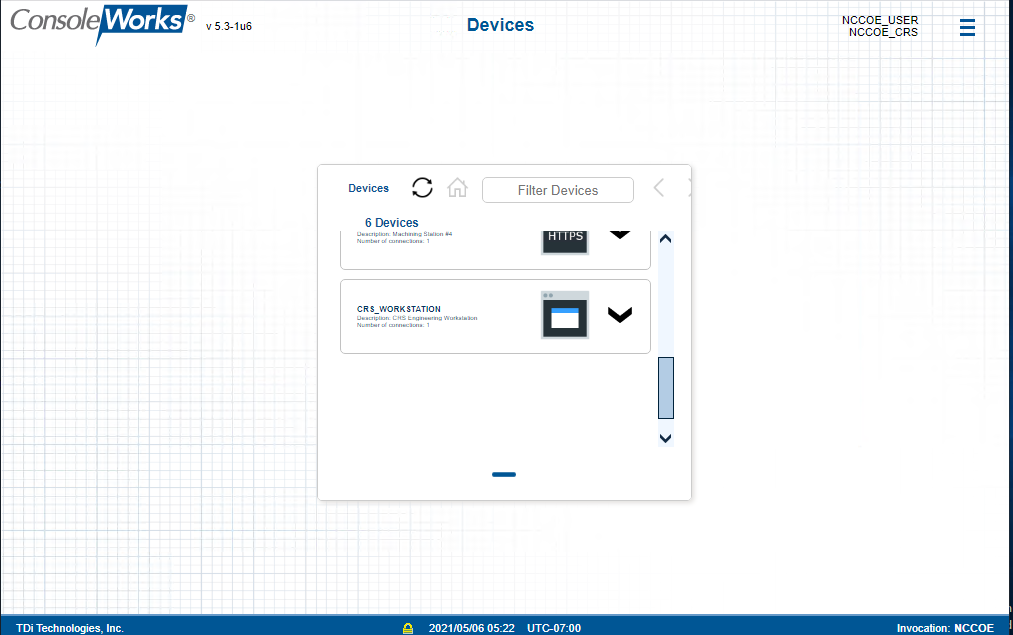

Figure D-36 Remote Access is Being Established Through ConsoleWorks

../_images/volB-image45.png

D.3.4 Build 4

D.3.4.1 Configuration

  • Remote Access, User Authentication/User Authorization: Dispel

    • Dispel VDI is configured to allow authorized users to access the PCS environment through the Dispel Enclave to the Dispel Wicket.

D.3.4.2 Test Results

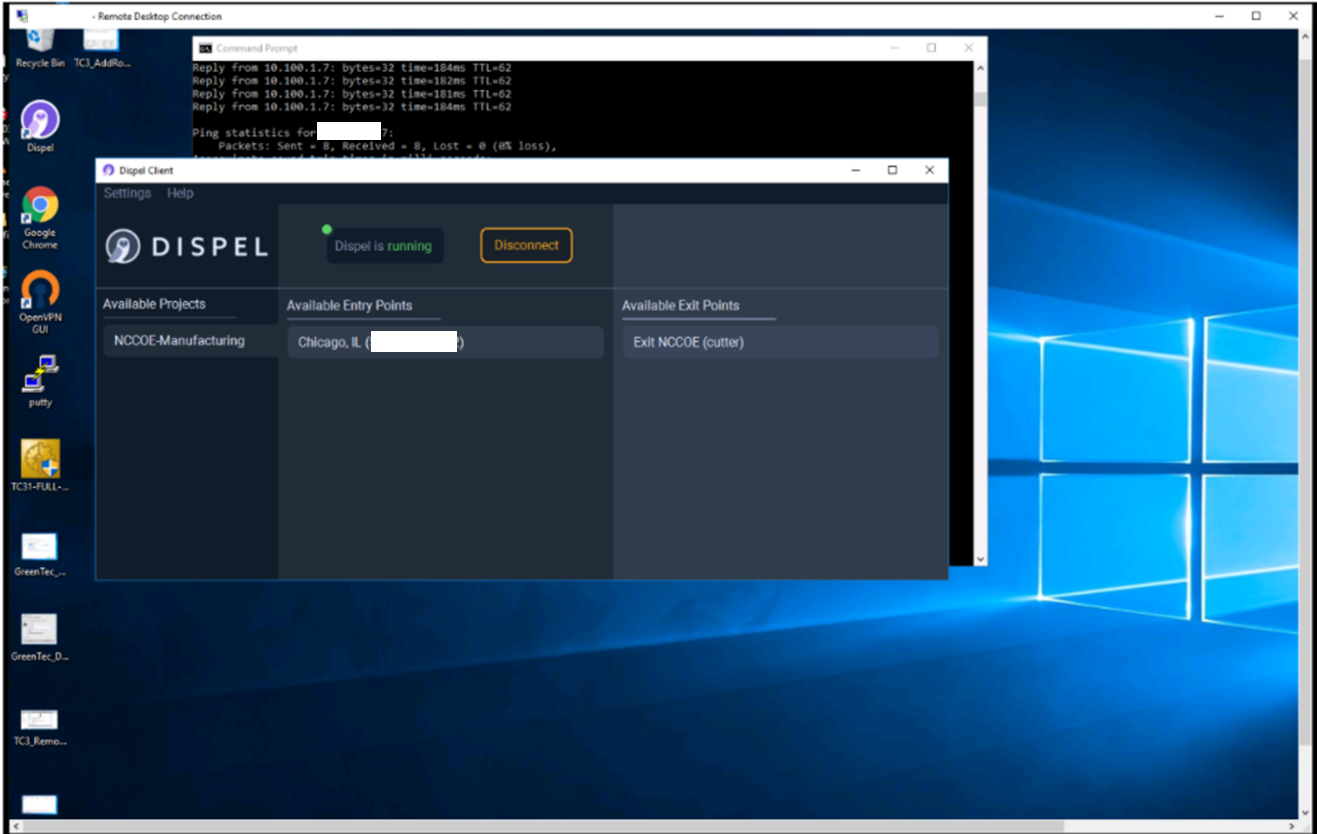

Figure D-37 shows the Dispel VDI desktop, which allows a connection to the CRS workstation in Figure D-38. Once a connection to the NCCOE environment was established, the simulated worm attack was executed on the remote PC to scan the target network. The scan was successfully blocked by the use of the Dispel VDI.

Figure D-37 Dispel VDI Showing Interface for Connecting Through Dispel Enclave to Dispel Wicket

Graphical user interface Description automatically generated

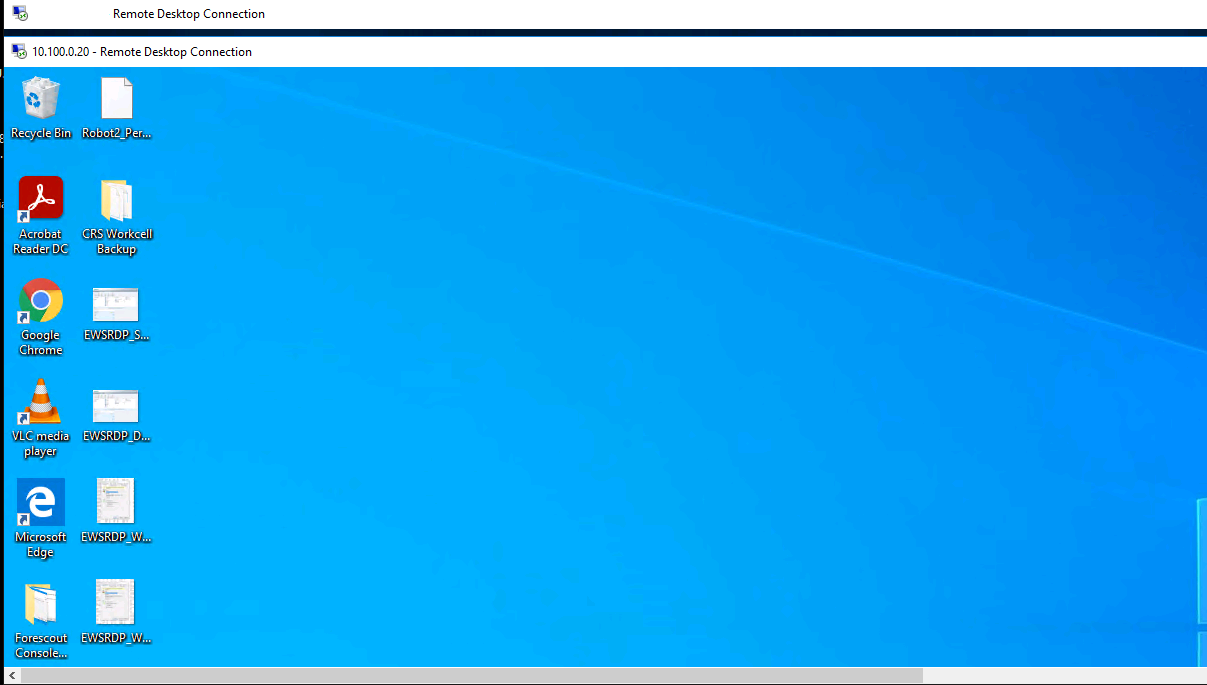

Figure D-38 Nested RDP Session Showing Dispel Connection into the CRS Workstation

A screenshot of a computer Description automatically generated with medium confidence

D.4 Executing Scenario 4: Protect Host from Unauthorized Application Installation

An authorized user copies downloaded software installation files and executable files from a shared network drive to a workstation. The user attempts to execute or install the unauthorized software on the workstation. The expected result is that the application allowlisting tool prevents execution or installation of the software. Also, the behavioral anomaly detection identifies file transfer activity in the manufacturing environment.

D.4.1 Build 1

D.4.1.1 Configuration

  • Application Allowlisting: Carbon Black

    • Agent installed on systems in the DMZ, Testbed LAN, and PCS VLAN 1 and 2 and configured to communicate to the Carbon Black Server.

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.4.1.2 Test Results

As shown in Figure D-39, Carbon Black is able to block and alert on the execution of putty.exe. Tenable.ot is able to detect the server message block (SMB) connection between an HMI in the Testbed LAN and the GreenTec server (Figure D-40). Details of that alert are shown in Figure D-41.

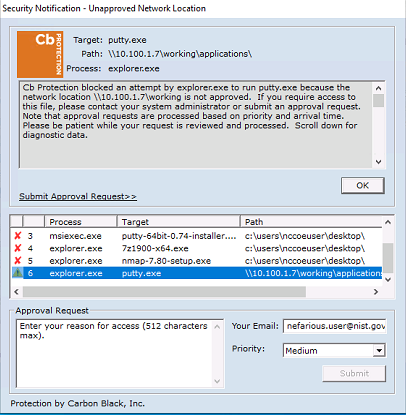

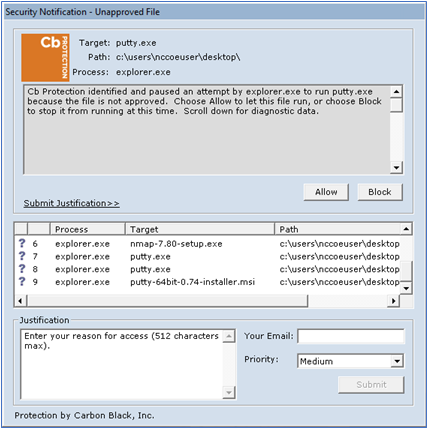

Figure D-39 Carbon Black Blocks the Execution of putty.exe and Other Files

Graphical user interface, application Description automatically generated

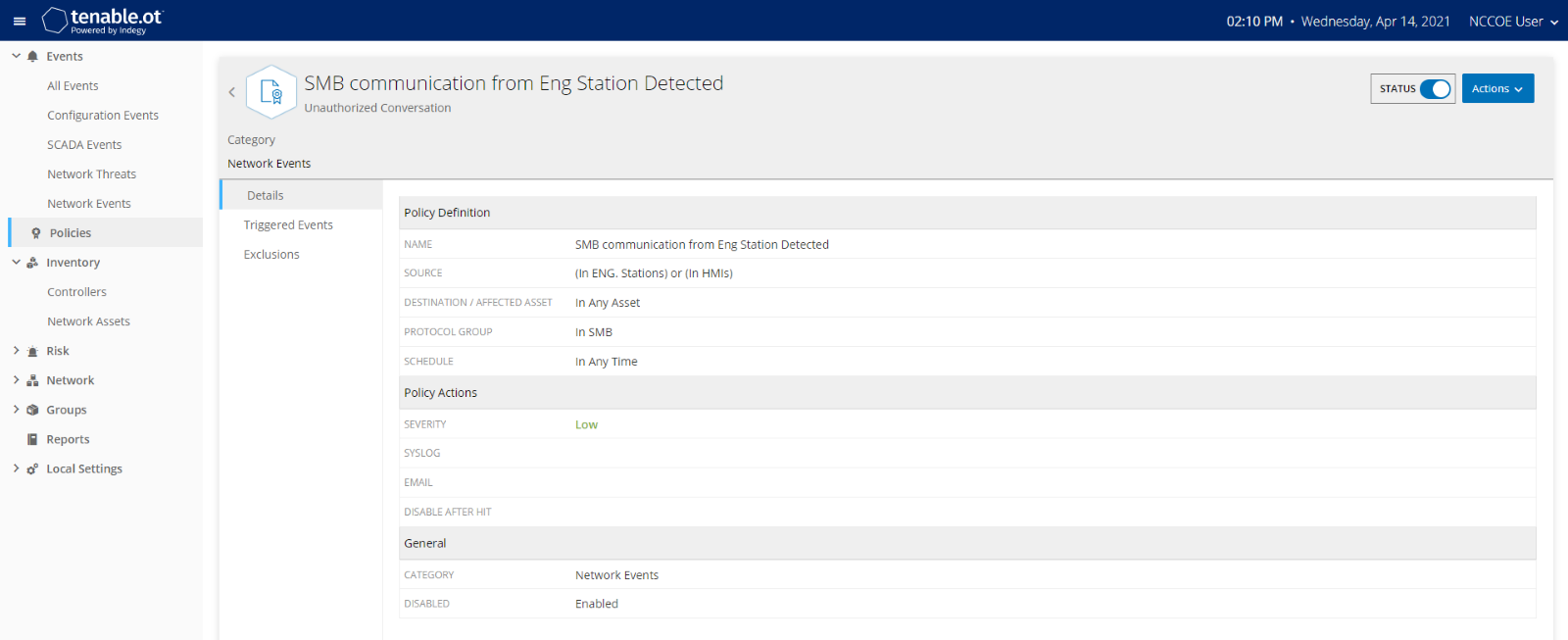

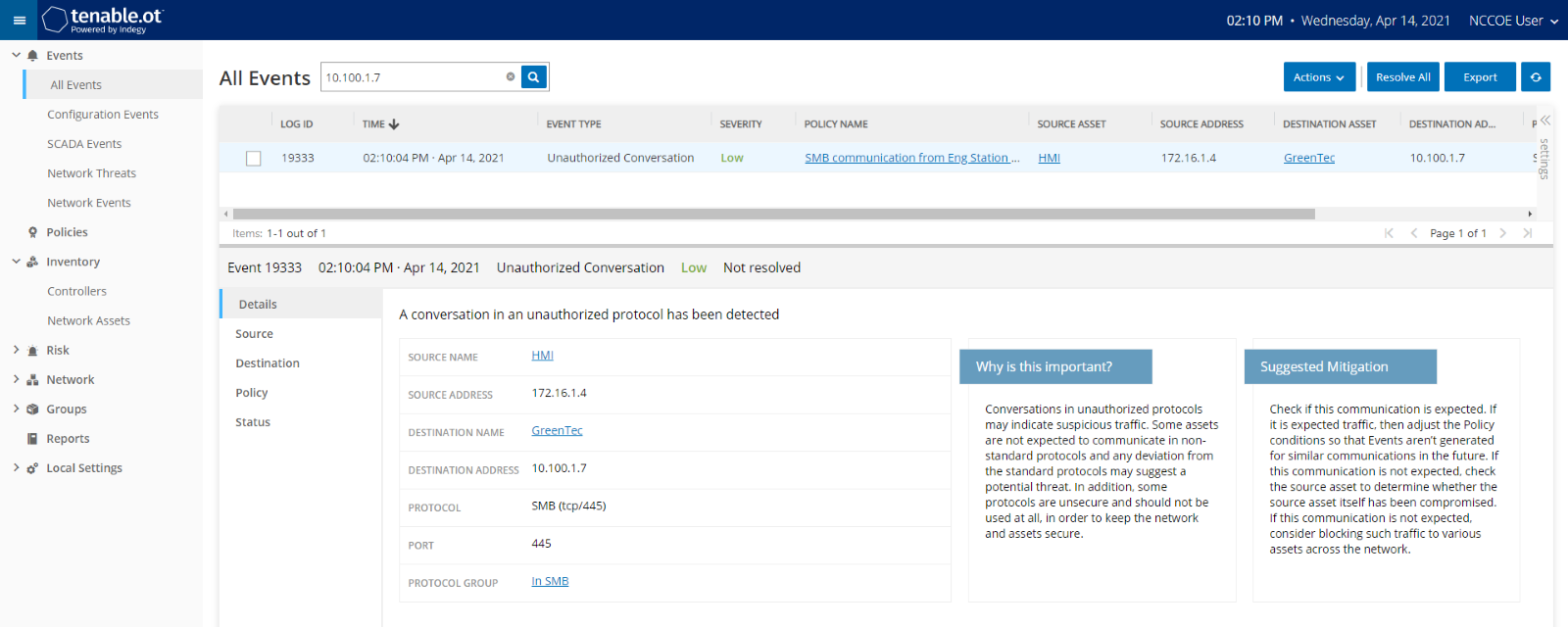

Figure D-40 Tenable.ot Alert With the SMB Connection Between the HMI and the GreenTec Server

Graphical user interface, text, email Description automatically generated

Figure D-41 Tenable.ot Alert Details of the SMB Connection Between the HMI and the network file system (NFS) Server in the DMZ

Graphical user interface, text, application, email Description automatically generated

D.4.2 Build 2

D.4.2.1 Configuration

  • Application Allowlisting: Windows SRP

    • Allowlisting policies are applied to systems in the DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.4.2.2 Test Results

With Windows SRP enabled, putty.exe is not allowed to execute because it is not a permitted application under group policy, as shown in Figure D-42. Windows SRP also blocks the user’s attempt to run putty-64bit-0.74-installer.msi. (Figure D-43). Forescout detected the file transfer activity (Figure D-44). Figure D-45 shows a detailed description of the alert that was generate for the file transfer activity.

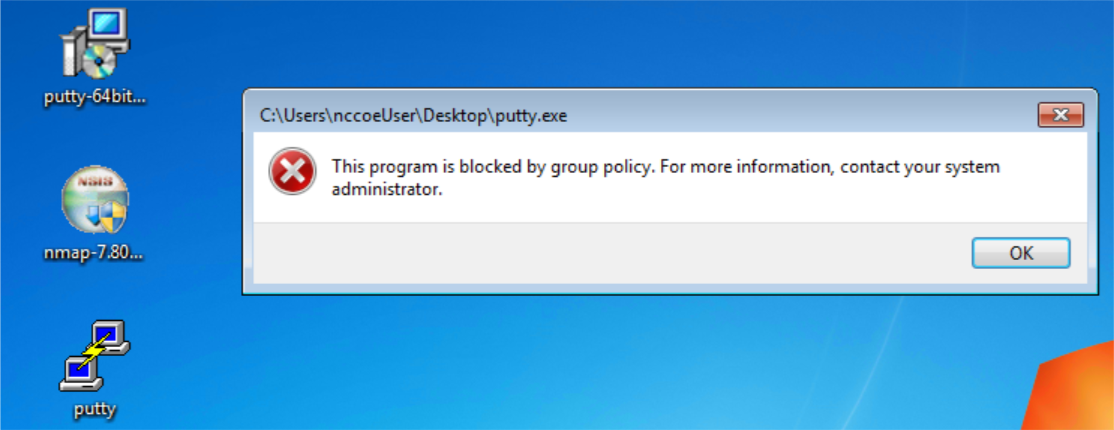

Figure D-42 Putty.exe is Not Permitted to Run Based on the Windows SRP Configuration

Graphical user interface, application Description automatically generated

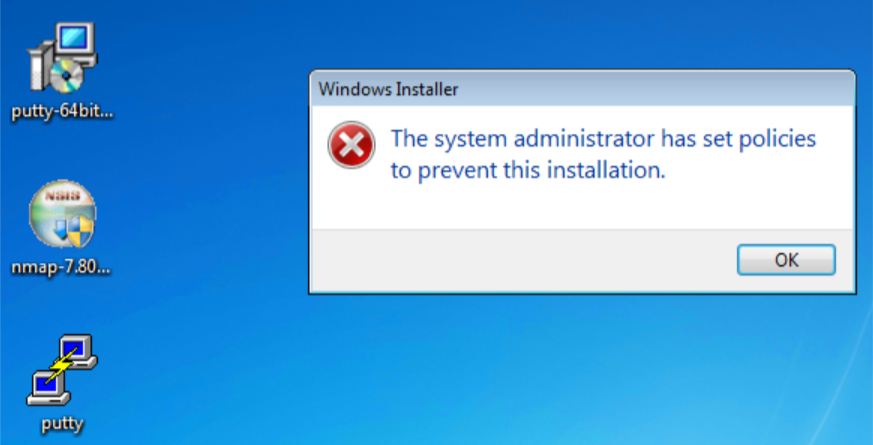

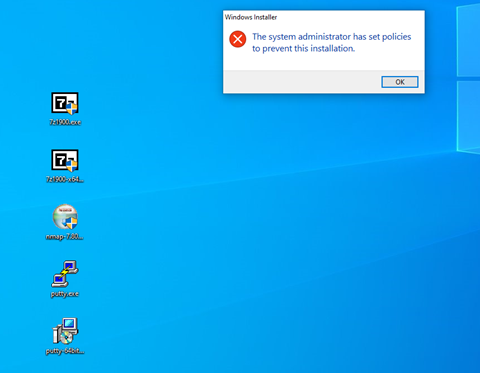

Figure D-43 putty-64bit-0.74-installer.msi is blocked by Windows SRP

Graphical user interface, text, application, chat or text message Description automatically generated

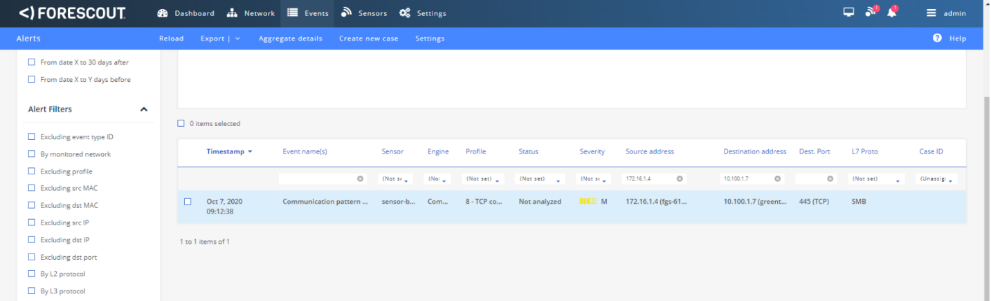

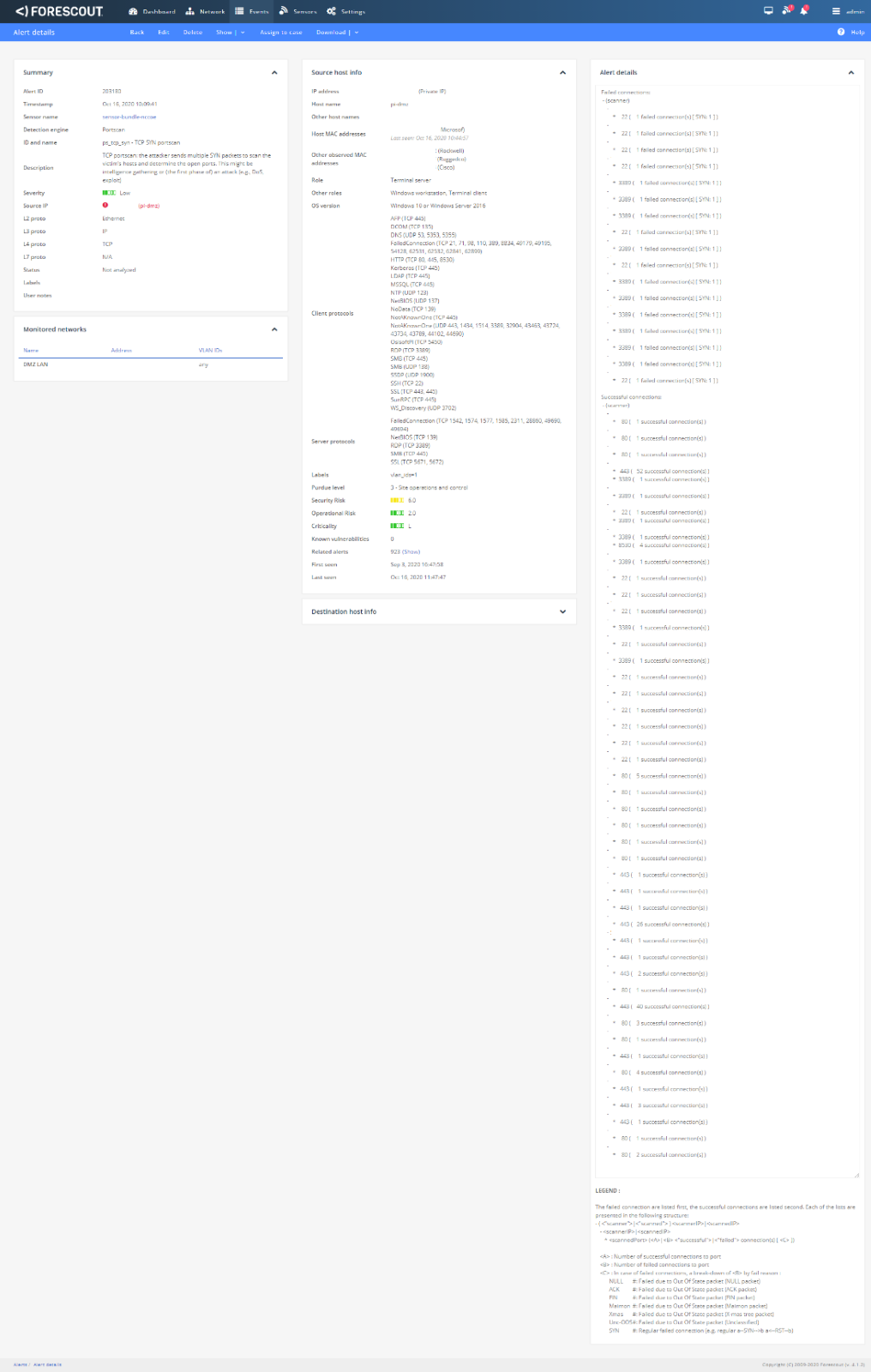

Figure D-44 Forescout Alert on the File Transfer Activity

Graphical user interface, text, application, Word Description automatically generated

Figure D-45 Forescout Alert Details for the File Transfer Activity

Graphical user interface, application Description automatically generated

D.4.3 Build 3

D.4.3.1 Configuration

  • Application Allowlisting : Windows SRP

    • Settings are applied to systems in the DMZ, Testbed LAN, and Supervisory LAN

  • Behavior Anomaly Detection: Dragos

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.4.3.2 Test Results

With Windows SRP enabled, putty.exe is not allowed to execute because it is not a permitted application under group policy, as shown in Figure D-46. Windows SRP also blocks the user’s attempt to run putty-64bit-0.74-installer.msi (Figure D-47). Dragos detected the file transfer activity (Figure D-48). Figure D-49 shows a detailed description of the alert that was generated for the file transfer activity.

Figure D-46 Putty.exe is Not Permitted to Run Based on the Windows SRP Configuration

Graphical user interface Description automatically generated

Figure D-47 putty-64bit-0.74-installer.msi is Blocked by Windows SRP

Graphical user interface Description automatically generated

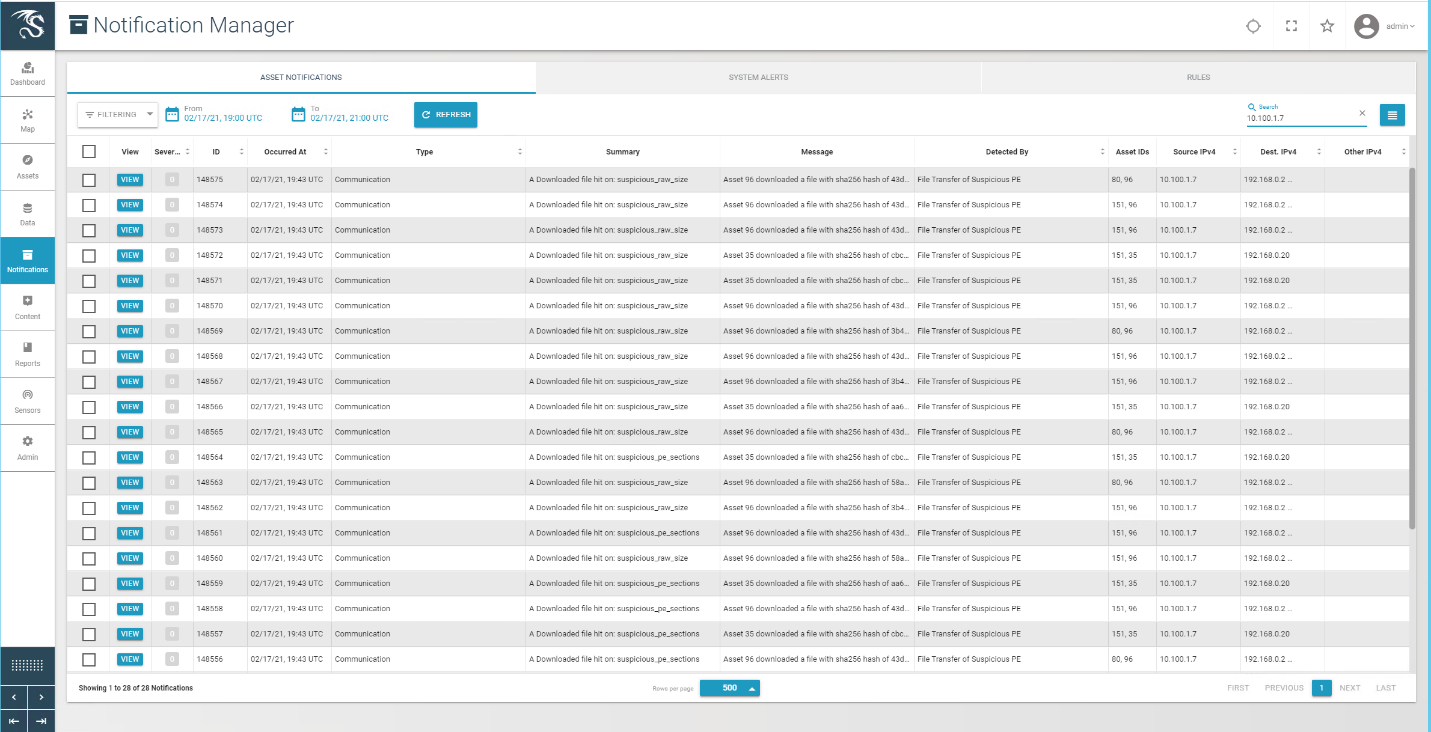

Figure D-48 Dragos Alert on the File Transfer Activity

Graphical user interface, application, email Description automatically generated

Figure D-49 Dragos Alert Details of the File Transfer Alert

Graphical user interface, text, application, email Description automatically generated

D.4.4 Build 4

D.4.4.1 Configuration

  • Application Allowlisting: Carbon Black

Agent installed on systems in the DMZ, Testbed LAN, and Supervisory LAN and configured to communicate to the Carbon Black Server.

  • Behavior Anomaly Detection: Azure Defender for IoT

Configured to receive packet streams from DMZ, Testbed LAN and Supervisory LAN, and Control LAN.

D.4.4.2 Test Results

Carbon Black was able to block execution of putty.exe (Figure D-50) and the installation of putty-64bit-0.74-installer.msi (Figure D-51). Figure D-52 is the alert dashboard for Azure Defender for IoT that shows new activity has been detected. The detailed alert in Figure D-53 provides details of an RPC connection between the GreenTec server and the Testbed LAN. A timeline of events showing a file transfer has occurred is shown in Figure D-54.

Figure D-50 Carbon Black Alert Showing that putty.exe is Blocked from Executing

Graphical user interface, text, application Description automatically generated

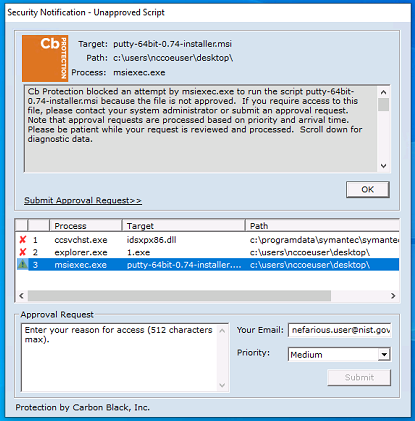

Figure D-51 Carbon Black Alert Showing Execution of putty-64bit-0.74-installer.msi Being Blocked

Graphical user interface, text, application Description automatically generated

Figure D-52 Azure Defender for IoT Alert Dashboard Showing Detection of a New Activity

Graphical user interface, text, application, email Description automatically generated

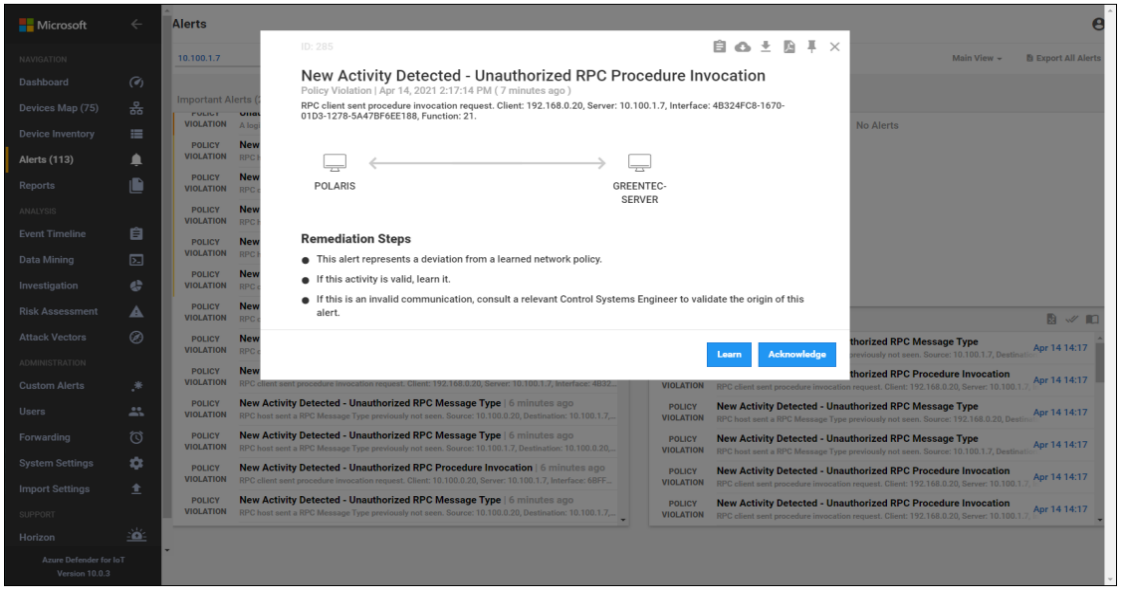

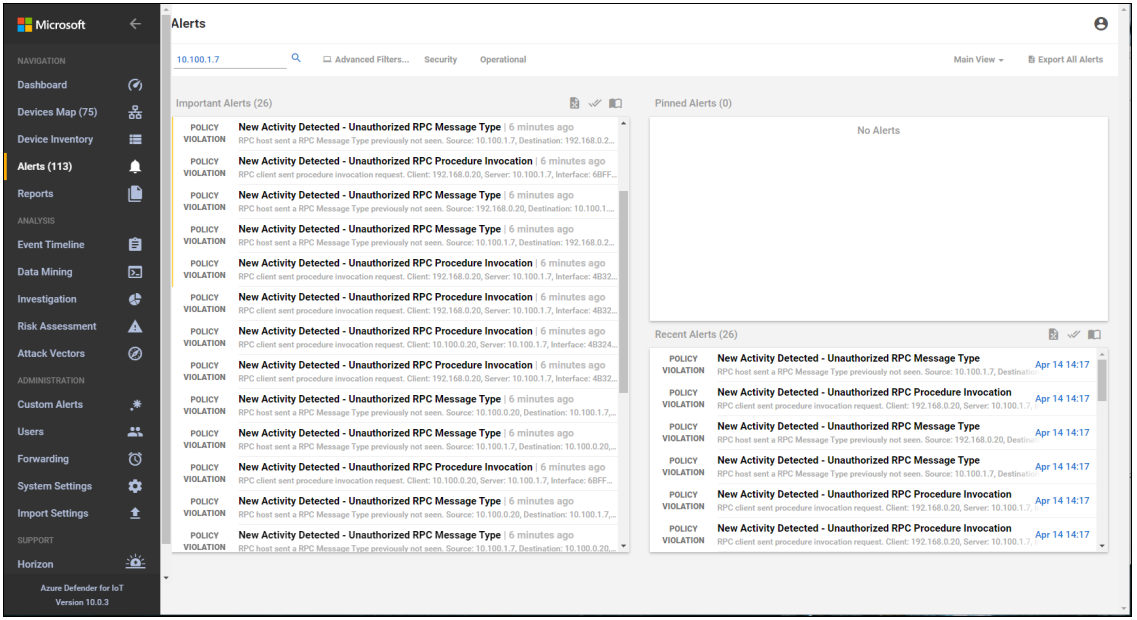

Figure D-53 Azure Defender for IoT Alert Details Showing RPC Connection Between the DMZ and the Testbed LAN

../_images/volB-image62.png

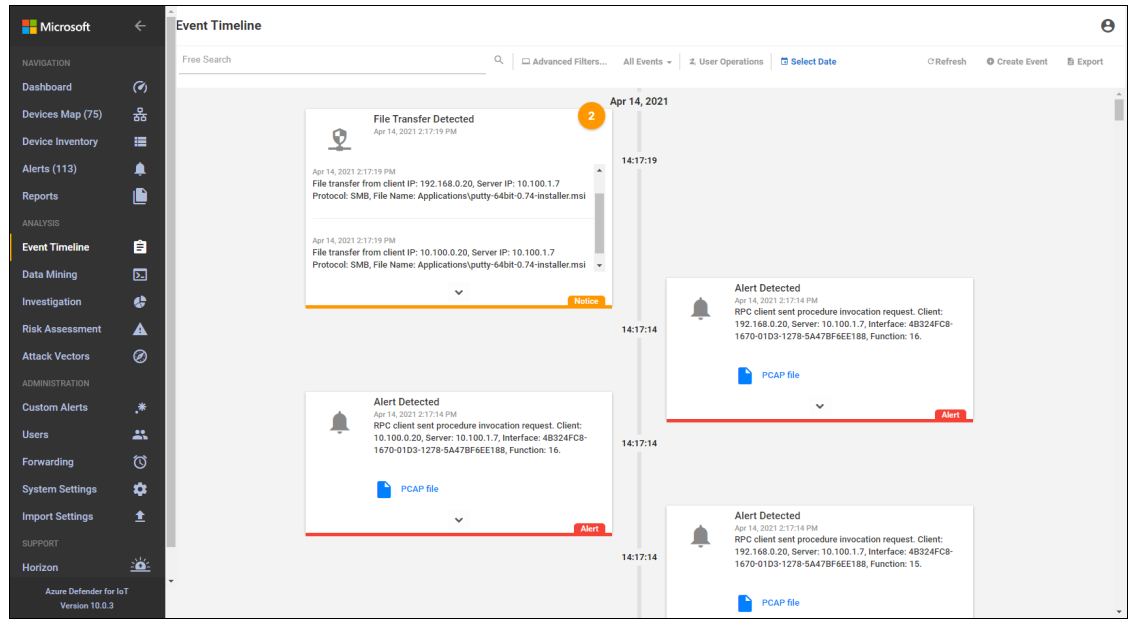

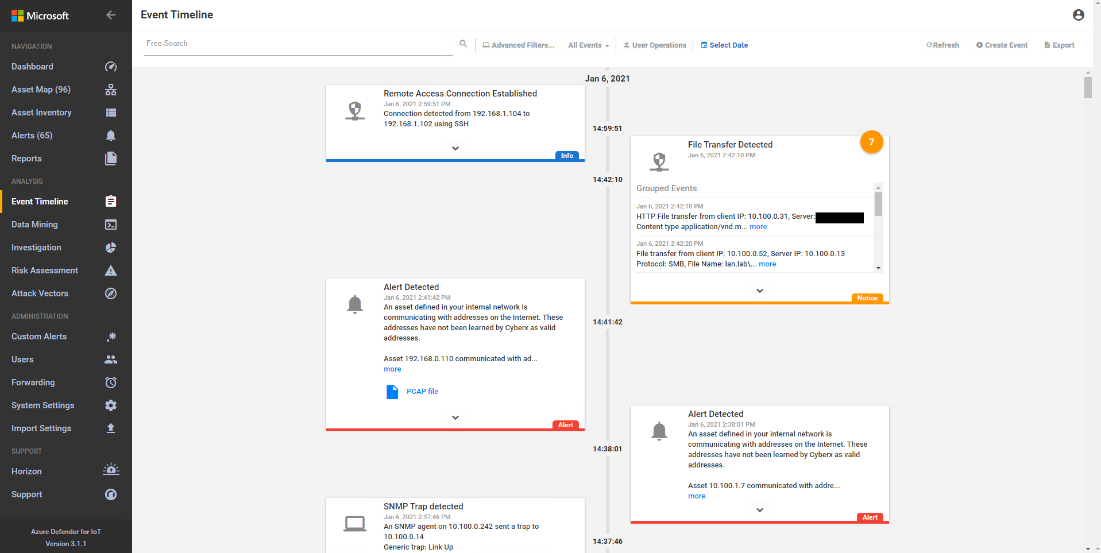

Figure D-54 Azure Defender for IoT Event Alert Timeline Showing the File Transfer

Graphical user interface, text, application, chat or text message Description automatically generated

D.5 Executing Scenario 5: Protect from Unauthorized Addition of a Device

An authorized individual with physical access connects an unauthorized device on the manufacturing network and then uses it to connect to devices and scan the network. The expected result is behavioral anomaly detection identifies the unauthorized device.

D.5.1 Build 1

D.5.1.1 Configuration

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.5.1.2 Test Results

Tenable.ot detects and alerts on addition of a device to the environment. Figure D-55 shows an event reported by Tenable.ot when a device was connected to the wireless access point in the manufacturing environment. Tenable.ot also detects other activity from the device, as shown in Figure D-56, where the new device tries to establish a secure shell (SSH) connection to the network switch.

Figure D-55 Tenable.ot Event Showing a New Asset has Been Discovered

Graphical user interface, text, application, email Description automatically generated

Figure D-56 Tenable.ot Event Showing Unauthorized SSH Activities

Graphical user interface, text, application, email Description automatically generated

D.5.2 Build 2

D.5.2.1 Configuration

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.5.2.2 Test Results

Forescout detects when an unauthorized device connects to a wireless access point in the manufacturing environment. Figure D-57 shows that Forescout raises an alert on the DNS request from the wireless access point to the gateway. The device establishes an SSH connection, which is detected by Forescout as shown in Figure D-58. A more detailed view of the alert is shown in Figure D-59.

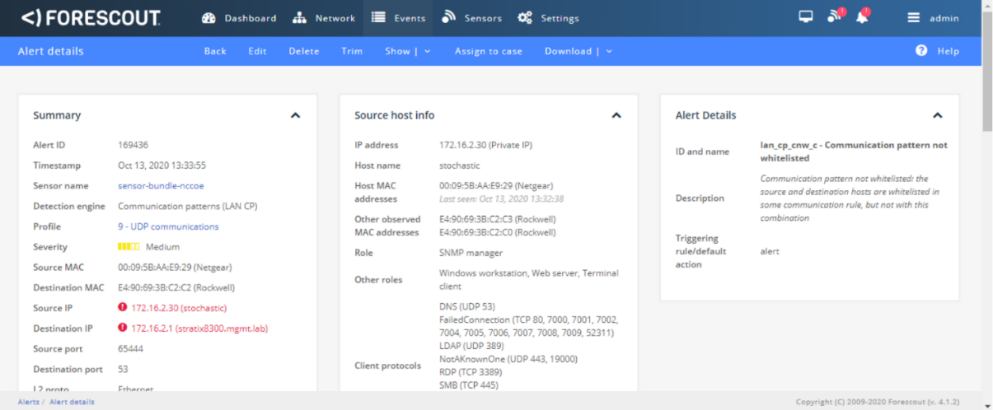

Figure D-57 Forescout Alert on the DNS Request from the New Device

Graphical user interface, text, application, email Description automatically generated

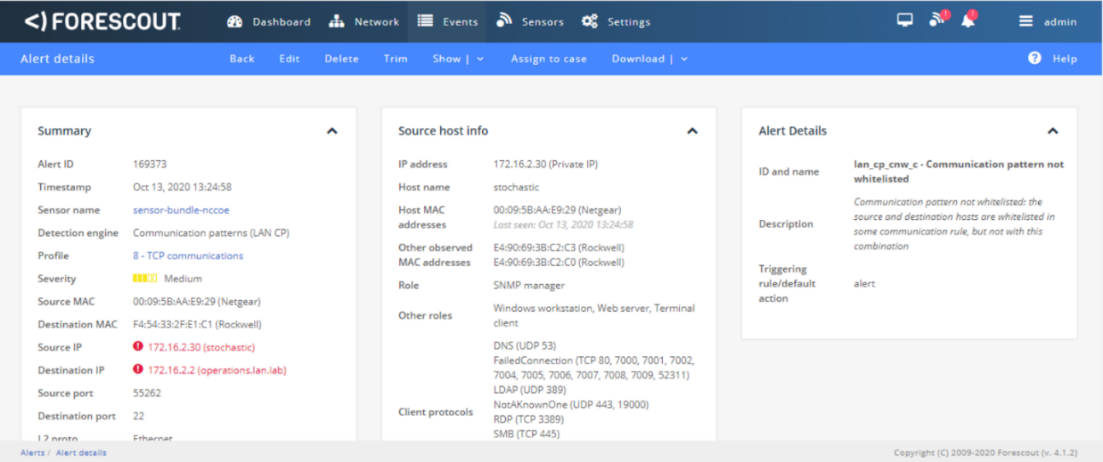

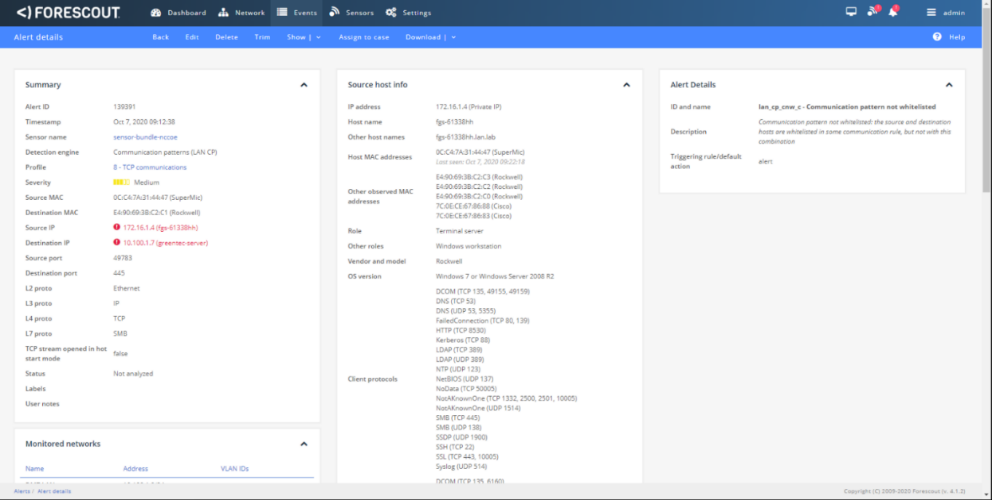

Figure D-58 Forescout alert showing the SSH connection

../_images/volB-image66.png

Figure D-59 Detailed Forescout alert of the Unauthorized SSH Connection

Graphical user interface, text, application, email Description automatically generated

D.5.3 Build 3

D.5.3.1 Configuration

  • Behavior Anomaly Detection: Dragos

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.5.3.2 Test Results

Dragos detected the traffic generated by the new asset and generated several alerts as seen in the list of alerts in Figure D-60. Details of different aspects of the network scanning can be seen in Figure D-61 and Figure D-62. Details on the new device can also be seen in Figure D-63.

Figure D-60 Dragos Dashboard Showing Alerts Generated upon Detecting New Device and Network Scanning

Graphical user interface, text, application, email Description automatically generated

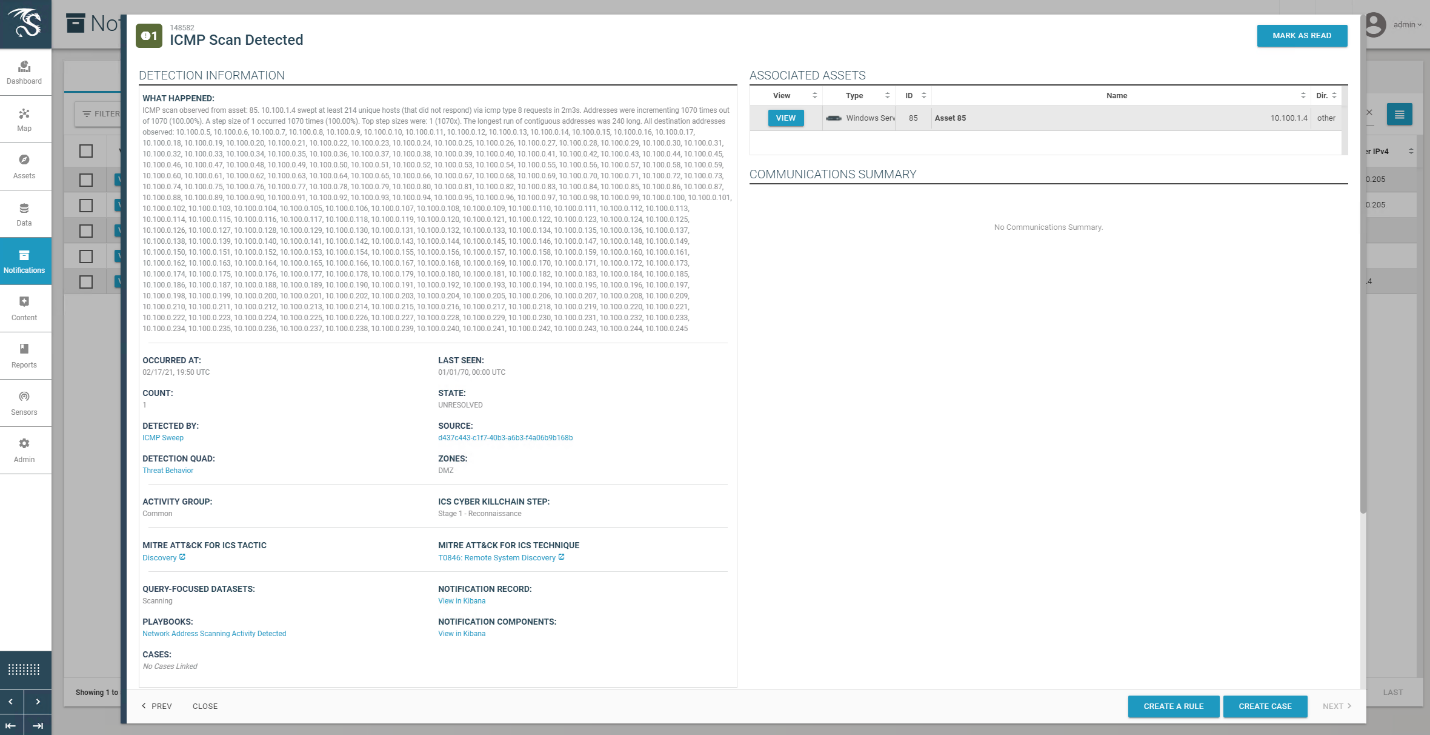

Figure D-61 Details of Network Scanning Activity

Graphical user interface, text, application, email Description automatically generated

Figure D-62 Additional Details of Network Scanning Activity

Graphical user interface, text Description automatically generated

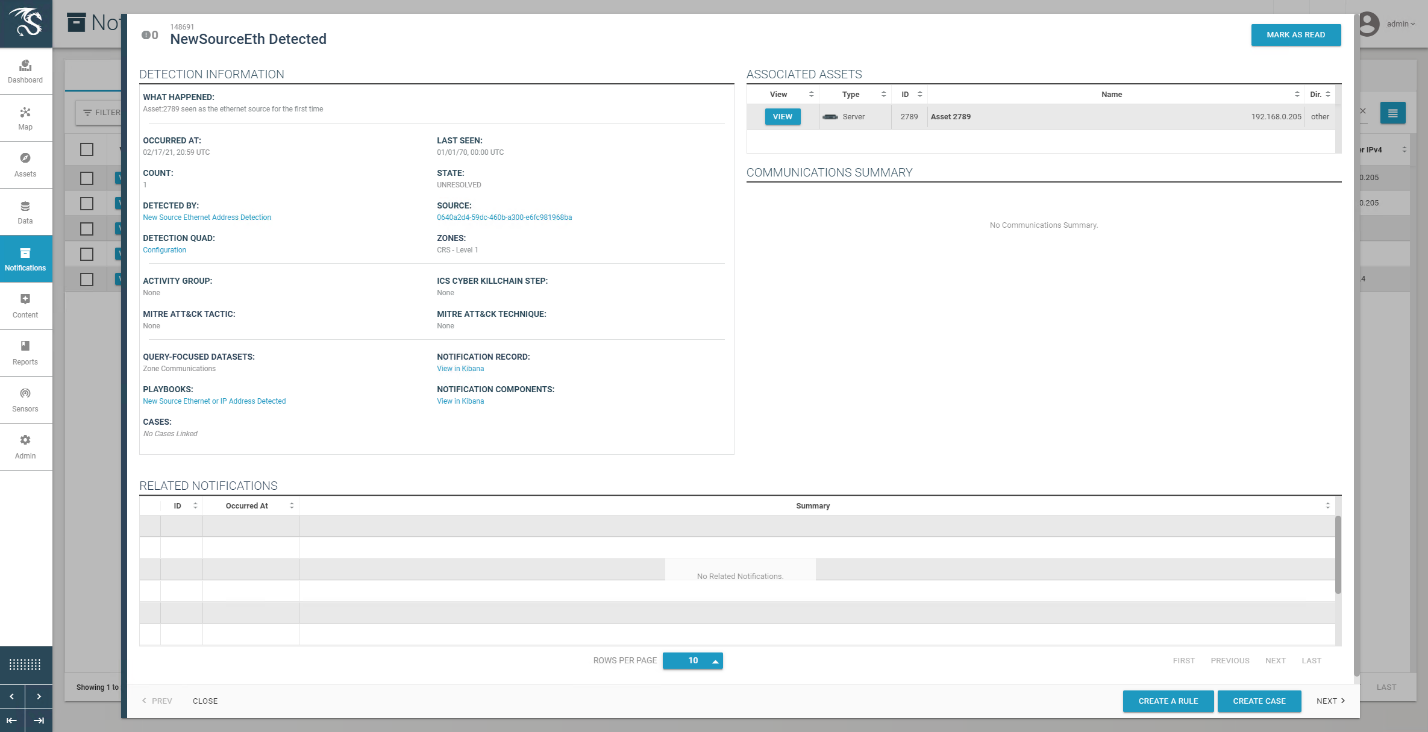

Figure D-63 Alert for New Asset on the Network

Graphical user interface, text Description automatically generated

D.5.4 Build 4

D.5.4.1 Configuration

  • Behavior Anomaly Detection: Azure Defender for IoT

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.5.4.2 Test Results

A “New Asset Detected” alert is shown on Azure Defender for IoT dashboard (Figure D-64) and on the Alert screen (Figure D-65). Figure D-66 shows the alert management options in Azure Defender for IoT. The details of the network scanning alert are shown in Figure D-67.

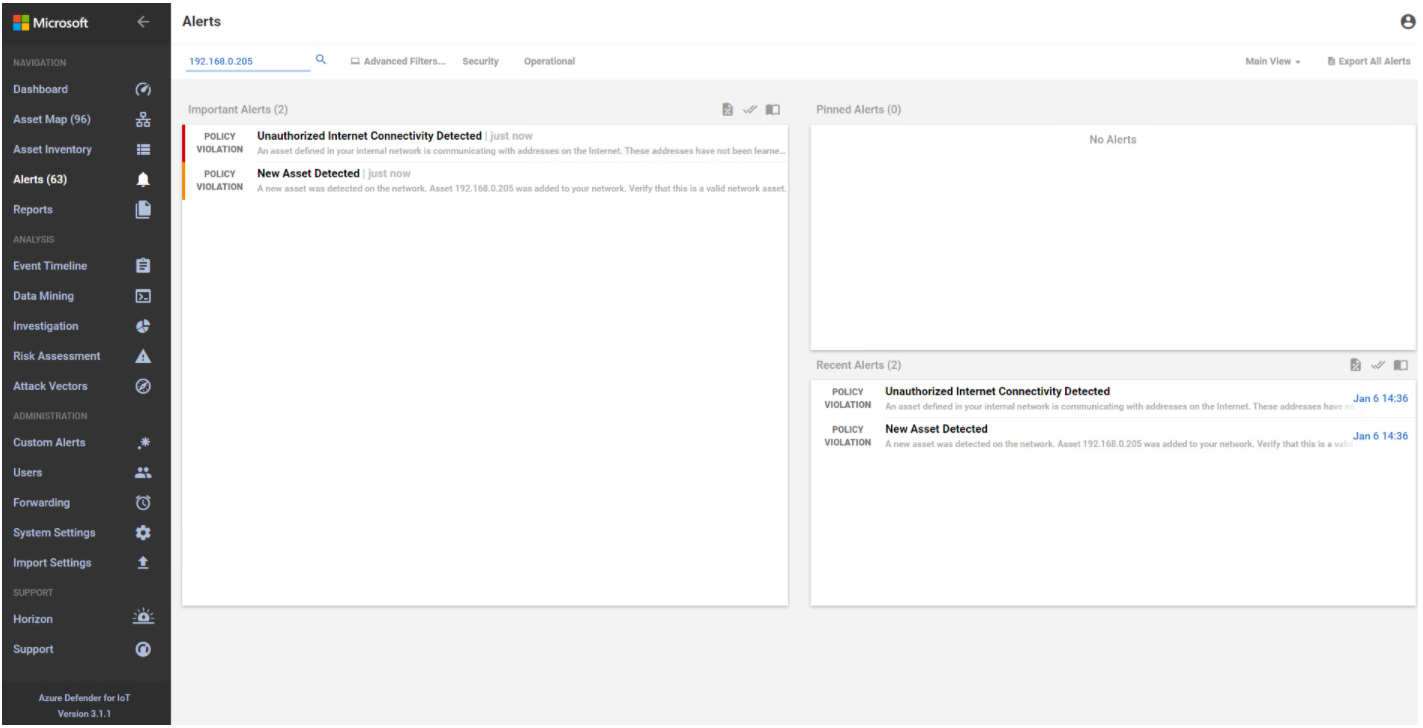

Figure D-64 Azure Defender for IoT Dashboard Showing the Alerts, Including for the New Asset

Graphical user interface, application Description automatically generated

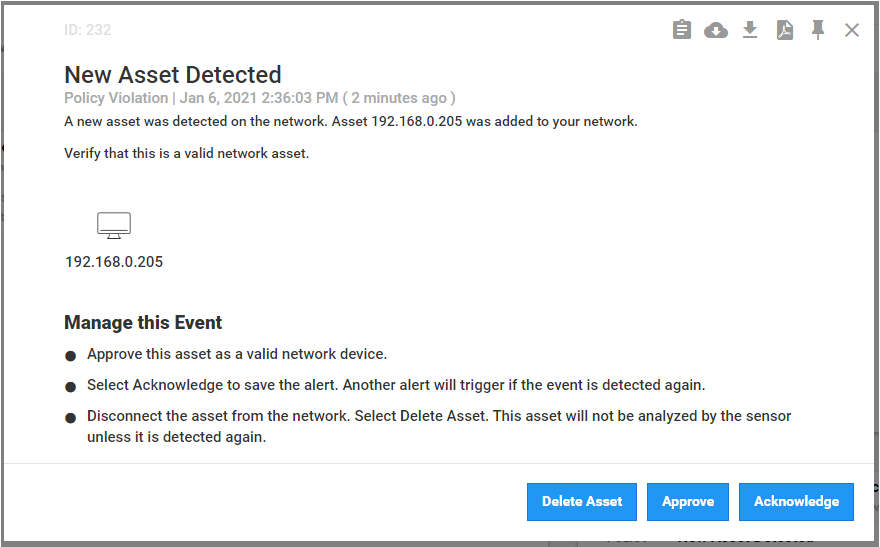

Figure D-65 Azure Defender for IoT Detects New Asset in the Environment

Graphical user interface, text, application Description automatically generated

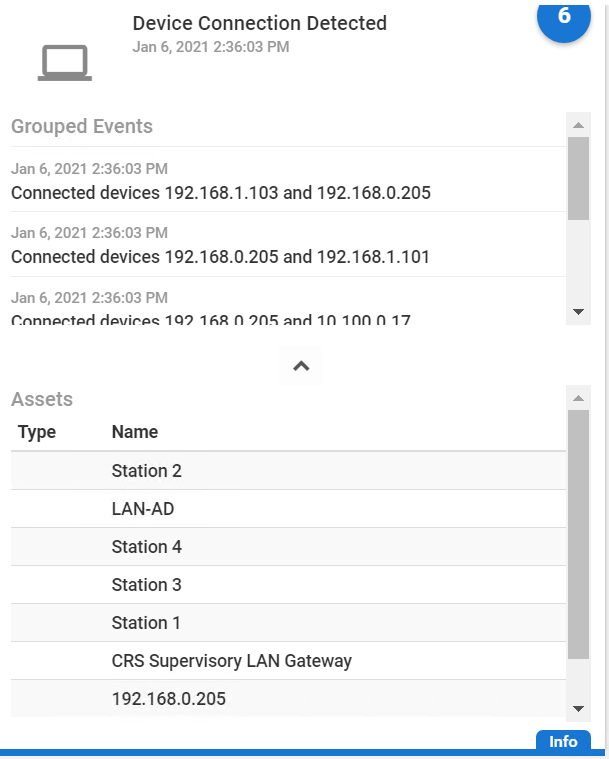

Figure D-66 Azure Defender for IoT Alert Management Options

Graphical user interface, text, application, email Description automatically generated

Figure D-67 Details for Network Scanning Alert

Graphical user interface, application Description automatically generated

D.6 Executing Scenario 6: Detect Unauthorized Device-to-Device Communications

An authorized device that is installed on the network attempts to establish an unapproved connection that is not recorded in the baseline. The expected result is the behavioral anomaly detection products alert on the non-baseline network traffic.

D.6.1 Build 1

D.6.1.1 Configuration

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.6.1.2 Test Results

The unapproved SSH traffic is detected by Tenable.ot as shown in Figure D-68.

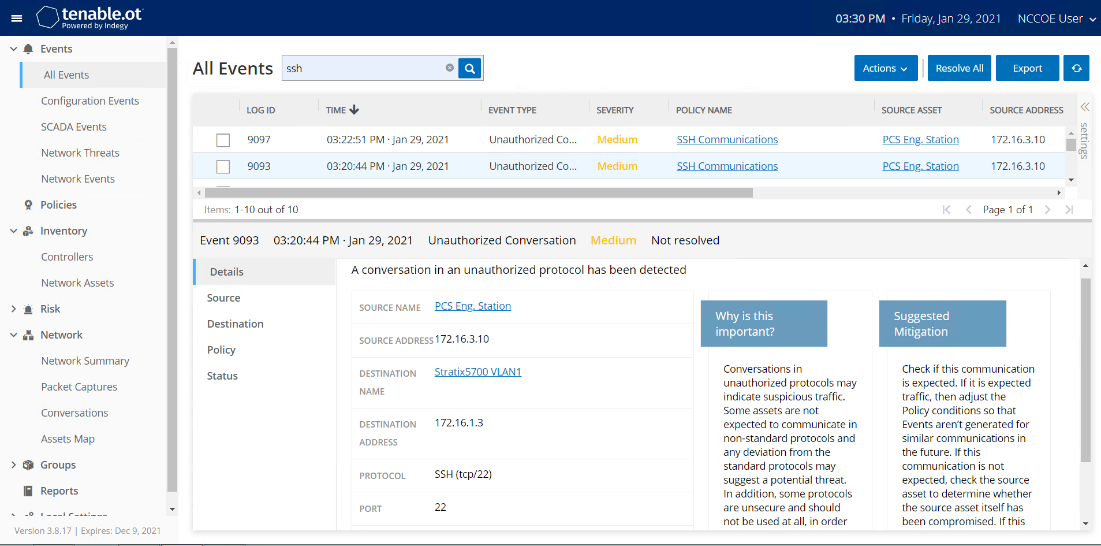

Figure D-68 Tenable.ot Event Log Showing the Unapproved SSH Traffic

Graphical user interface, text, application, email Description automatically generated

D.6.2 Build 2

D.6.2.1 Configuration

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

D.6.2.2 Test Results

SSH communication from HMI computer to the network switch is not defined in the baseline; Forescout flags this communication as shown in Figure D-69.

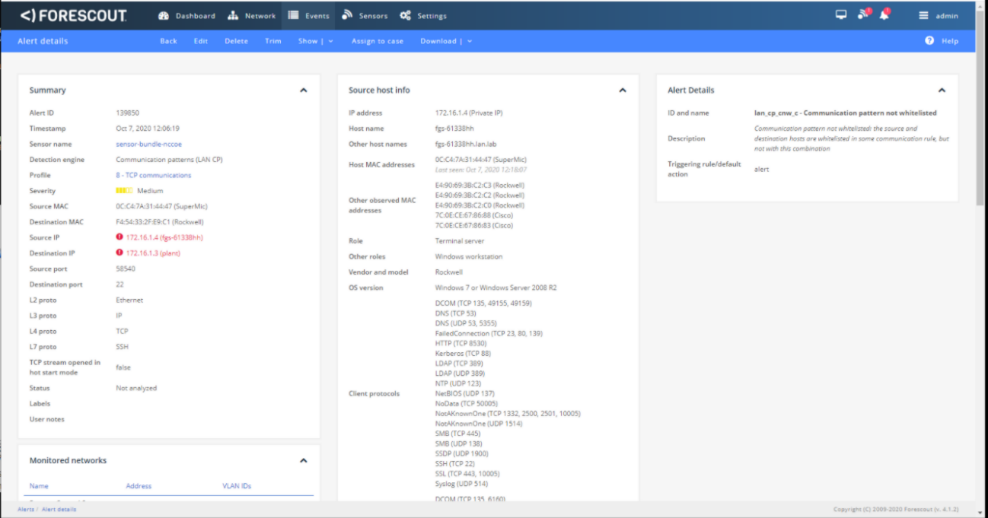

Figure D-69 Forescout Alert Showing the Unapproved SSH Traffic

Graphical user interface, application Description automatically generated

D.6.3 Build 3

D.6.3.1 Configuration

  • Behavior Anomaly Detection: Dragos

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.6.3.2 Test Results

Dragos detected the non-baseline SSH traffic as shown in Figure D-70.

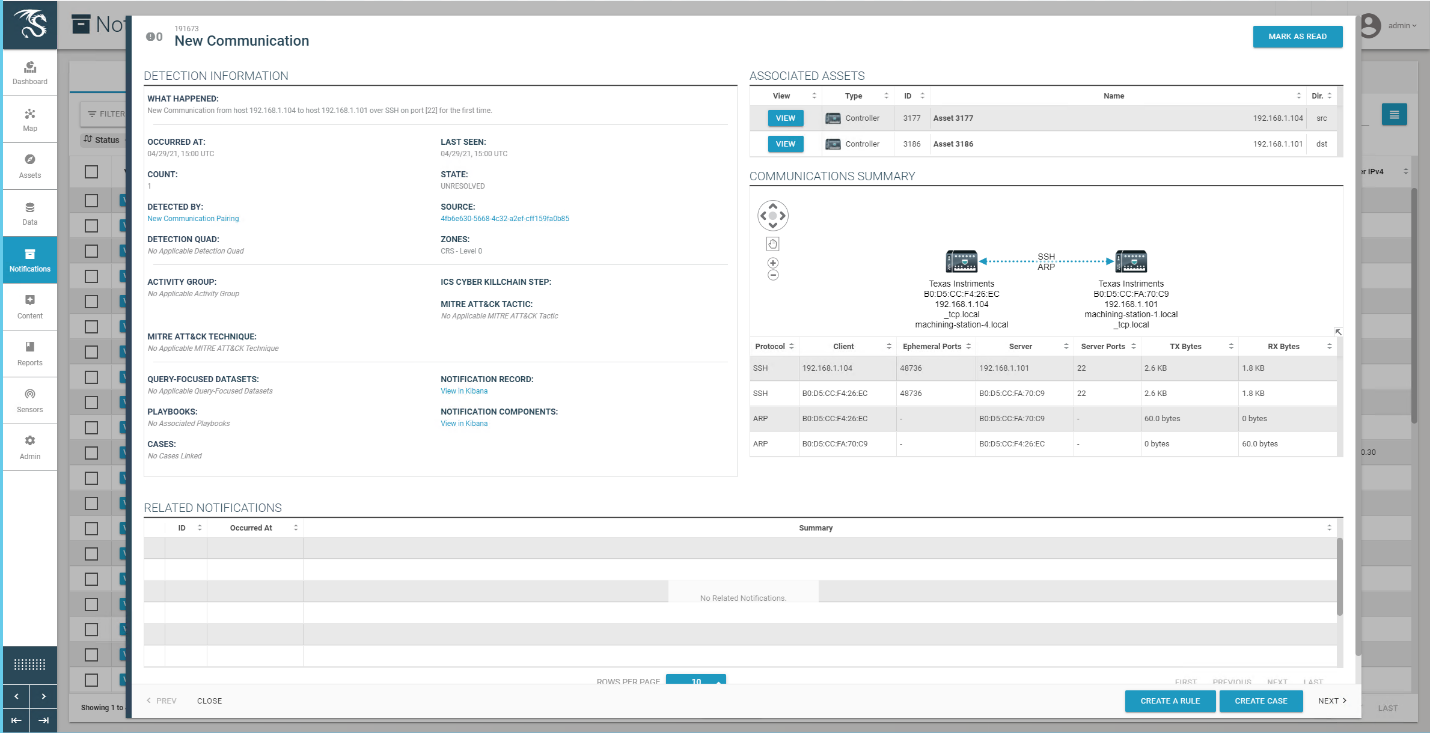

Figure D-70 Dragos Alert Showing the Unapproved SSH Connection Between Devices

Graphical user interface, application, email Description automatically generated

D.6.4 Build 4

D.6.4.1 Configuration

  • Behavior Anomaly Detection: Azure Defender for IoT

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

D.6.4.2 Test Results

A device attempts to establish a remote access connection via SSH. Azure Defender for IoT was able to detect this activity as shown in Figure D-71.

Figure D-71 Azure Defender for IoT Event Identified the Unauthorized SSH Connection

Graphical user interface, application, Teams Description automatically generated

D.7 Executing Scenario 7: Protect from Unauthorized Deletion of Files

An authorized user attempts to delete files on an engineering workstation and a shared network drive within the manufacturing system. The expected result is the file integrity checking tools in the environment alert on the deletion or prevent deletion entirely.

D.7.1 Build 1

D.7.1.1 Configuration

  • File Integrity Checking: Carbon Black

    • Agent installed on workstations and configured to communicate to the Carbon Black Server.

  • File Integrity Checking: WORMdisk

    • Network file share on server is configured to use WORMdisk.

D.7.1.2 Test Results

Carbon Black reports file deleting activities as shown in Figure D-72. GreenTec protects the files on its drive from being deleted.

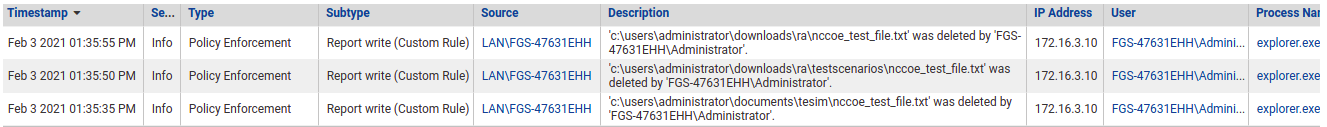

Figure D-72 Event Messages from Carbon Black Showing File Deletion Attempts

../_images/volB-image79.png

D.7.2 Build 2

D.7.2.1 Configuration

  • File Integrity Checking: Security Onion

    • The agent is installed on workstations and configured to communicate to the Security Onion Server.

  • File Integrity Checking: WORMdisk

    • Network file share on server is configured to use WORMdisk.

D.7.2.2 Test Results

Security Onion Wazuh alerts on file deletion as shown in Figure D-73. Files stored on a storage drive protected by GreenTec are protected from deletion.

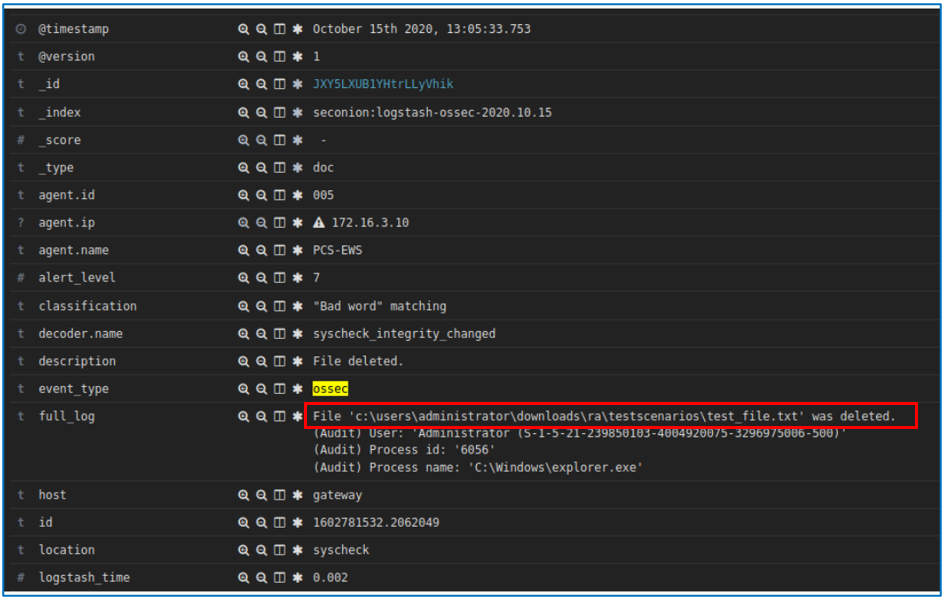

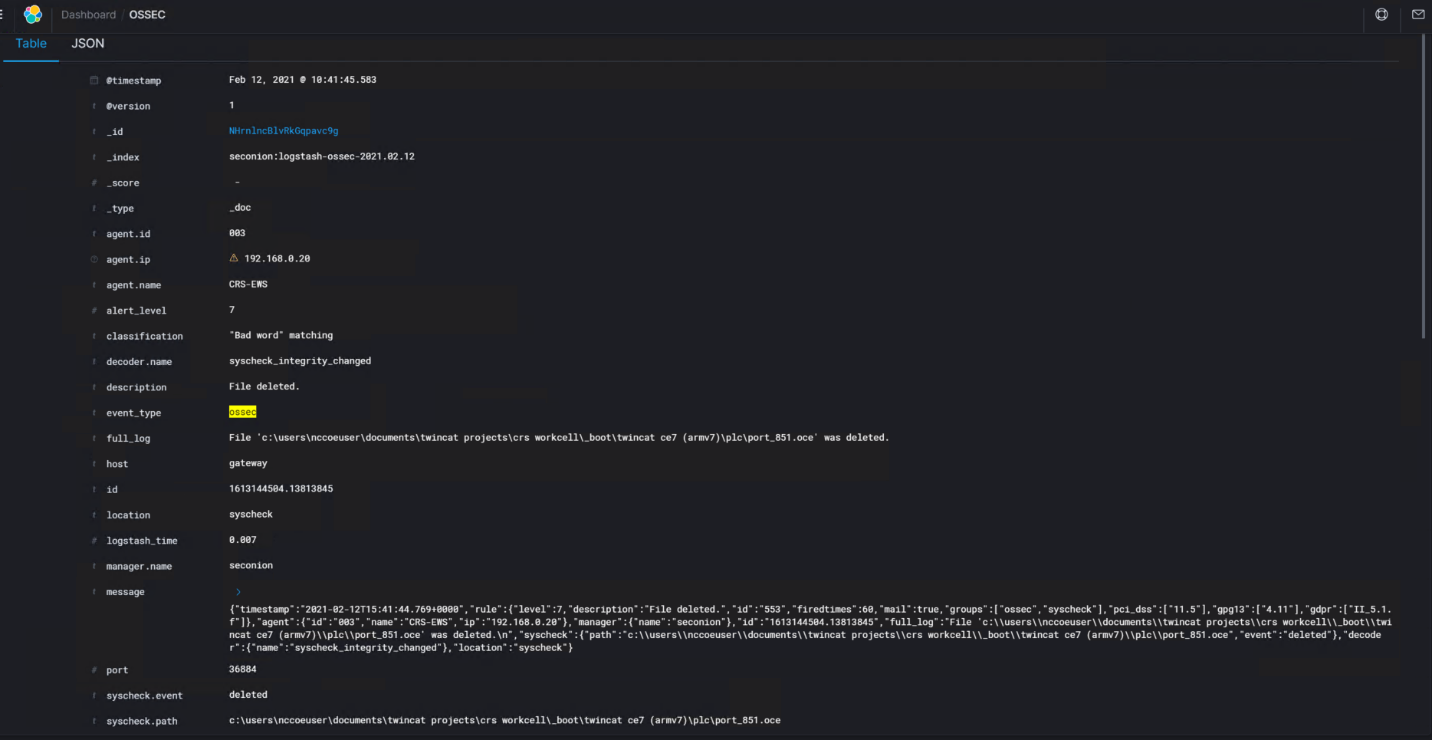

Figure D-73 Security Onion Wazuh Alert Showing a File Has Been Deleted

Text Description automatically generated

D.7.3 Build 3

D.7.3.1 Configuration

  • File Integrity Checking: Security Onion

    • Agent installed on workstations and configured to communicate to the Security Onion Server.

  • File Integrity Checking: WORMdisk

    • Network file share on server is configured to use WORMdisk.

D.7.3.2 Test Results

Security Onion Wazuh detected the file deletions as shown in the Security Onion Server log in Figure D-74. Files stored on a storage drive protected by GreenTec are protected from deletion.

Figure D-74 Alert from Security Onion for a File Deletion

Text Description automatically generated

D.7.4 Build 4

D.7.4.1 Configuration

  • File Integrity Checking: Carbon Black

    • Agent installed on workstations and configured to communicate to the Carbon Black Server.

  • File Integrity Checking: WORMdisk

    • Network file share on server is configured to use WORMdisk.

D.7.4.2 Test Results

The attempts to delete a file are detected by Carbon Black as shown in Figure D-75. Files stored on a storage drive protected by GreenTec are protected from deletion.

Figure D-75 Carbon Black Alerts Showing That a File Has Been Deleted

Text Description automatically generated with low confidence

D.8 Executing Scenario 8: Detect Unauthorized Modification of PLC Logic

An authorized user performs an unapproved or unauthorized modification of the PLC logic through the secure remote access tools. The expected result is the behavioral anomaly detection tools will detect and capture the activity, flagging it for review.

The behavior anomaly detection tools can detect program downloads to the PLC. Program download detection needs to be correlated with the maintenance management system to determine if the download was authorized and approved. This was not demonstrated as part of this scenario.

D.8.1 Build 1

D.8.1.1 Configuration

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • Remote Access: Cisco VPN

    • Configured to allow authorized VPN users to access to ConsoleWorks web interface.

  • User Authentication/User Authorization: ConsoleWorks

    • Configured for accessing the PCS environment

D.8.1.2 Test Results

In this build, a remote session Studio 5000 Logix Designer is established to perform PLC file operations as shown in Figure D-76 and Figure D-77. Tenable.ot is able to detect the PLC file modifications as shown in Figure D-78 with details shown in Figure D-79 and Figure D-80.

Figure D-76 Remote Access to Systems in PCS Network is Established Through ConsoleWorks

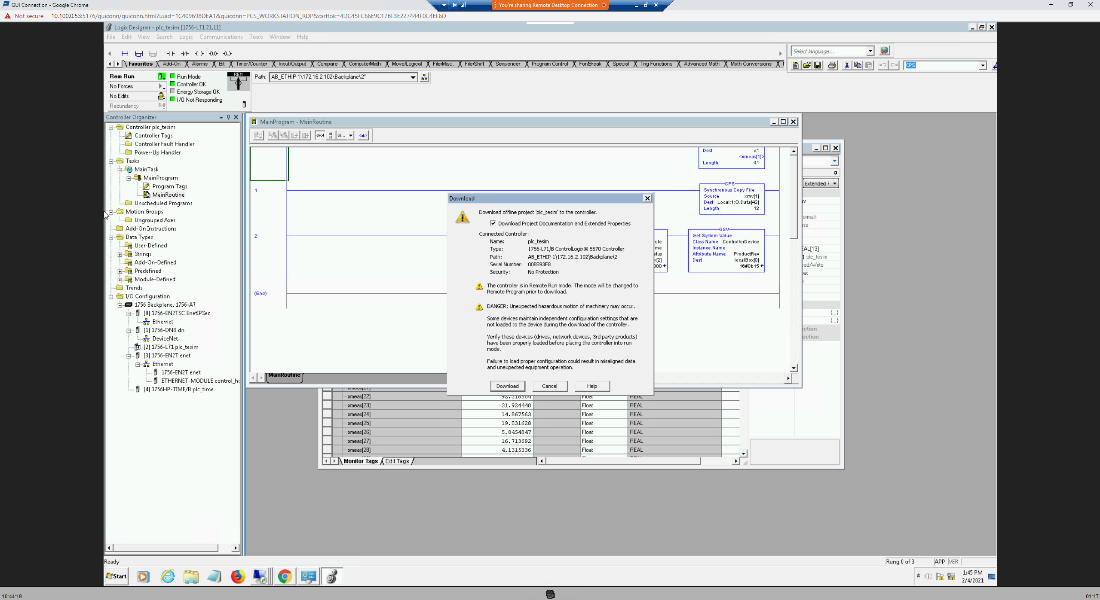

Figure D-77 Remote Session into Studio 5000 to Perform PLC File Operations

Graphical user interface, application Description automatically generated

Figure D-78 Tenable.ot Detected the Transfer of PLC Logic File to the Rockwell PLC

Graphical user interface, application Description automatically generated

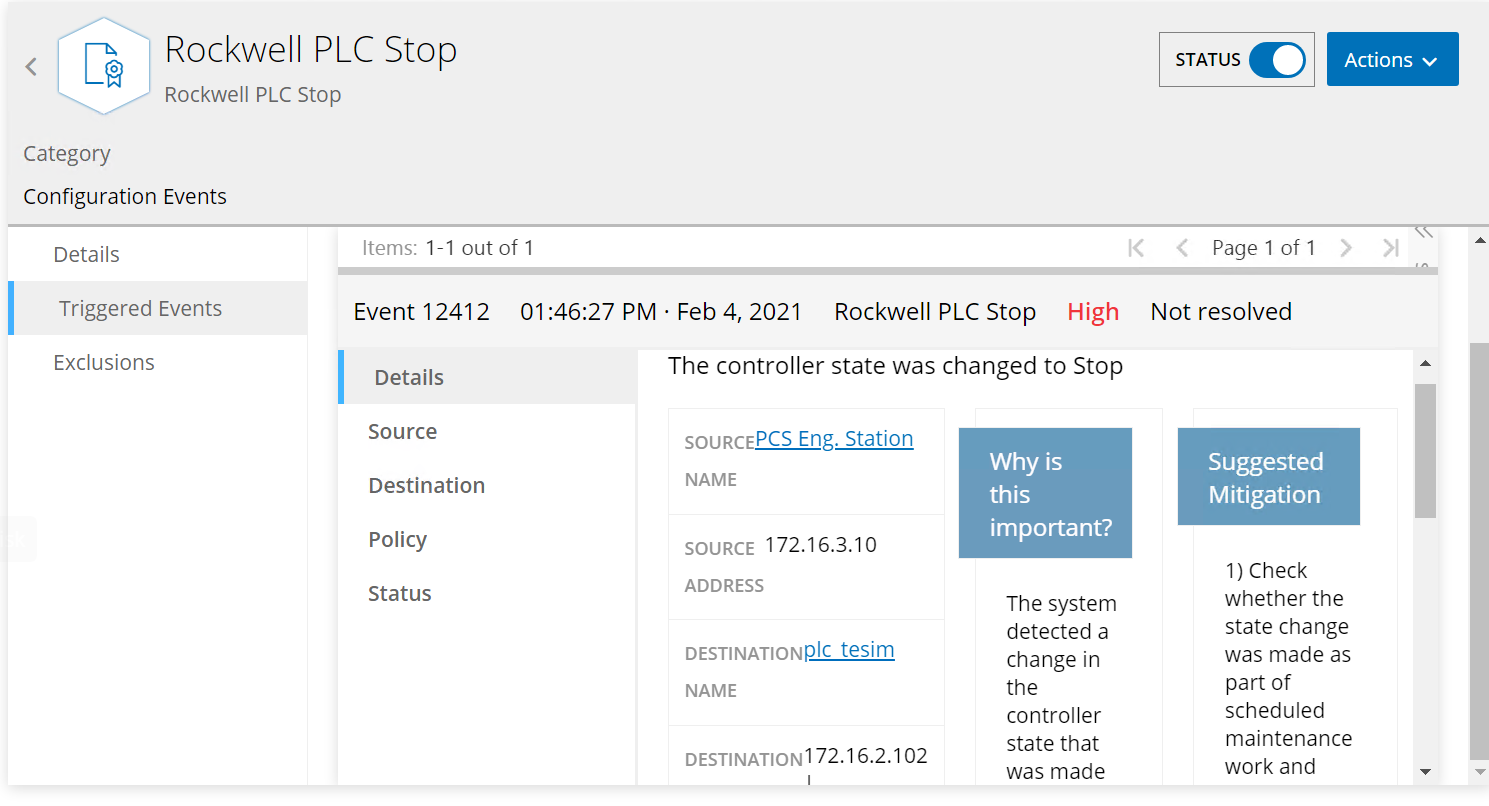

Figure D-79 Tenable.ot PLC Stop alert details

Graphical user interface, application Description automatically generated

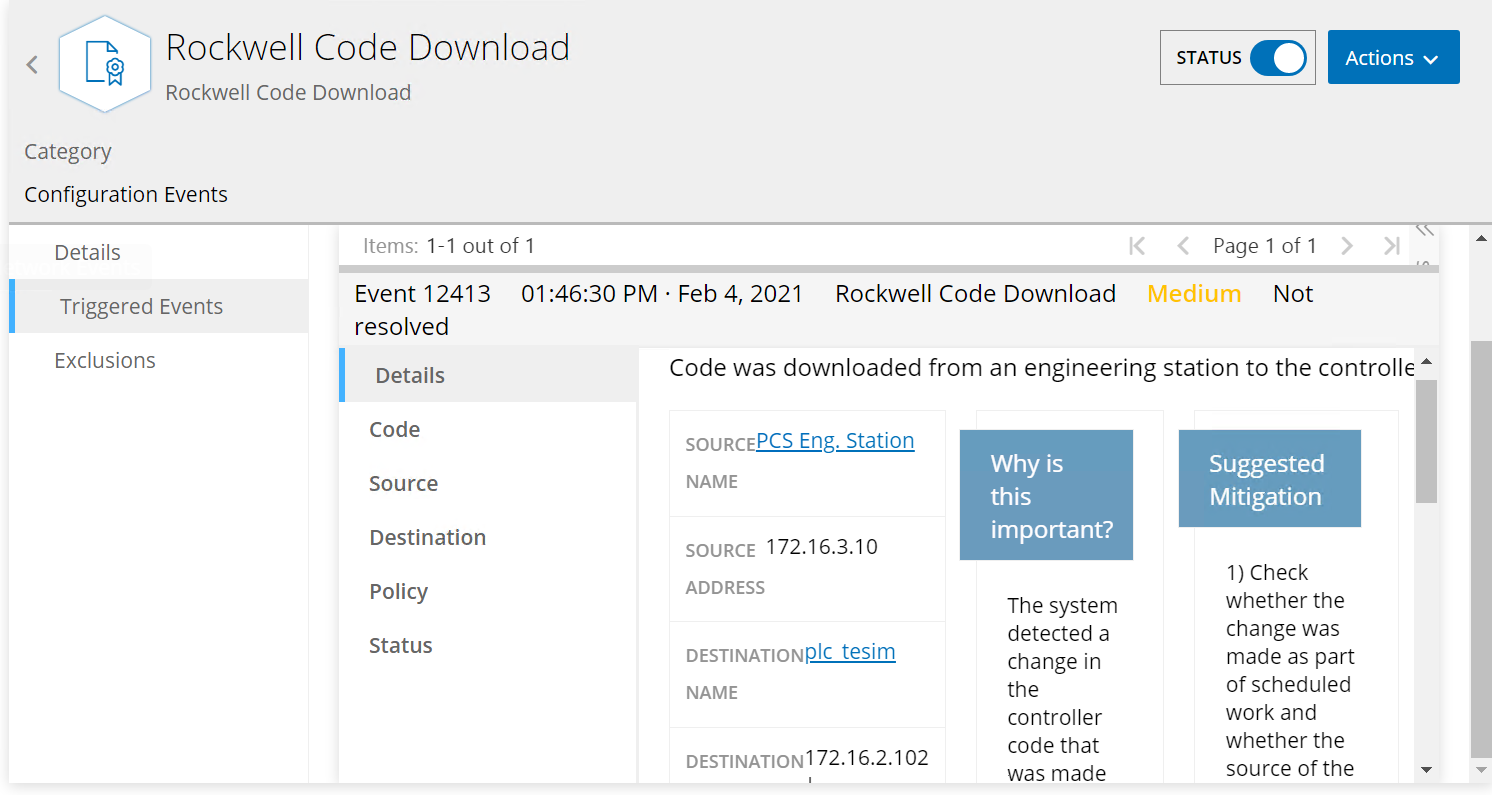

Figure D-80 Tenable.ot PLC Program Download Alert Details

Graphical user interface, application Description automatically generated

D.8.2 Build 2

D.8.2.1 Configuration

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • Remote Access, User Authentication/User Authorization: Dispel

    • Dispel VDI is configured to allow authorized users to access PCS environment through the Dispel Enclave to the Dispel Wicket.

D.8.2.2 Test Results

As shown in Figure D-81 the authorized user establishes a session into the manufacturing environment using the Dispel VDI. The user connects to the engineering workstation and launches the Studio 5000 Logix Designer as shown in Figure D-82 to modify the PLC logic. Figure D-83, Figure D-84 and Figure D-85 show that Forescout is able to detect the traffic between the engineering workstation and the PLC, including details of the Stop command and Download command.

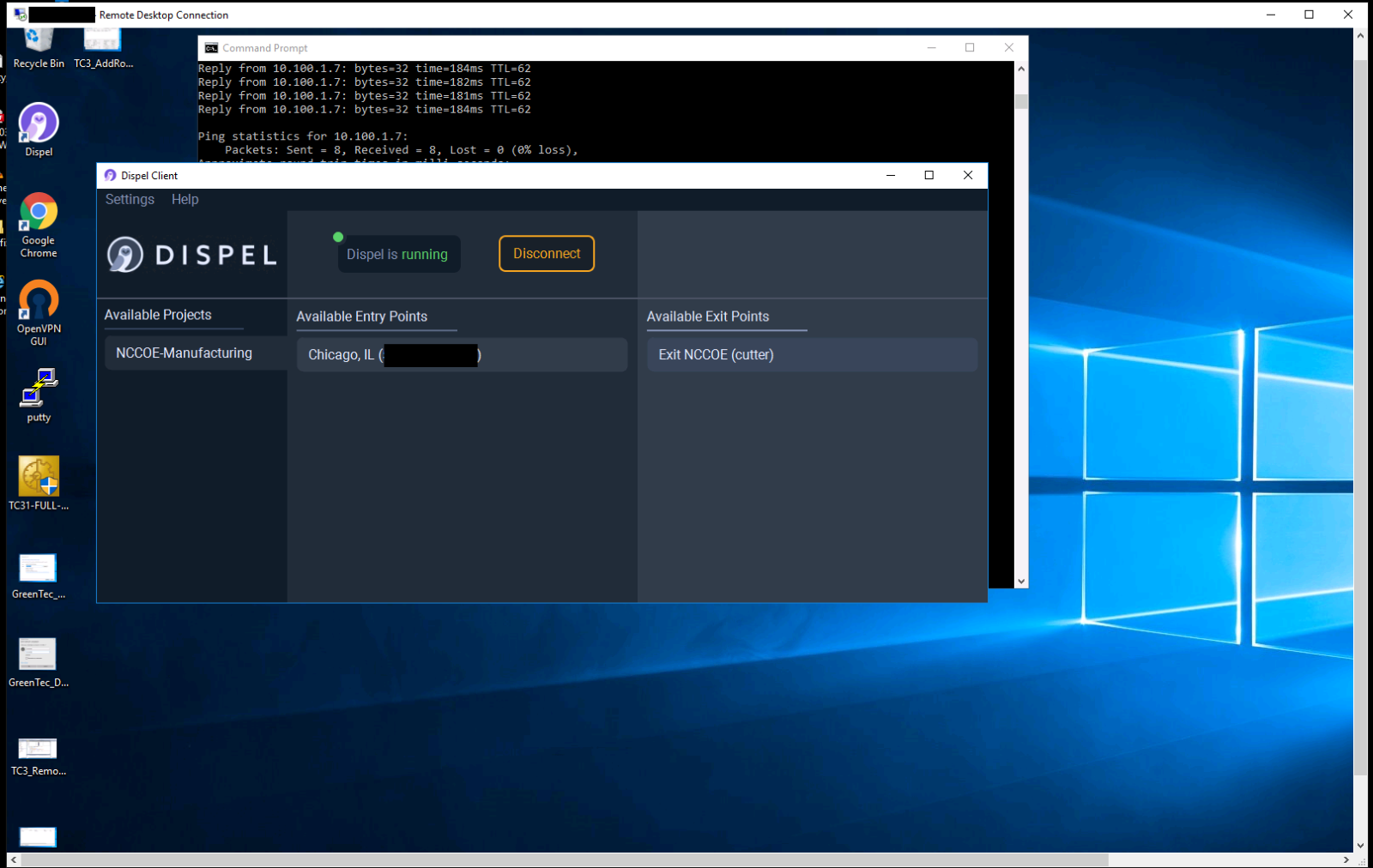

Figure D-81 Remote Access to Systems in PCS Network is Being Established Through Dispel

../_images/volB-image87.png

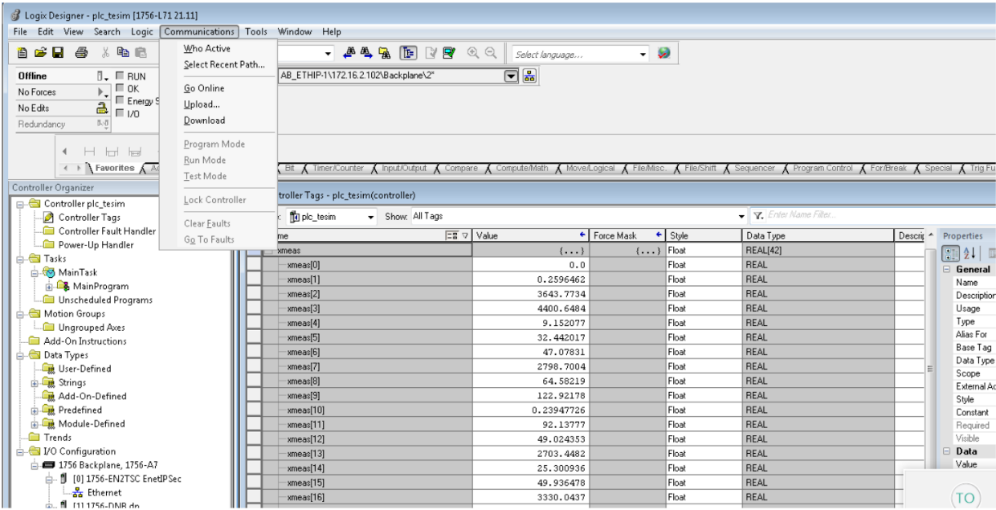

Figure D-82 Modifying the Parameters for the Allen-Bradley PLC Controller Using Studio 5000

Table Description automatically generated

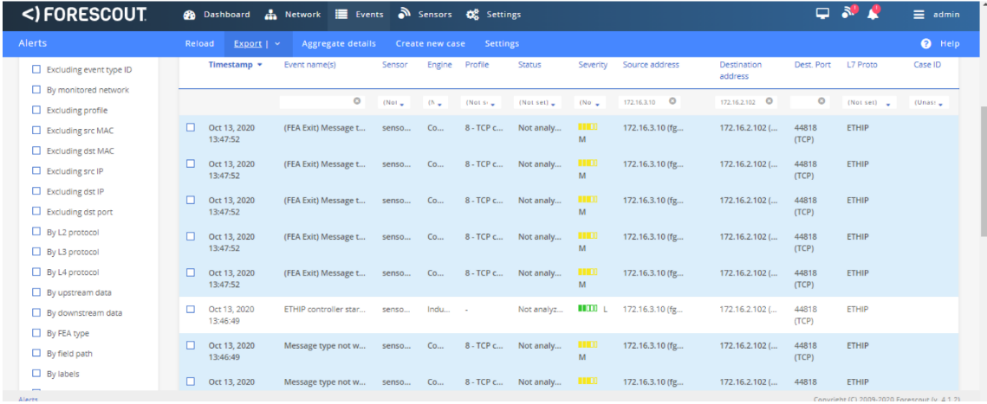

Figure D-83 Forescout Alerts Showing It Detected the Traffic Between the Engineering Workstation and the PLC

Graphical user interface, text, application, email Description automatically generated

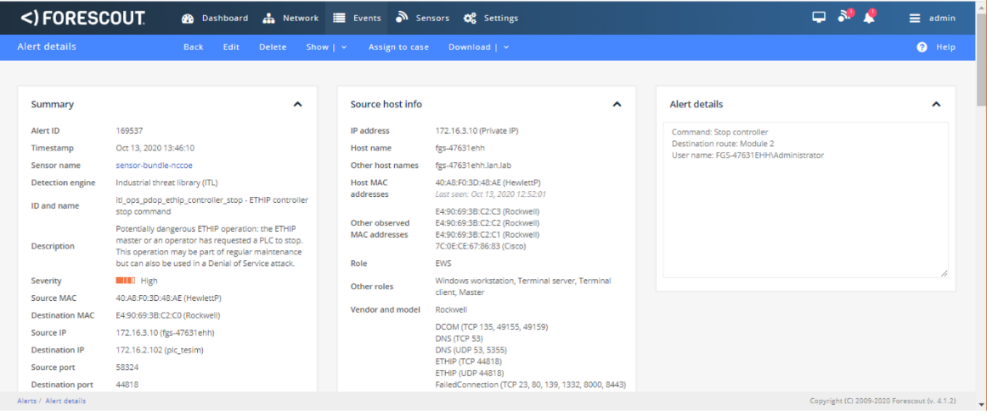

Figure D-84 Forescout Alert Details for the Stop Command Issued to the PLC

Graphical user interface, text, application, email Description automatically generated

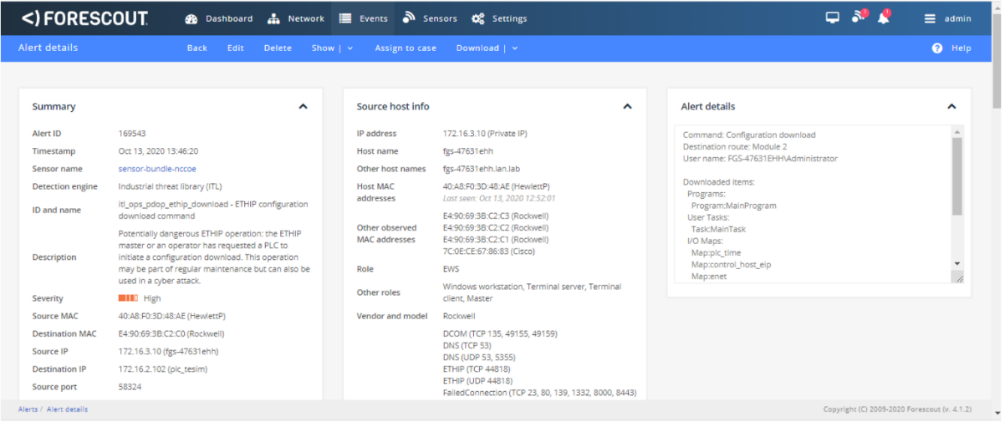

Figure D-85 Forescout Alert Details for the Configuration Download Command

Graphical user interface, text, application, email Description automatically generated

D.8.3 Build 3

D.8.3.1 Configuration

  • Behavior Anomaly Detection: Dragos

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

  • Remote Access: Cisco VPN

    • Configured to allow authorized VPN users to access to ConsoleWorks web interface.

  • User Authentication/User Authorization: ConsoleWorks

    • Configured for accessing the CRS environment.

D.8.3.2 Test Results

In this build, a remote session to the CRS workstation is established to perform PLC file operations as shown in Figure D-86 and Figure D-87. Dragos is able to detect the PLC file modifications as shown in Figure D-88 with details shown in Figure D-89.

Figure D-86 VPN Connection to the Manufacturing Environment

Graphical user interface, application Description automatically generated

Figure D-87 Remote Access is Being Established through ConsoleWorks

Graphical user interface Description automatically generated

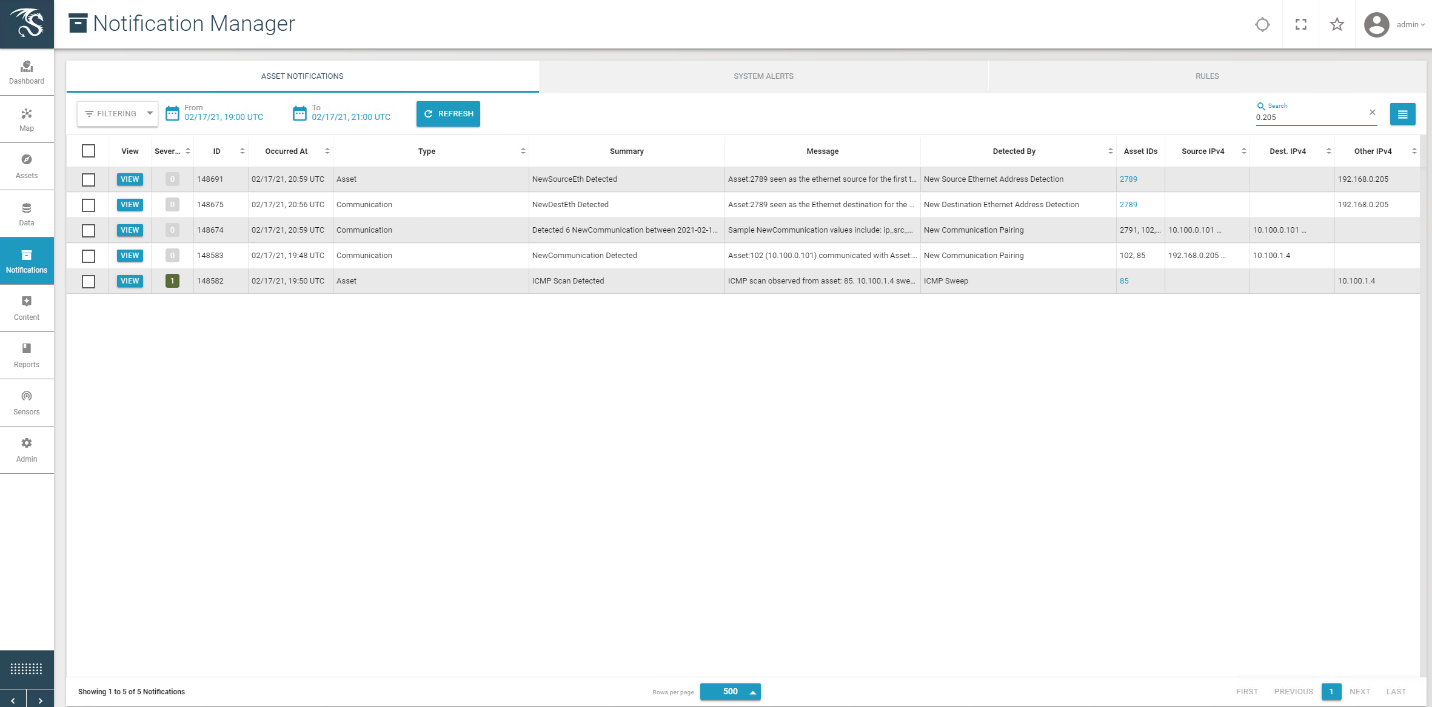

Figure D-88 Dragos Notification Manager Showing Detection of the Transfer of PLC Logic File to the Beckhoff PLC

Graphical user interface, text, application, email Description automatically generated

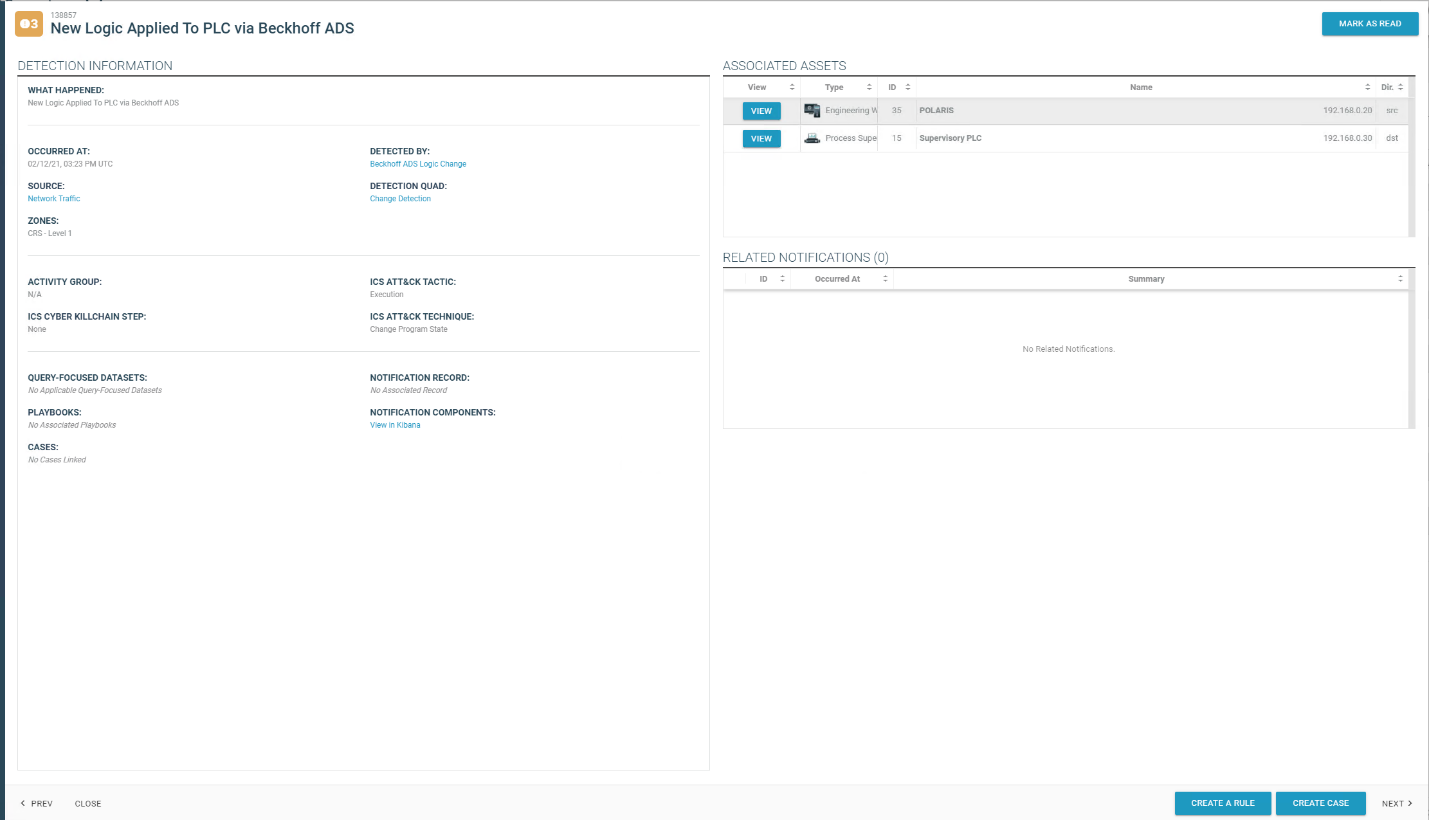

Figure D-89 Dragos Alert Details for the PLC Logic File Download

Graphical user interface, text, application, email Description automatically generated

D.8.4 Build 4

D.8.4.1 Configuration

  • Behavior Anomaly Detection: Azure Defender for IoT

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

  • Remote Access, User Authentication/User Authorization: Dispel

    • Dispel VDI is configured to allow authorized users to access the PCS environment through the Dispel Enclave to the Dispel Wicket.

D.8.4.2 Test Results

Figure D-90 and Figure D-91 show the connection to the CRS environment through the Dispel VDI. The changes to the PLC programs are detected by Azure Defender for IoT, as shown in Figure D-92, because the Dispel VDI is not an authorized programming device.

Figure D-90 Dispel VDI with Interface for Connecting Through Dispel Enclave to Dispel Wicket

Graphical user interface Description automatically generated

Figure D-91 Nested RDP Connections Showing Dispel Connection into the CRS Workstation

A screenshot of a computer Description automatically generated with medium confidence

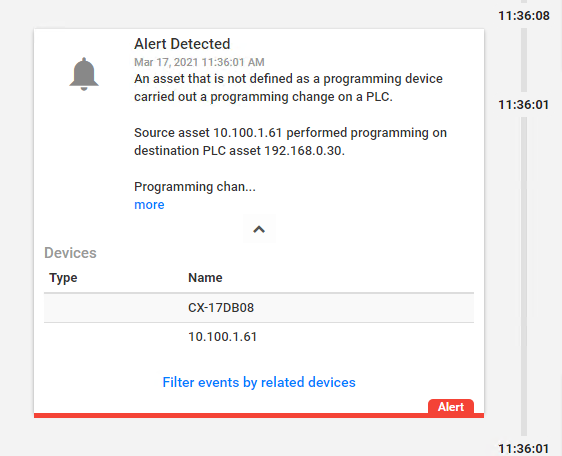

Figure D-92 Azure Defender for IoT Alert for Unauthorized PLC Programming

Graphical user interface, text, application Description automatically generated

D.9 Executing Scenario 9: Protect from Modification of Historian Data

An attacker who has already gained access to the corporate network attempts to modify historian archive data located in the DMZ. The expected result is the behavioral anomaly detection products detect the connection to the historian archive. File modification is prevented by the file integrity checking capability.

D.9.1 Build 1

D.9.1.1 Configuration

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • File Integrity Checking: ForceField

    • PI Server is configured to use ForceField drive.

D.9.1.2 Test Results

Figure D-93 shows Tenable.ot detecting the remote access connections. Figure D-94 shows that GreenTec successfully blocks the attacker from deleting archive data.

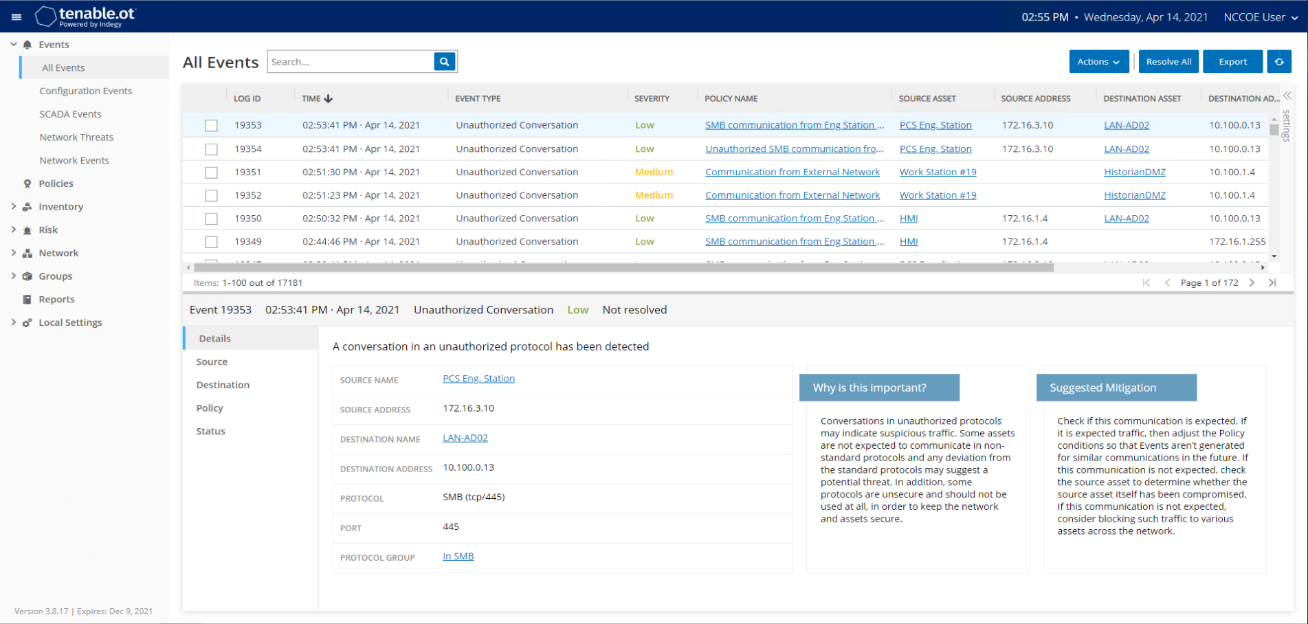

Figure D-93 Tenable.ot alert Shows SMB Connection from External Workstation to the Historian

Graphical user interface, text, application, email Description automatically generated

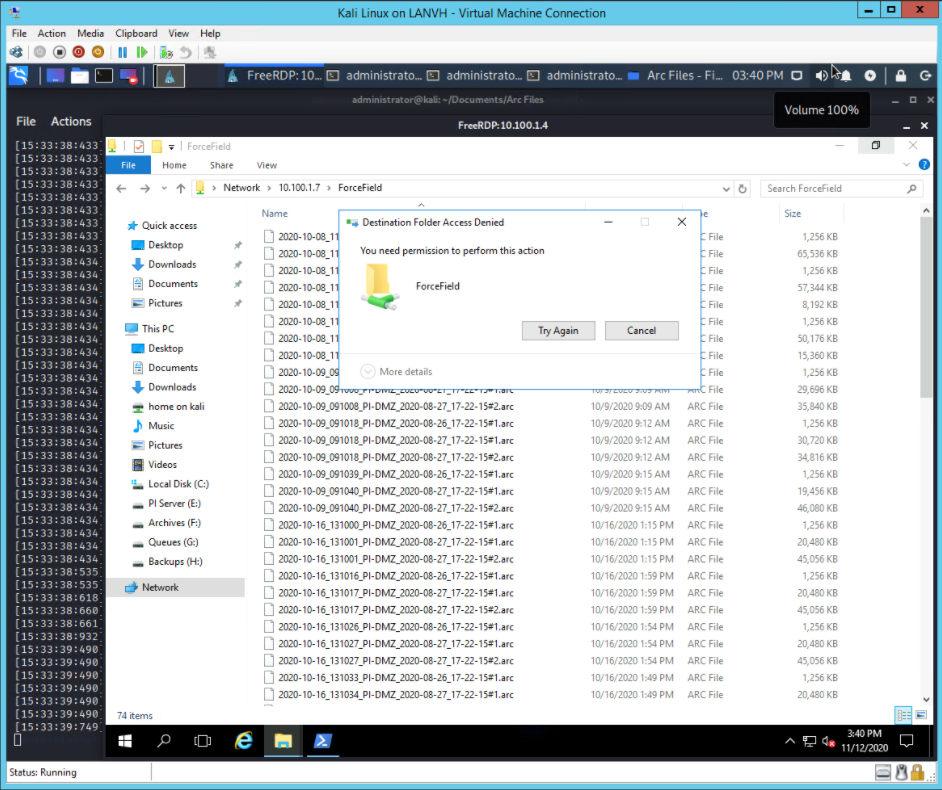

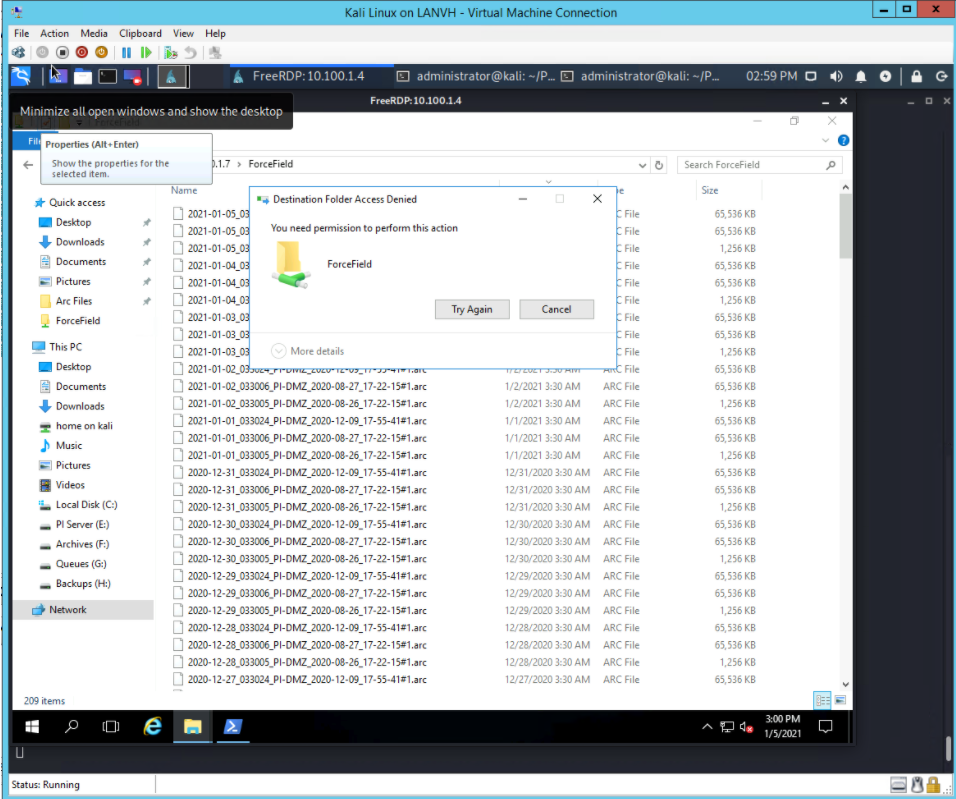

Figure D-94 GreenTec Denies Modification and Deletion File Operations in the Protected Drive

A screenshot of a computer Description automatically generated

D.9.2 Build 2

D.9.2.1 Configuration

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • File Integrity Checking: ForceField

    • PI Server is configured to use ForceField drive.

D.9.2.2. Test Results

Forescout detects the remote session as shown in Figure D-95. When the user attempts to alter a file on the protected drive, GreenTec denies the operation as shown in Figure D-96.

Figure D-95 Forescout Alert Shows Network Connection from Corporate Network to the Historian

Graphical user interface, application Description automatically generated

Figure D-96 GreenTec Denies Modification and Deletion File Operations in the Protected Drive

A screenshot of a computer Description automatically generated

D.9.3 Build 3

D.9.3.1 Configuration

  • Behavior Anomaly Detection: Dragos

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

  • File Integrity Checking: ForceField

    • PI Server is configured to use ForceField drive.

D.9.3.2 Test Results

Dragos detects the remote session as shown in Figure D-97. When the user attempts to alter a file on the protected drive, GreenTec denies the operation as shown in Figure D-98.

Figure D-97 Dragos Detection of RDP Session from an External Network to the Historian

Graphical user interface, application, email Description automatically generated

Figure D-98 GreenTec Denies Modification and Deletion File Operations in the Protected Drive

A screenshot of a computer Description automatically generated

D.9.4 Build 4

D.9.4.1 Configuration

  • Behavior Anomaly Detection: Azure Defender for IoT

    • Configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN.

  • File Integrity Checking: ForceField

    • PI Server is configured to use ForceField drive.

D.9.4.2 Test Results

The connection to the Historian data storage was detected by Azure Defender for IoT as shown in Figure D-99. Figure D-100 shows a Windows error message after attempting to overwrite protected Historian files.

Figure D-99 Azure Defender for IoT Event Timeline Showing the Remote Access Connection to the Historian

A screenshot of a computer Description automatically generated

Figure D-100 GreenTec Denies Modification and Deletion File Operations in the Protected Drive

A screenshot of a computer Description automatically generated

D.10 Executing Scenario 10: Detect Sensor Data Manipulation

A sensor in the manufacturing system sends out-of-range data values to the Historian. The expected result is the behavioral anomaly detection (data historian) capability alerts on out-of-range data.

D.10.1 All Builds

D.10.1.1 Configuration

  • Behavior Anomaly Detection: PI Server

    • Configured to receive process data from across the manufacturing system.

  • Configured to perform analysis on incoming data points.

D.10.1.2 Test Results

The Historian process monitoring capabilities provided by the PI System are able to monitor out-of-range sensor readings and generate alerts. Figure D-101 shows the PI Server’s event frame alerts on the out-of-range reactor pressure readings in the PCS.

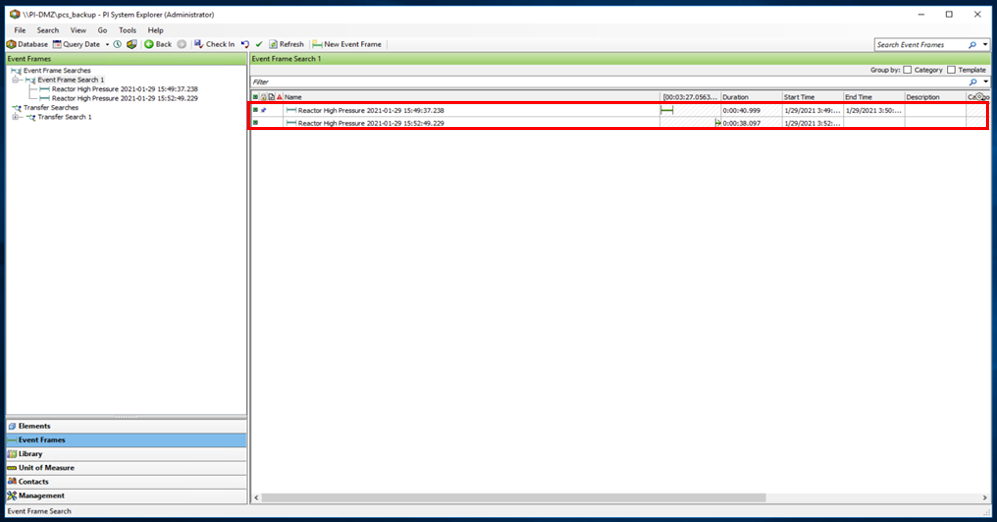

Figure D-101 PI Server’s Event Frames Showing Out-of-Range Sensor Readings for the Reactor Pressure

Graphical user interface, application Description automatically generated

D.11 Executing Scenario 11: Detect Unauthorized Firmware Modification

An authorized user accesses the system remotely and performs an unauthorized firmware change on a PLC. The expected result is the behavioral anomaly detection tools will alert on the new firmware.

The behavior anomaly detection tools can detect changes to the firmware. Firmware change detection needs to be correlated with the maintenance management system to determine if the firmware change was authorized and approved. This was not demonstrated as part of this scenario.

D.11.1 Build 1

D.11.1.1 Configuration

  • Behavior Anomaly Detection: Tenable.ot

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2.

  • Remote Access: Cisco VPN

    • Configured to allow authorized VPN users access to ConsoleWorks web interface.

  • User Authentication/User Authorization: ConsoleWorks

    • Configured for accessing the PCS environment.

D.11.1.2 Test Results

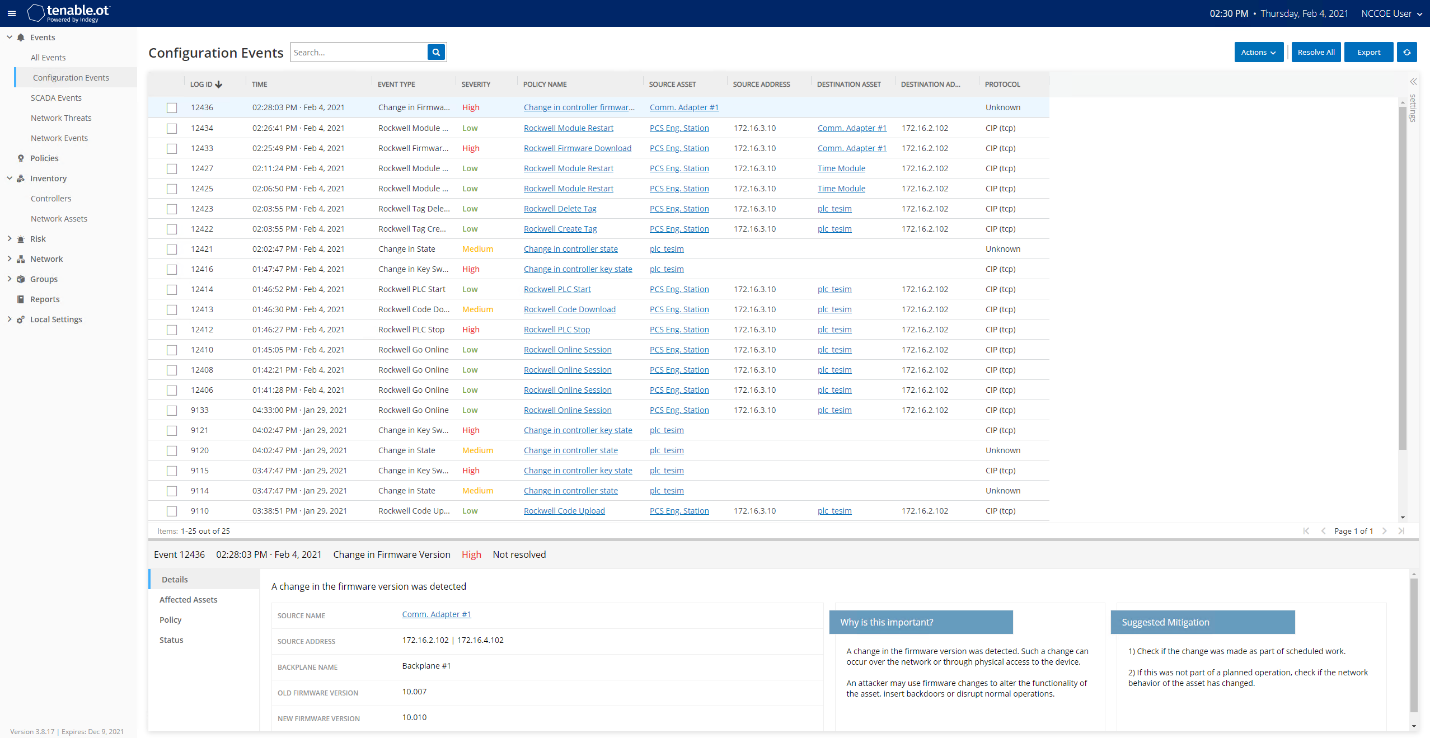

Figure D-102 depicts the list of the events detected by Tenable.ot resulting from the firmware change. The details of one of the alerts are shown in Figure D-103.

Figure D-102 Tenable.ot Detects a Collection of Events Generated by a Firmware Change

Graphical user interface, application Description automatically generated

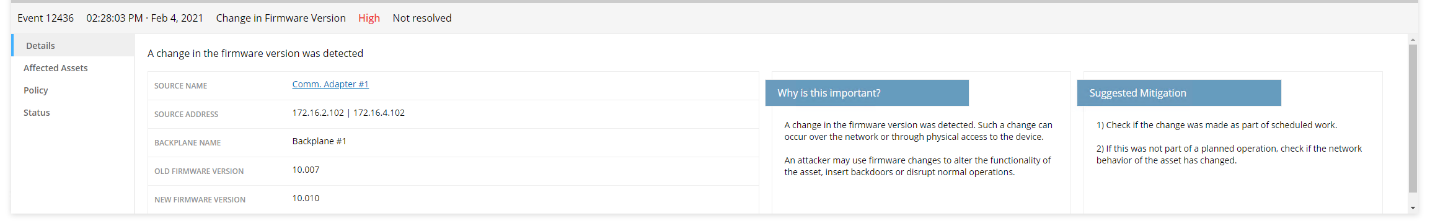

Figure D-103 Details for One of the Alerts Showing the Firmware Change

Graphical user interface, application, Teams Description automatically generated

D.11.2 Build 2

D.11.2.1 Configuration

  • Behavior Anomaly Detection: eyeInspect

    • Configured to receive packet streams from DMZ, Testbed LAN, and PCS VLAN 1 and 2

  • Remote Access, User Authentication/User Authorization: Dispel

    • Dispel VDI is configured to allow authorized users to access the PCS environment through the Dispel Enclave to the Dispel Wicket.

D.11.2.2 Test Results

Figure D-104 shows the activities detected by Forescout as a result of firmware change. Figure D-104, Figure D-105 and Figure D-106 show more details on the alerts associated with the firmware update.

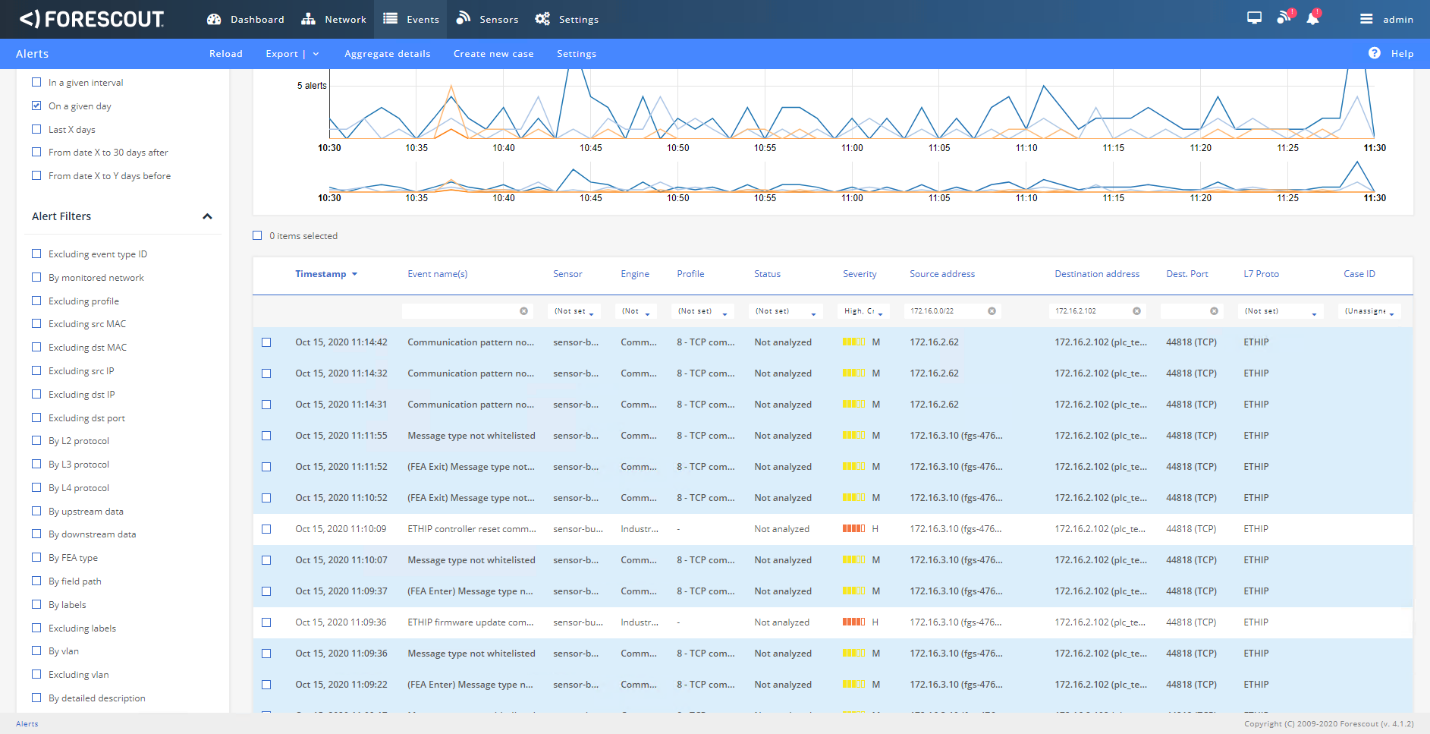

Figure D-104 Forescout Detects a Collection of Alerts Associated with the Firmware Change

A screenshot of a computer Description automatically generated

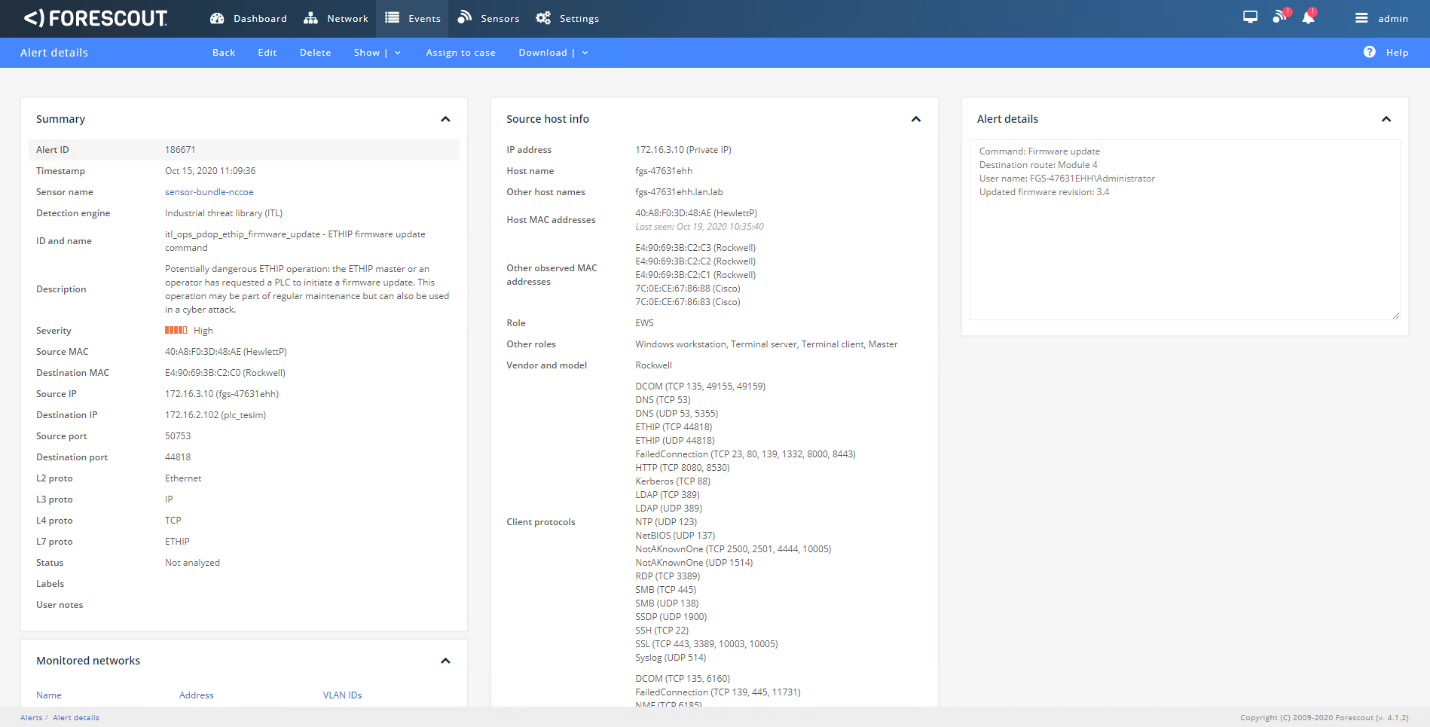

Figure D-105 Alert Details Detected by Forescout for the Firmware Change

Graphical user interface, application, Teams Description automatically generated

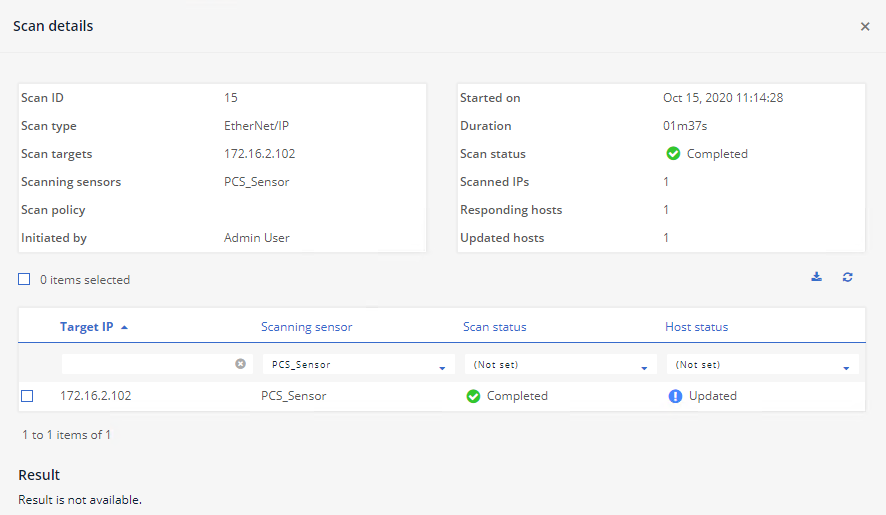

Figure D-106 ICS Patrol Scan Results Showing a Change Configuration was Made

Graphical user interface, application Description automatically generated

D.11.3 Build 3

D.11.3.1 Configuration

  • Remote Access: Cisco VPN

    • configured to allow authorized VPN users to access only the ConsoleWorks web interface

  • User Authentication/User Authorization: ConsoleWorks

    • configured to allow remote access to hosts in manufacturing environment

  • Behavior Anomaly Detection: Dragos

    • configured to receive packet streams from DMZ, Testbed LAN, Supervisory LAN, and Control LAN

D.11.3.2 Test Results

Dragos detects the change to the firmware as shown on the dashboard in Figure D-107 with details shown in Figure D-108.

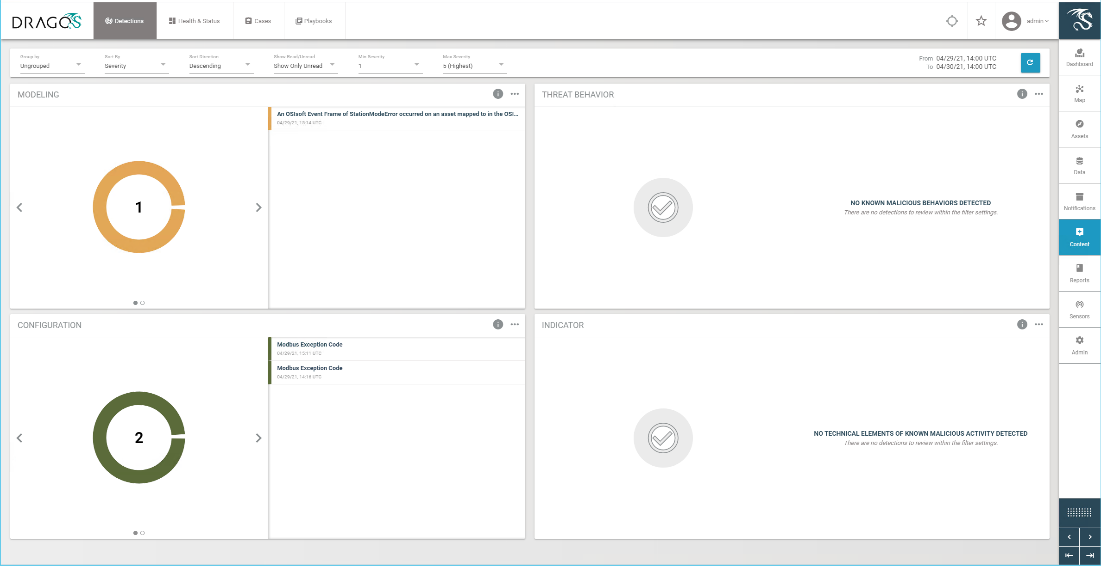

Figure D-107 Dragos Dashboard Showing an Alert for Firmware Change

Graphical user interface Description automatically generated with low confidence

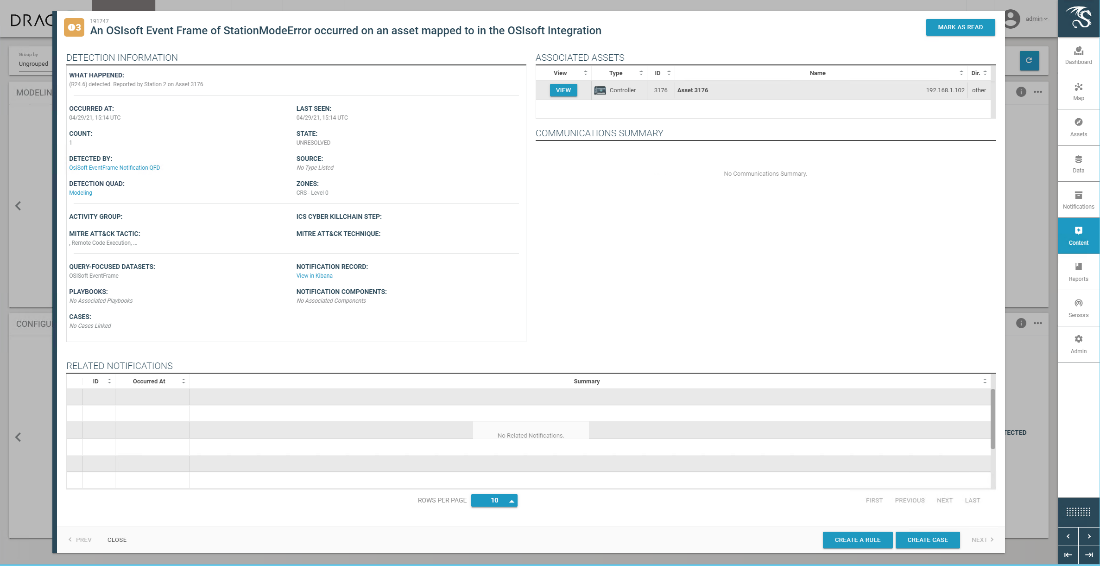

Figure D-108 Details for Firmware Change Alert

Graphical user interface, application Description automatically generated

D.11.4 Build 4

D.11.4.1 Configuration

  • Behavior Anomaly Detection: Azure Defender for IoT

    • configured to receive packet streams from the DMZ, Testbed LAN, Supervisory LAN, and Control LAN

  • Remote Access, User Authentication/User Authorization: Dispel

    • Dispel VDI is configured as the engineering workstation to connect through the Dispel Enclave to the Dispel Wicket to manage the Beckhoff PLC.

D.11.4.2 Test Results

Azure Defender for IoT alerts on the firmware update as shown below in Figure D-109.

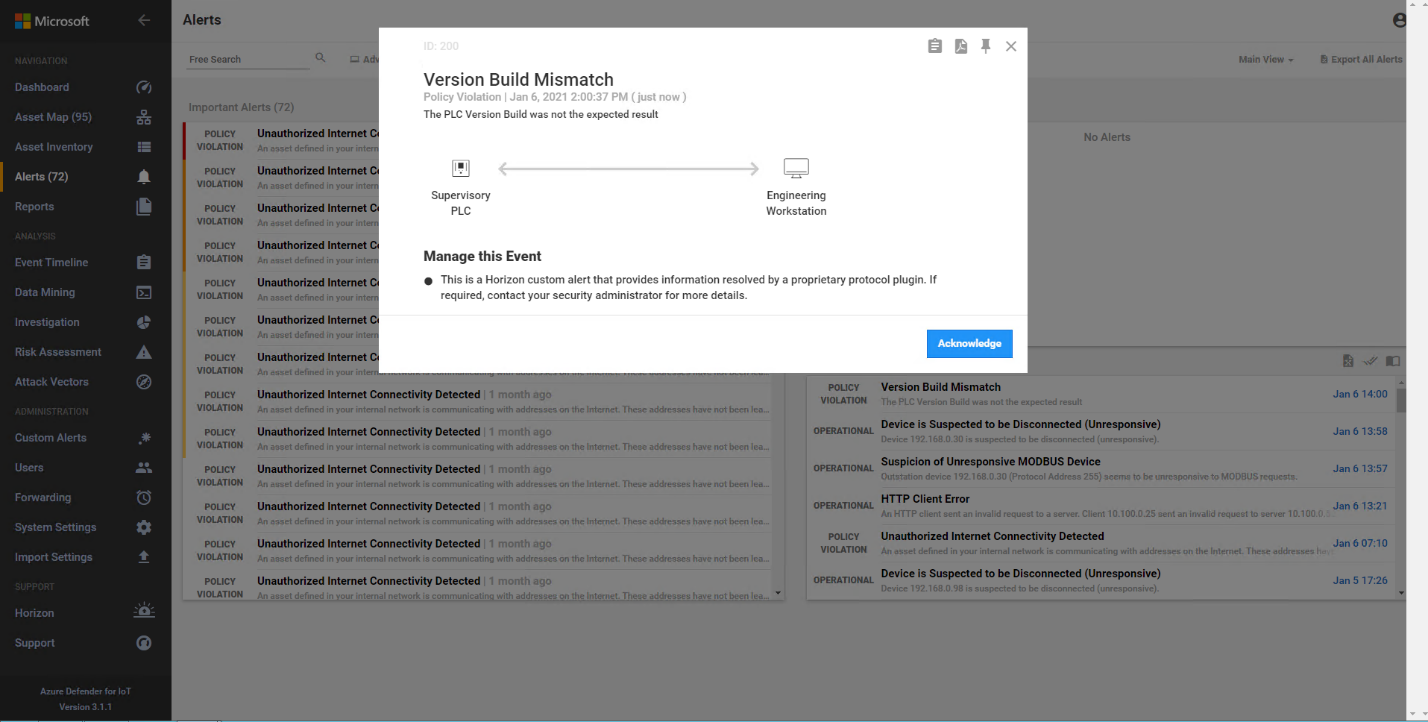

Figure D-109 Azure Defender for IoT Alert Showing a Version Mismatch in the Firmware Build

Graphical user interface, text, application Description automatically generated

Appendix E Benefits of IoT Cybersecurity Capabilities

The National Institute of Standards and Technology’s (NIST’s) Cybersecurity for the Internet of Things (IoT) program supports development and application of standards, guidelines, and related tools to improve the cybersecurity of connected devices and the environments in which they are deployed. By collaborating with stakeholders across government, industry, international bodies, and academia, the program aims to cultivate trust and foster an environment that enables innovation on a global scale.

Cyber-physical components, including sensors and actuators, are being designed, developed, deployed, and integrated into networks at an ever-increasing pace. Many of these components are connected to the internet. IoT devices combine network connectivity with the ability to sense or affect the physical world. Stakeholders face additional challenges with applying cybersecurity controls as cyber-physical devices are further integrated.

NIST’s Cybersecurity for IoT program has defined a set of device cybersecurity capabilities that device manufacturers should consider integrating into their IoT devices and that consumers should consider enabling/configuring in those devices. Device cybersecurity capabilities are cybersecurity features or functions that IoT devices or other system components (e.g., a gateway, proxy, IoT platform) provide through technical means (e.g., device hardware and software). Many IoT devices have limited processing and data storage capabilities and may not be able to provide these device cybersecurity capabilities on their own; instead, they may rely on other system components to provide these technical capabilities on their behalf. Nontechnical supporting capabilities are actions that a manufacturer or third-party organization performs in support of the cybersecurity of an IoT device. Examples of nontechnical support include providing information about software updates, instructions for configuration settings, and supply chain information.

Used together, device cybersecurity capabilities and nontechnical supporting capabilities can help mitigate cybersecurity risks related to the use of IoT devices while assisting customers in achieving their goals. If IoT devices are integrated into industrial control system (ICS) environments, device cybersecurity capabilities and nontechnical supporting capabilities can assist in securing the ICS environment.

E.1 Device Capabilities Mapping

Table E-1 lists device cybersecurity capabilities and nontechnical supporting capabilities as they map to the NIST Cybersecurity Framework Subcategories of particular importance to this project. It is acknowledged that IoT devices vary in their capabilities, and there may not be a clear delineation between the device cybersecurity capabilities that are provided by the IoT devices and those provided by another system component. It is also understood that the capabilities of cyber-physical components are evolving, so many of the mappings are not necessarily exact.

In this project, the focus was on the engineering workstations and not on the manufacturing components. The mapping presented in Table E-1 is a summary of both technical and nontechnical capabilities that would enhance the security of a manufacturing environment. It is acknowledged that many of the device cybersecurity capabilities may not be available in modern sensors and actuators and that other system elements (e.g., proxies, gateways) or other risk mitigation strategies (e.g., network segmentation) may be necessary.

Table E-1 Mapping of Device Cybersecurity Capabilities and Nontechnical Supporting Capabilities to NIST Cybersecurity Framework Subcategories of the ICS Project

Cybersecurity Framework v1.1 Subcategory

Device Cybersecurity Capabilities

Manufacturer Nontechnical Supporting Capabilities

NIST SP 800-53 Rev.5

PR.AC-1: Identities and credentials are issued, managed, verified, revoked, and audited for authorized devices, users, and processes.

  • Ability to uniquely identify the IoT device logically.

  • Ability to uniquely identify a remote IoT device.

  • Ability for the device to support a unique device ID.

  • Ability to configure IoT device access control policies using IoT device identity.

  • Ability to verify the identity of an IoT device.

  • Ability to add a unique physical identifier at an external or internal location on the device authorized entities can access.

  • Ability to set and change authentication configurations, policies, and limitations settings for the IoT device.

  • Ability to create unique IoT device user accounts.

  • Ability to identify unique IoT device user accounts.

  • Ability to create organizationally defined accounts that support privileged roles with automated expiration conditions.

  • Ability to establish organizationally defined user actions for accessing the IoT device and/or device interface.

  • Ability to enable automation and reporting of account management activities.

  • Ability to establish conditions for shared/group accounts on the IoT device.

  • Ability to administer conditions for shared/group accounts on the IoT device.

  • Ability to restrict the use of shared/group accounts on the IoT device according to organizationally defined conditions.

  • Providing details for how to establish unique identification for each IoT device associated with the system and critical system components within which it is used.

  • Providing communications and documentation detailing how to perform account management activities, using the technical IoT device capabilities, or through supporting systems and/or tools.

  • Providing the details necessary to establish and implement unique identification for each IoT device associated with the system and critical system components within which it is used.

  • Providing the details necessary to require unique identifiers for each IoT device associated with the system and critical system components within which it is used.

  • Providing education explaining how to establish and enforce approved authorizations for logical access to IoT device information and system resources.

  • Providing education explaining how to control access to IoT devices implemented within IoT device customer information systems.

  • Providing education explaining how to enforce authorized access at the system level.

AC-2
IA-2
IA-4
IA-5
IA-8
IA-12

PR.AC-3: Remote access is managed.

  • Ability to configure IoT device access control policies using IoT device identity.

  • Ability for the IoT device to differentiate between authorized and unauthorized remote users.

  • Ability to authenticate external users and systems.

  • Ability to securely interact with authorized external, third-party systems.

  • Ability to identify when an external system meets the required security requirements for a connection.

  • Ability to establish secure communications with internal systems when the device is operating on external networks.

  • Ability to establish requirements for remote access to the IoT device and/or IoT device interface, including:

    • usage restrictions

    • configuration requirements

    • connection requirements

    • manufacturer established requirement

  • Ability to enforce the established local and remote access requirements.

  • Ability to prevent external access to the IoT device management interface.

  • Ability to control the IoT device’s logical interface (e.g., locally or remotely).

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

N/A

AC-17
AC-19
AC-20

PR.AC-4: Access permissions and authorizations are managed, incorporating the principles of least privilege and separation of duties.

  • Ability to assign roles to IoT device user accounts.

  • Ability to support a hierarchy of logical access privileges for the IoT device based on roles (e.g., admin, emergency, user, local, temporary).

    • Ability to establish user accounts to support role-based logical access privileges.

    • Ability to administer user accounts to support role-based logical access privileges.

    • Ability to use organizationally defined roles to define each user account’s access and permitted device actions.

    • Ability to support multiple levels of user/process account nt functionality and roles for the IoT device.

  • Ability to apply least privilege to user accounts.

    • Ability to create additional processes, roles (e.g., admin, emergency, temporary) and accounts as necessary to achieve least privilege.

    • Ability to apply least privilege settings within the device (i.e., to ensure that the processes operate at privilege levels no higher than necessary to accomplish required functions).

    • Ability to limit access to privileged device settings that are used to establish and administer authorization requirements.

    • Ability for authorized users to access privileged settings.

  • Ability to create organizationally defined accounts that support privileged roles with automated expiration conditions.

  • Ability to enable automation and reporting of account management activities.

  • Ability to establish conditions for shared/group accounts on the IoT device.

  • Ability to administer conditions for shared/group accounts on the IoT device.

  • Ability to restrict the use of shared/group accounts on the IoT device according to organizationally defined conditions.

  • Ability to implement dynamic access control approaches (e.g., service-oriented architectures) that rely on:

    • run-time access control decisions facilitated by dynamic privilege management.

    • organizationally defined actions to access/use device.

  • Ability to allow information sharing capabilities based upon the type and/or role of the user attempting to share the information.

  • Ability to restrict access to IoT device software, hardware, and data based on user account roles, used with proper authentication of the identity of the user to determine type of authorization.

  • Ability to establish limits on authorized concurrent device sessions.

  • Ability to restrict updating actions to authorized entities.

  • Ability to restrict access to the cybersecurity state indicator to authorized entities.

  • Ability to revoke access to the IoT device.

  • Providing the tools, assistance, instructions, and other types of information to support establishing a hierarchy of role-based privileges within the IoT device.

  • Providing details about the specific types of manufacturer’s needs to access the IoT device interfaces, such as for specific support, updates, ongoing maintenance, and other purposes.

  • Providing documentation with instructions for the IoT device customer to follow for how to restrict interface connections that enable specific activities.

  • Providing descriptions of the types of access to the IoT device that the manufacturer will require on an ongoing or regular basis.

  • Providing detailed instructions for how to implement management and operational controls based on the role of the IoT device user, and not on an individual basis.

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing a detailed description of the other types of devices and systems that will access the IoT device during customer use of the device, and how they will access it.

  • Providing communications and detailed instructions for implementing a hierarchy of privilege levels to use with the IoT device and/or necessary associated information systems.

  • Providing communications and documentation detailing how to perform account management activities, using the technical IoT device capabilities, or through supporting systems and/or tools.

  • Providing education explaining how to establish and enforce approved authorizations for logical access to IoT device information and system resources.

  • Providing education explaining how to control access to IoT devices implemented within IoT device customer information systems.

  • Providing education explaining how to enforce authorized access at the system level.

  • Providing education and supporting materials explaining how to establish roles and responsibilities for IoT device data security, using the device capabilities and/or other services that communicate or interface with the device.

  • Providing education and supporting materials describing the IoT device capabilities for role-based controls, and how to establish different roles within the IoT device.

  • Providing education and supporting materials for how to establish roles to support IoT device policies, procedures, and associated documentation.

AC-2
AC-3
AC-5
AC-6
AC-14
AC-16
AC-24

PR.AC-7: Users, devices, and other assets are authenticated (e.g., single-factor, multi-factor) commensurate with the risk of the transaction (e.g., individuals’ security and privacy risks and other organizational risks).

  • Ability for the IoT device to require authentication prior to connecting to the device.

  • Ability for the IoT device to support a second, or more, authentication method(s) such as:

    • temporary passwords or other one-use log-on credentials

    • third-party credential checks

    • biometrics

    • hard tokens

  • Ability to authenticate external users and systems.

  • Ability to verify and authenticate any update before installing it.

  • Providing detailed instructions and guidance for establishing activities performed by the IoT device that do not require identification or authentication.

  • Providing documentation describing the specific IoT platforms used with the device to support required IoT authentication control techniques.

  • Providing documentation with details describing external authentication by IoT platforms and associated authentication methods that can be used with the IoT device.

AC-7
AC-8
AC-9
AC-12
AC-14
IA-2
IA-3
IA-4
IA-5
IA-8
IA-11

PR.DS-1: Data-at-rest is protected.

  • Ability to execute cryptographic mechanisms of appropriate strength and performance.

  • Ability to obtain and validate certificates.

  • Ability to perform authenticated encryption algorithms.

  • Ability to change keys securely.

  • Ability to generate key pairs.

  • Ability to store encryption keys securely.

  • Ability to cryptographically store passwords at rest, as well as device identity and other authentication data.

  • Ability to support data encryption and signing to prevent data from being altered in device storage.

  • Ability to secure data stored locally on the device.

  • Ability to secure data stored in remote storage areas (e.g., cloud, server).

  • Ability to utilize separate storage partitions for system and user data.

    • Ability to protect the audit informatition through mechanisms such as:

    • encryption

    • digitally signing audit files

    • securely sending audit files to another device

    • other protections created by the device manufacturer

  • Providing detailed instructions for how to implement management and operational controls for securely handling and retaining IoT device data, associated systems data, and data output from the IoT device.

  • Providing education describing how to securely handle and retain IoT device data, associated systems data, and data output from the IoT device to meet requirements of the IoT device customers’ organizational security policies, contractual requirements, applicable Federal laws, Executive Orders, directives, policies, regulations, standards, and other legal requirements.

SC-28
MP-2
MP-4
MP-5

PR.DS-6: Integrity checking mechanisms are used to verify software, firmware, and information integrity.

  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

SC-16
SI-7
MP-4
MP-5

PR.IP-4: Backups of information are conducted, maintained, and tested.

N/A

  • Providing education to IoT device customers covering the instructions and details necessary for them to create accurate backups and to recover the backups when necessary.

  • Providing education to IoT device customers that includes instructions describing how to back up data from systems where IoT device data is stored.

  • Providing awareness reminders and tips to IoT device customers (e.g., directly in person, in videos, in an online webinar) for various aspects involved with backing up the IoT device data.

CP-4
CP-9

PR.MA-1: Maintenance and repair of organizational assets are performed and logged, with approved and controlled tools.

N/A

  • Providing details about the types of, and situations that trigger, local and/or remote maintenance activities required once the device is purchased and deployed in the organization’s digital ecosystem or within an individual consumer’s home.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing other information and actions as necessary for physically securing, and securely using, the IoT device based upon the IoT device use, purpose, and other contextual factors related to the digital ecosystem(s) within which they are intended to be used.

  • Providing the details necessary for IoT device customers to implement only organizationally approved IoT device diagnostic tools within their system.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform. If such comprehensive IoT device maintenance operations documentation does not exist, the manufacturer should clearly communicate to IoT device customers that the user must perform these operations themselves.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing the details necessary to enable IoT device customers to monitor onsite and offsite IoT device maintenance activities.

  • Providing the details necessary to implement management and operational controls for IoT device maintenance personnel and associated authorizations, and record-keeping of maintenance organizations and personnel.

  • Providing communications describing the type and nature of the local and/or remote maintenance activities that will involve and require manufacturer personnel, or their contractors, once the device is purchased and deployed in the IoT device customer’s organization.

  • Providing IoT device customers with the details necessary to implement management and operational controls in support of their security policies and legal requirements for IoT device maintenance for assigned organizationally defined personnel or roles to follow.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing the details necessary for customers to document attempts to obtain IoT device components or IoT device information system service documentation when such documentation is either unavailable or nonexistent, and documenting the appropriate response for manufacturer employees, or supporting entities, to follow.

  • Providing a process for IoT device customers to contact the manufacturer to ask questions or obtain help related to the IoT device configuration settings.

  • Providing information to allow for in-house support from within the IoT device customer organization.

  • Providing education explaining how to inspect IoT device and/or use maintenance tools to ensure the latest software updates and patches are installed.

  • Providing education for how to scan for critical software updates and patches.

  • Providing education that explains the legal requirements governing IoT device maintenance responsibilities or how to meet specific types of legal requirements when using the IoT device.

MA-2
MA-3
MA-5
MA-6

PR.MA-2: Remote maintenance of organizational assets is approved, logged, and performed in a manner that prevents unauthorized access.

N/A

  • Providing details about the types of, and situations that trigger, local and/or remote maintenance activities required once the device is purchased and deployed in the organization’s digital ecosystem or within an individual consumer’s home.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing other information and actions as necessary for physically securing, and securely using, the IoT device based upon the IoT device use, purpose, and other contextual factors related to the digital ecosystem(s) within which they are intended to be used.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing the details necessary to enable IoT device customers to monitor onsite and offsite IoT device maintenance activities.

  • Providing the details necessary for maintaining records for nonlocal IoT device maintenance and diagnostic activities.

  • Providing the details necessary to implement management and operational controls for IoT device maintenance personnel and associated authorizations, and record-keeping of maintenance organizations and personnel.

  • Providing communications describing the type and nature of the local and/or remote maintenance activities that will involve and require manufacturer personnel, or their contractors, once the device is purchased and deployed in the IoT device customer’s organization.

  • Providing IoT device customers with the details necessary to implement management and operational controls in support of their security policies and legal requirements for IoT device maintenance for assigned organizationally defined personnel or roles to follow.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

MA-4

DE.AE-1: A baseline of network operations and expected data flows for users and systems is established and managed.

N/A

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

AC-4
CA-3
CM-2
SI-4

DE.AE-2: Detected events are analyzed to understand attack targets and methods.

N/A

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

AU-6
CA-7
IR-4
SI-4

DE.AE-3: Event data are collected and co rrelated from multiple sources and s ensors.

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

AU-6
AU-12
CA-7
IR-4
IR-5
SI-4

DE.CM-1: The information system and assets are monitored to identify cybersecurity events and verify the effectiveness of protective measures.

  • Ability to monitor specific actions based on the IoT device identity.

  • Ability to access information about the IoT device’s cybersecurity state and other necessary data.

  • Ability to monitor for organizationally defined cybersecurity events (e.g., expected state change) that may occur on or involving the IoT device.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities. (The device may be able to perform this check itself or provide the information necessary for an external process to check).

  • Ability to monitor communications traffic.

  • Providing information that describes the types of system monitoring information generated from, or associated with, the IoT device and instructions for obtaining that information.

  • Providing documentation describing the types of monitoring tools with which the IoT device is compatible, and recommendations for how to configure the IoT device to best work with such monitoring tools.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing how to perform monitoring activities.

AU-12
CA-7
CM-3
SC-7
SI-4

DE.CM-3: Personnel activity is monitored to detect potential cybersecurity events.

N/A

N/A

AC-2
AU-12
CA-7
CM-3
SC-5
SC-7
SI-4

DE.CM-7: Monitoring for unauthorized personnel, connections, devices, and software is performed.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities. (The device may be able to perform this check itself or provide the information necessary for an external process to check).

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

AC-2
AU-12
AU-13
CA-7
CM-10
CM-11

E.2 Device Capabilities Supporting Functional Test Scenarios

In this project, the focus was on the engineering workstations and not on the manufacturing components. It is acknowledged that many of the device cybersecurity capabilities may not be available in modern sensors and actuators and that other system elements (e.g., proxies, gateways) or other risk mitigation strategies (e.g., network segmentation) may be necessary.

Table E-2 builds on the functional test scenarios included in Section 5 of this document. The table lists both device cybersecurity capabilities and nontechnical supporting capabilities that map to relevant Cybersecurity Framework Subcategories for each of the functional test scenarios. If IoT devices are integrated into future efforts or a production ICS environment, selecting devices and/or third parties that provide these capabilities can help achieve the respective functional requirements.

It is acknowledged that IoT devices vary in their capabilities, and there may not be a clear delineation between the device cybersecurity capabilities that are provided by the IoT devices and those provided by another system component. It is also understood that the capabilities of cyber-physical components are evolving, so many of the mappings are not necessarily exact.

In this project, the focus was on the engineering workstations and not on the manufacturing components. It is acknowledged that many of the device cybersecurity capabilities may not be available in modern sensors and actuators and that other system elements (e.g., proxies, gateways) or other risk mitigation strategies (e.g., network segmentation) may be necessary.

Table E-2 Device Cybersecurity Capabilities and Nontechnical Supporting Capabilities that Map to Each of the Functional Test Scenarios

Scenario ID and Description with Cybersecurity Framework Subcategories

Device Cybersecurity Capabilities

Manufacturer Nontechnical Supporting Capabilities

Scenario 1: Protect Host from Malware via USB:

This test will demonstrate blocking the introduction of malware through physical access to a workstation within the manufacturing system.

PR .DS-6
PR .MA-2
DE .AE-2
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing the details necessary to enable IoT device customers to monitor onsite and offsite IoT device maintenance activities.

  • Providing communications describing the type and nature of the local and/or remote maintenance activities that will involve and require manufacturer personnel, or their contractors, once the device is purchased and deployed in the IoT device customer’s organization.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

Scenario 2: Protect Host from Malware via Network Vector

This test will demonstrate the detection of malware introduction from the network.

PR.DS-6
PR.MA-1
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 3: Protect Host from Malware via Remote Access Connections:

This test will demonstrate blocking malware attempting to infect manufacturing system through authorized remote access connections.

PR.AC-1
PR.AC-3
PR.AC-4
PR.AC-7
PR.MA-1
PR.MA-2
DE.CM-3
DE.CM-7
  • Ability to uniquely identify the IoT device logically.

  • Ability to uniquely identify a remote IoT device.

  • Ability for the device to support a unique device ID.

  • Ability to configure IoT device access control policies using IoT device identity.

  • Ability to verify the identity of an IoT device.

  • Ability to add a unique physical identifier at an external or internal location on the device authorized entities can access.

  • Ability to set and change authentication configurations, policies, and limitations settings for the IoT device.

  • Ability to revoke access to the device.

  • Ability to create unique IoT device user accounts.

  • Ability to identify unique IoT device user accounts.

  • Ability to create organizationally defined accounts that support privileged roles with automated expiration conditions.

  • Ability to configure IoT device access control policies using IoT device identity.

  • Ability to authenticate external users and systems.

  • Ability to securely interact with authorized external, third-party systems.

  • Ability to identify when an external system meets the required security requirements for a connection.

  • Ability to establish secure communications with internal systems when the device is operating on external networks.

  • Ability to establish requirements for remote access to the IoT device and/or IoT device interface.

  • Ability to enforce the established local and remote access requirements.

  • Ability to prevent external access to the IoT device management interface.

  • Ability to assign roles to IoT device user accounts.

  • Ability to support a hierarchy of logical access privileges for the IoT device based on roles.

  • Ability to apply least privilege to user accounts.

  • Ability to enable automation and reporting of account management activities.

  • Ability for the IoT device to require authentication prior to connecting to the device.

  • Ability for the IoT device to support a second, or more, authentication method(s).

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing details for how to establish unique identification for each IoT device associated with the system and critical system components within which it is used.

  • Providing communications and documentation detailing how to perform account management activities, using the technical IoT device capabilities, or through supporting systems and/or tools.

  • Providing the details necessary to establish and implement unique identification for each IoT device associated with the system and critical system components within which it is used.

  • Providing the tools, assistance, instructions, and other types of information to support establishing a hierarchy of role-based privileges within the IoT device.

  • Providing details about the specific types of manufacturer’s needs to access the IoT device interfaces, such as for specific support, updates, ongoing maintenance, and other purposes.

  • Providing education explaining how to control access to IoT devices implemented within IoT device customer information systems.

  • Providing education explaining how to enforce authorized access at the system level.

  • Providing detailed instructions and guidance for establishing activities performed by the IoT device that do not require identification or authentication.

  • Providing documentation describing the specific IoT platforms used with the device to support required IoT authentication control techniques.

  • Providing documentation with details describing external authentication by IoT platforms and associated authentication methods that can be used with the IoT device.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing details about the types of, and situations that trigger, local and/or remote maintenance activities required once the device is purchased and deployed in the organization’s digital ecosystem or within an individual consumer’s home.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 4: Protect Host from Unauthorized Application Installa tion:

This test will demonstrate blocking the installation and execution of unauthorized applications on workstation in the manufacturing system.

PR.DS-6
PR.MA-1
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 5: Protect from Unauthorized Addition of a Device:

This test will demonstrate the detection of an unauthorized device connecting to the manufacturing system.

PR.DS-6
PR.MA-1
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 6: Detect Unauthorized Device-t o-Device Communicat ions:

This test will demonstrate the detection of unauthorized communications between devices.

PR.DS-6
PR.MA-1
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 7: Protect from Unauthorized Modification and Deletion of Files:

This test will demonstrate protection of files from unauthorized deletion both locally and on network file share.

PR.DS-1
PR.DS-6
PR.IP-4
PR.MA-1
DE.AE-2
  • Ability to execute cryptographic mechanisms of appropriate strength and performance.

  • Ability to obtain and validate certificates.

  • Ability to change keys securely.

  • Ability to generate key pairs.

  • Ability to store encryption keys securely.

  • Ability to cryptographically store passwords at rest, as well as device identity and other authentication data.

  • Ability to support data encryption and signing to prevent data from being altered in device storage.

  • Ability to secure data stored locally on the device.

  • Ability to secure data stored in remote storage areas (e.g., cloud, server).

  • Ability to utilize separate storage partitions for system and user data.

  • Ability to protect the audit information through mechanisms such as:

  • encryption

  • digitally signing audit files

  • securely sending audit files to another device

  • other protections created by the device manufacturer

  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Providing detailed instructions for how to implement management and operational controls for securely handling and retaining IoT device data, associated systems data, and data output from the IoT device.

  • Providing education describing how to securely handle and retain IoT device data, associated systems data, and data output from the IoT device to meet requirements of the IoT device customers’ organizational security policies, contractual requirements, applicable Federal laws, Executive Orders, directives, policies, regulations, standards, and other legal requirements.

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing education to IoT device customers covering the instructions and details necessary for them to create accurate backups and to recover the backups when necessary.

  • Providing education to IoT device customers that includes instructions describing how to back up data from systems where IoT device data is stored.

  • Providing awareness reminders and tips to IoT device customers (e.g., directly in person, in videos, in an online webinar) for various aspects involved with backing up the IoT device data.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

Scenario 8: Detect Unauthorized Modification of PLC Logic:

This test will demonstrate the detection of PLC logic modification.

PR.AC-3
PR.AC-7
PR.DS-6
PR.MA-1
PR.MA-2
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to configure IoT device access control policies using IoT device identity.

  • Ability to authenticate external users and systems.

  • Ability to securely interact with authorized external, third-party systems.

  • Ability to identify when an external system meets the required security requirements for a connection.

  • Ability to establish secure communications with internal systems when the device is operating on external networks.

  • Ability to establish requirements for remote access to the IoT device and/or IoT device interface.

  • Ability to enforce the established local and remote access requirements.

  • Ability to prevent external access to the IoT device management interface.

  • Ability for the IoT device to require authentication prior to connecting to the device.

  • Ability for the IoT device to support a second, or more, authentication method(s).

  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing detailed instructions and guidance for establishing activities performed by the IoT device that do not require identification or authentication.

  • Providing documentation describing the specific IoT platforms used with the device to support required IoT authentication control techniques.

  • Providing documentation with details describing external authentication by IoT platforms and associated authentication methods that can be used with the IoT device.

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing the details necessary to enable IoT device customers to monitor onsite and offsite IoT device maintenance activities.

  • Providing communications describing the type and nature of the local and/or remote maintenance activities that will involve and require manufacturer personnel, or their contractors, once the device is purchased and deployed in the IoT device customer’s organization.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 9: Protect from Modification of Historian Data:

This test will demonstrate the blocking of modification of historian archive data.

PR.DS-6
PR.MA-1
DE.AE-2
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

Scenario 10: Detect Sensor Data Manipulation:

This test will demonstrate detection of atypical data reported to the historian.

PR.IP-4
PR.DS-6
PR.MA-1
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing education to IoT device customers covering the instructions and details necessary for them to create accurate backups and to recover the backups when necessary.

  • Providing education to IoT device customers that includes instructions describing how to back up data from systems where IoT device data is stored.

  • Providing awareness reminders and tips to IoT device customers (e.g., directly in person, in videos, in an online webinar) for various aspects involved with backing up the IoT device data.

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.

Scenario 11: Detect Unauthorized Firmware Modification:

This test will demonstrate the detection of device firmware modification

PR.DS-6
PR.MA-1
DE.AE-1
DE.AE-2
DE.AE-3
DE.CM-1
DE.CM-3
DE.CM-7
  • Ability to identify software loaded on the IoT device based on IoT device identity.

  • Ability to verify digital signatures.

  • Ability to run hashing algorithms.

  • Ability to perform authenticated encryption algorithms.

  • Ability to compute and compare hashes.

  • Ability to utilize one or more capabilities to protect transmitted data from unauthorized access and modification.

  • Ability to validate the integrity of data transmitted.

  • Ability to verify software updates come from valid sources by using an effective method (e.g., digital signatures, checksums, certificate validation).

  • Ability to verify and authenticate any update before installing it.

  • Ability to store the operating environment (e.g., firmware image, software, applications) in read-only media (e.g., Read Only Memory).

  • Ability to provide a physical indicator of sensor use.

  • Ability to send requested audit logs to an external audit process or information system (e.g., where its auditing information can be checked to allow for review, analysis, and reporting).

  • Ability to keep an accurate internal system time.

  • Ability to support a monitoring process to check for disclosure of organizational information to unauthorized entities.

  • Ability to monitor changes to the configuration settings.

  • Ability to detect remote activation attempts.

  • Ability to detect remote activation of sensors.

  • Ability to take organizationally defined actions when unauthorized hardware and software components are detected (e.g., disallow a flash drive to be connected even if a Universal Serial Bus [USB] port is present).

  • Providing documentation and/or other communications describing how to implement management and operational controls to protect data obtained from IoT devices and associated systems from unauthorized access, modification, and deletion.

  • Providing communications to IoT device customers describing how to implement management and operational controls to protect IoT device data integrity and associated systems data integrity.

  • Providing IoT device customers with the details necessary to support secure implementation of the IoT device and associated systems data integrity controls.

  • Providing IoT device customers with documentation describing the data integrity controls built into the IoT device and how to use them. If there are no data integrity controls built into the IoT device, include documentation explaining to IoT device customers the ways to achieve IoT device data integrity.

  • Providing details for how to review and update the IoT device and associated systems while preserving data integrity.

  • Providing instructions and documentation describing the physical and logical access capabilities necessary to the IoT device to perform each type of maintenance activity.

  • Providing detailed documentation describing the tools manufacturers require for IoT device diagnostics activities.

  • Providing the details and instructions to perform necessary IoT device maintenance activities and repairs.

  • Providing communications and comprehensive documentation describing the IoT device maintenance operations performed by the manufacturer and the manufacturer’s supporting entities.

  • Providing communications and comprehensive documentation describing maintenance operations that the IoT device customer is required to perform.

  • Providing communications that include details for the recommended events that will trigger IoT device system reviews and/or maintenance by the manufacturer.

  • Providing communications and documentation detailing how to perform recommended local and/or remote maintenance activities.

  • Providing documented descriptions of the specific maintenance procedures for defined maintenance tasks.

  • Providing education for how to scan for critical software updates and patches.

  • Providing documentation describing how to implement and securely deploy monitoring devices and tools for IoT devices and associated systems.

  • Providing documentation describing IoT device behavior indicators that could occur when an attack is being launched.

  • Providing documentation describing the types of usage and environmental systems data that can be collected from the IoT device.

  • Providing appropriate tools, assistance, instructions, or other details describing the capabilities for monitoring the IoT device and/or for the IoT device customer to report actions to the monitoring service of the manufacturer’s supporting entity.

  • Providing the details necessary to monitor IoT devices and associated systems.

  • Providing documentation describing details necessary to identify unauthorized use of IoT devices and their associated systems.

  • Providing documentation that describes indicators of unauthorized use of the IoT device.
